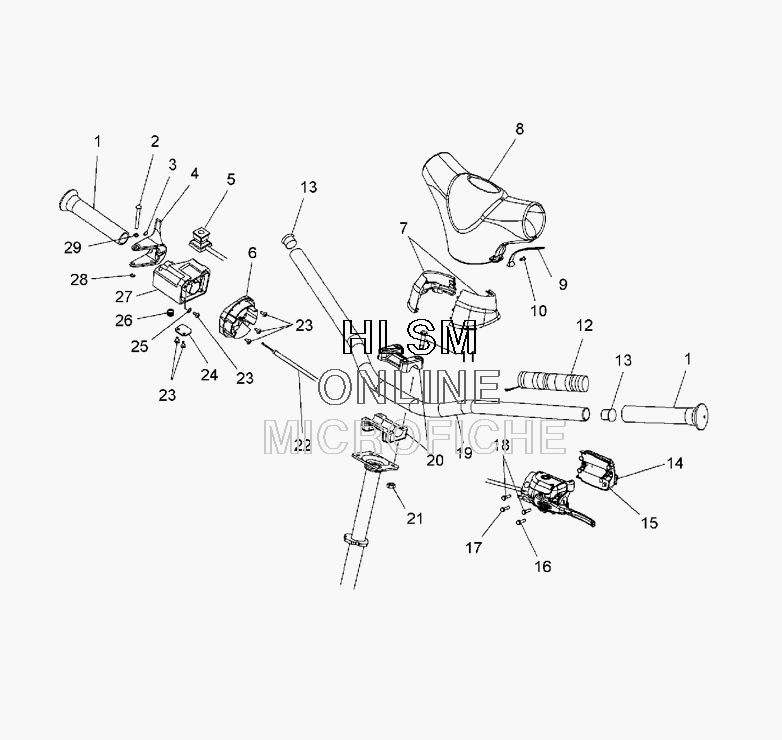

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris TRAIL RMK FLEET (S09NJ5BSF) - 2009 года выпуска
-
№АртикулНазвание
-
15432634 GRIP,HANDLEBARGRIP,HANDLEBAR
-
27661624 PIN-RETAININGPIN-RETAINING
-
37710503 RING,RETAININGRING,RETAINING
-
45432970 THROTTLE,LEVER,35.5MMTHROTTLE,LEVER,35.5MM
-
42010171 ASM.,LEVER,HTR,HI/LO 35.5MMASM.,LEVER,HTR,HI/LO 35.5MM
-
54110106 SWITCH,AUXILIARY SHUT-OFFSWITCH,AUXILIARY SHUT-OFF
-
65433345 ADAPTER-BLOCK,THROTTLEADAPTER-BLOCK,THROTTLE
-
75434145 COLLAR-CONSOLE,FWD, LEFT HANDCOLLAR-CONSOLE,FWD, LEFT HAND
-
75434146 COLLAR-CONSOLE,FWD, RIGHT HANDCOLLAR-CONSOLE,FWD, RIGHT HAND
-
85436562-070 COVER-HANDLEBAR,CR, BLACKCOVER-HANDLEBAR,CR, BLACK
-
95433160-070 SLIDE-HANDLEBAR COVER, BLACKSLIDE-HANDLEBAR COVER, BLACK
-
104010287 CLIP,DART NYLON, BLACKCLIP,DART NYLON, BLACK
-
117517238 SCREWSCREW
-
122410812 HEATER-GRIP,LO/MED/HIHEATER-GRIP,LO/MED/HI
-
135431096 PLUGPLUG
-
145433291 BUTTON SWITCH HI/LO, LEFT HAND CONTROLBUTTON SWITCH HI/LO, LEFT HAND CONTROL
-
152010206 ASM-CONTROL, LEFT HAND,E/R,BASICASM-CONTROL, LEFT HAND,E/R,BASIC
-
167517566 SCREW, 1.50SCREW, 1.50
-
177512078 SCREW, 1.12SCREW, 1.12
-
187517441 SCREW, .75SCREW, .75
-
191820666-067 HANDLEBAR, BLACKHANDLEBAR, BLACK
-
205630187-067 BLOCK,HANDLEBAR, BLACKBLOCK,HANDLEBAR, BLACK
-
217542122 NUT-NYLOKNUT-NYLOK
-
227081173 CABLE-THROTTLECABLE-THROTTLE
-
237511848 SCREWSCREW
-
245432261 HOLDER-WIREHOLDER-WIRE
-
257555727 WASHERWASHER
-
267512465 SCREW,SETSCREW,SET
-
275431592 BLOCK,THROTTLE/BRAKEBLOCK,THROTTLE/BRAKE
-
287710401 RING,RETAININGRING,RETAINING
-
297555730 WASHERWASHER
