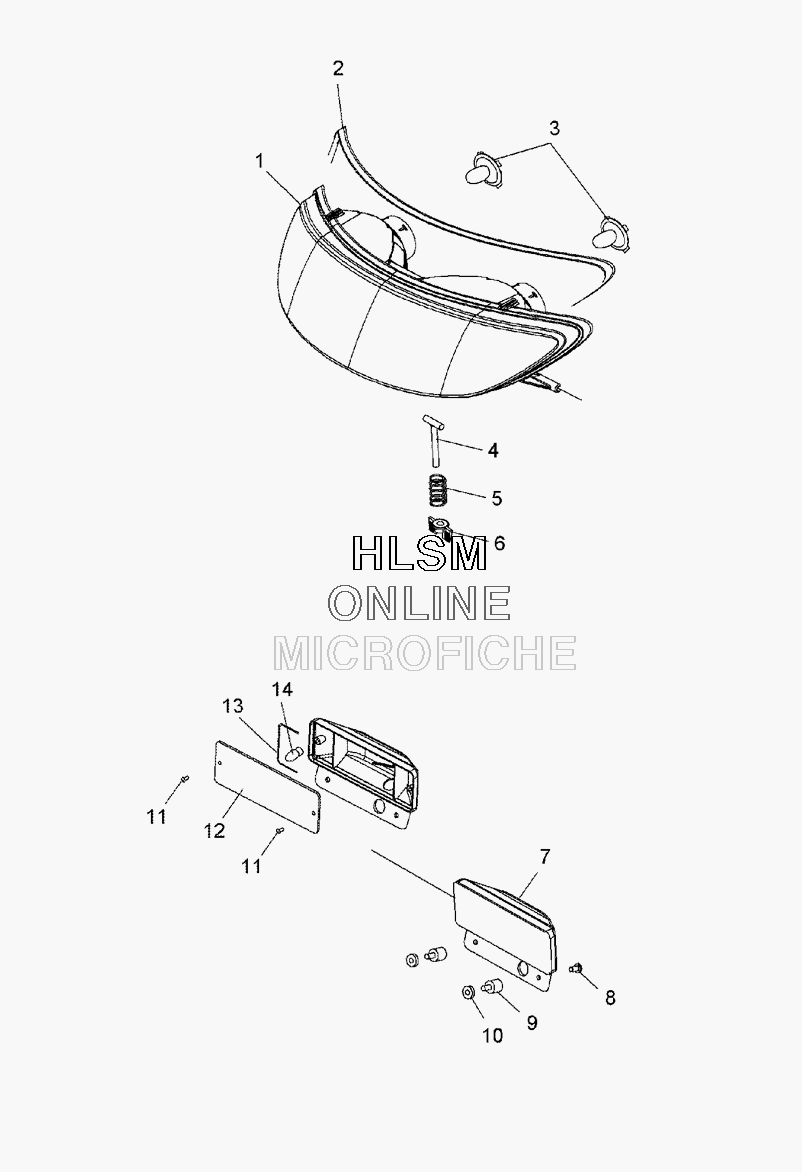

HEADLIGHT AND TAILLIGHT для Polaris TRAIL RMK FLEET (S09NJ5BSF) - 2009 года выпуска
-
№АртикулНазвание
-
12410132 ASM.,HEADLAMP,2-BULBASM.,HEADLAMP,2-BULB
-
25812450 SEAL-HEADLIGHT,ONE PIECESEAL-HEADLIGHT,ONE PIECE
-
32870448 BULB,QUARTZ.H/L H4,60/55WBULB,QUARTZ.H/L H4,60/55W
-
34032063 RETAINER,H/L BULBRETAINER,H/L BULB
-
47517872 BOLT-TEE ADJUSTER,2.25BOLT-TEE ADJUSTER,2.25
-
57041954 SPRING-HEADLIGHT ADJUSTSPRING-HEADLIGHT ADJUST
-
67080887 KNOB,HEADLIGHT,ADJUST,LOCKINGBKNOB,HEADLIGHT,ADJUST,LOCKINGB
-
72410307 ASM-TAILLIGHTASM-TAILLIGHT
-
87515140 SCREWSCREW
-
93021186 MOUNT,RUBBER,DURO 55MOUNT,RUBBER,DURO 55
-
107555916 WASHER,NYLONWASHER,NYLON
-
117518019 SCREW-10X.5 PH PN/HI-LOW 2BLACKSCREW-10X.5 PH PN/HI-LOW 2BLACK
-
124032014 LENSLENS
-
134032015 GASKETGASKET
-
144030043 BULBBULB
