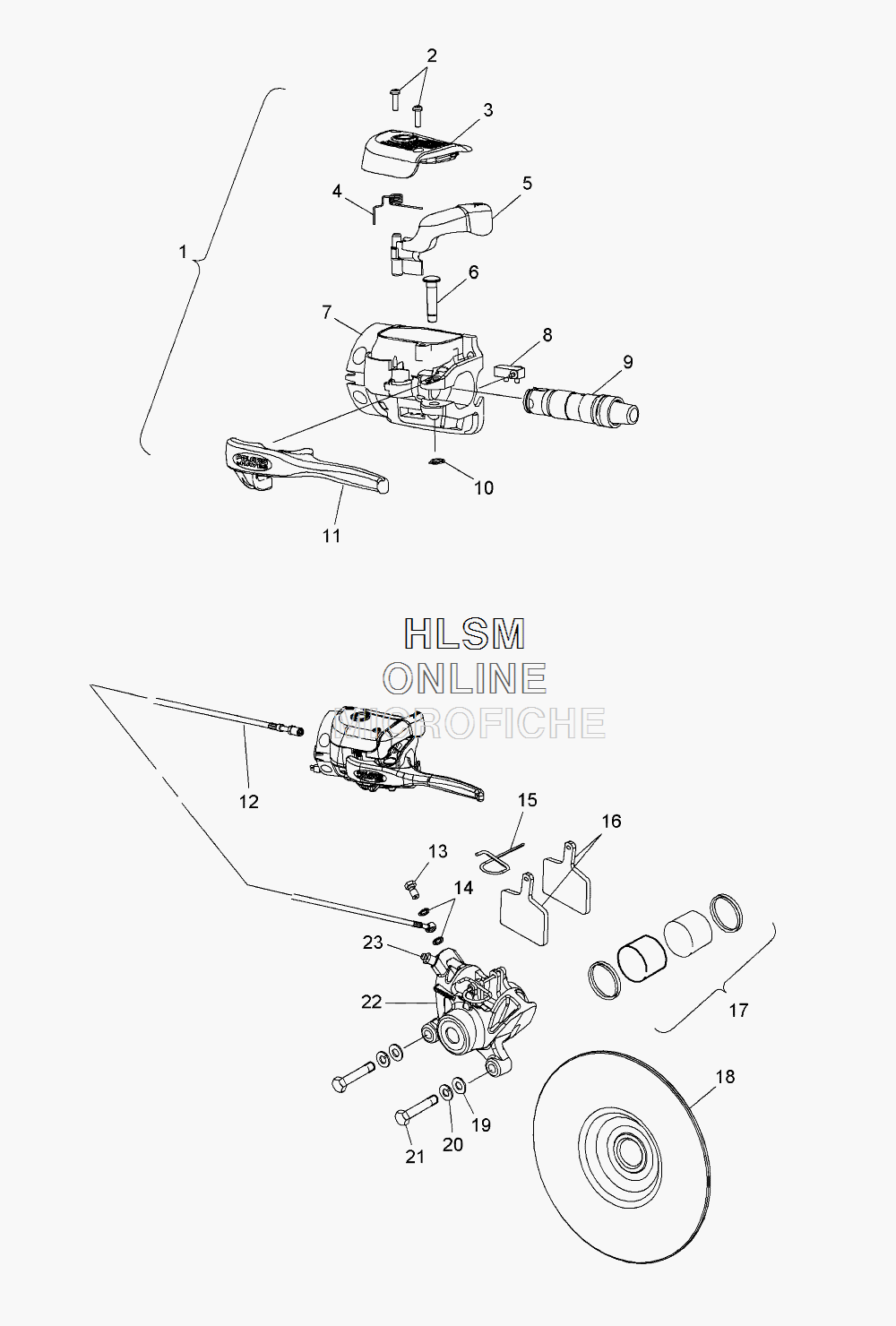

BRAKES- BRAKE SYSTEM для Polaris 600 DRAGON SWITCHBACK (2010) [S10PS6] - 2010 года выпуска
-
№АртикулНазвание
-
12203489 KIT, FULL ASM. (INCL. 2-4,7,9-11)KIT, FULL ASM. (INCL. 2-4,7,9-11)
-
22201254 KIT, COVER SCREWKIT, COVER SCREW
-
32202837 KIT, COVER ASSEMBLY (INCL. 2, GASKET)KIT, COVER ASSEMBLY (INCL. 2, GASKET)
-
42201250 KIT, PARK LEVER SPRINGKIT, PARK LEVER SPRING
-
52201251 KIT, PARK LEVER AND SPRINGKIT, PARK LEVER AND SPRING
-
62201946 KIT, PIVOT PIN W/SNAP RING (INCL. 10)KIT, PIVOT PIN W/SNAP RING (INCL. 10)
-
72202784 KIT, RESERVOIR (INCL. 6,10)KIT, RESERVOIR (INCL. 6,10)
-
82203182 KIT, SWITCH, STOPLIGHTKIT, SWITCH, STOPLIGHT
-
92203486 KIT, CARTRIDGEKIT, CARTRIDGE
-
102201945 KIT, SNAP RINGKIT, SNAP RING
-
112201943 KIT, LEVER (INCL. 6,10)KIT, LEVER (INCL. 6,10)
-
122202929 KIT, HOSEKIT, HOSE
-
132203392 KIT, BANJOKIT, BANJO
-
142203393 KIT, WASHER (2 PER)KIT, WASHER (2 PER)
-
152202206 KIT, PIN RETAININGKIT, PIN RETAINING
-
162202727 KIT, BRAKE PAD, TYPE 94 (INCL. 15)KIT, BRAKE PAD, TYPE 94 (INCL. 15)
-
172202207 KIT, PISTON/SEALKIT, PISTON/SEAL
-
172202204 KIT, SEALKIT, SEAL
-
182203712 KIT, SERVICE DISC, SAWTOOTHKIT, SERVICE DISC, SAWTOOTH
-
197556160 WASHERWASHER
-
207552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
217515534 SCREWSCREW
-
222202742 KIT, ASM., BRAKE CALIPERKIT, ASM., BRAKE CALIPER
-
232202205 KIT, BLEEDER FITTINGKIT, BLEEDER FITTING
