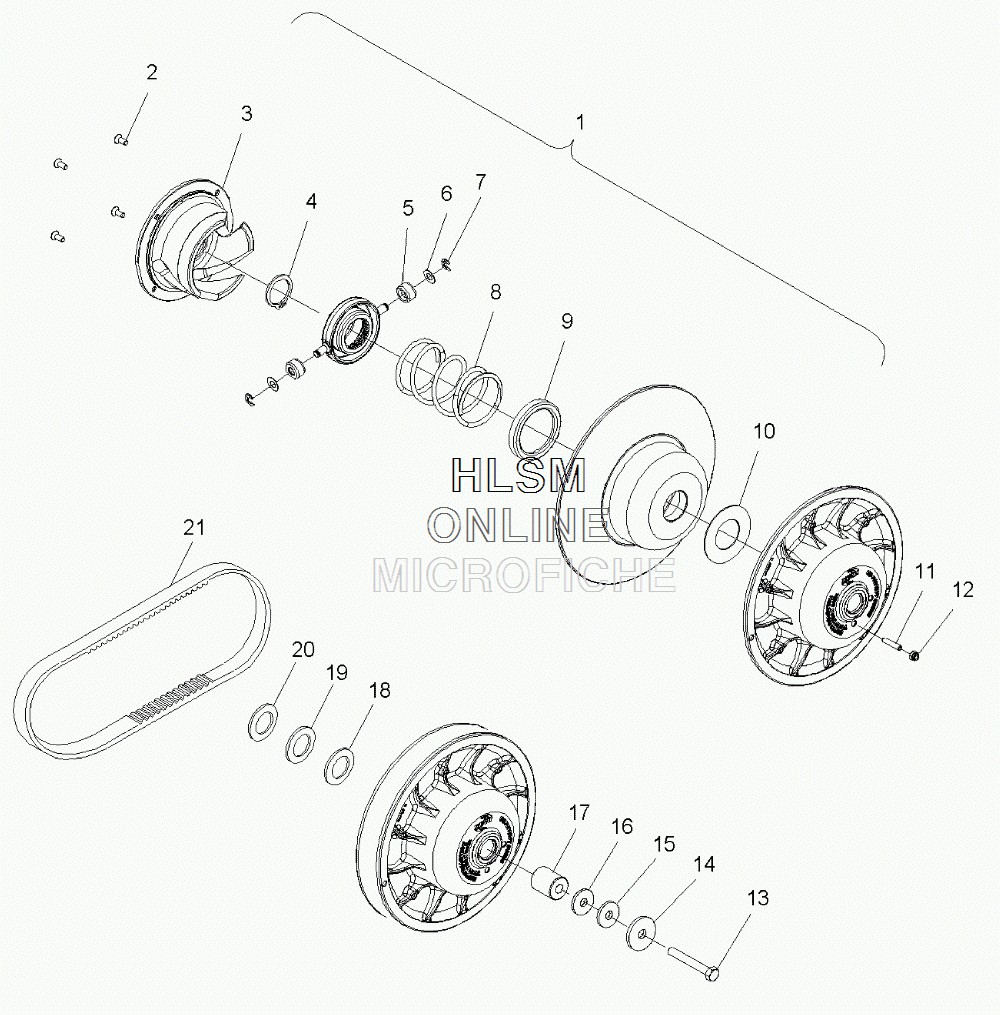

DRIVE TRAIN- CLUTCH- SECONDARY для Polaris 600 DRAGON SWITCHBACK (2010) [S10PS6] - 2010 года выпуска
-
№АртикулНазвание
-
11322643 ASM., DRIVEN CLUTCH, BASIC, LWT SPLWD (INCL. 4-6,9-12)ASM., DRIVEN CLUTCH, BASIC, LWT SPLWD (INCL. 4-6,9-12)
-
23234381 SCREWSCREW
-
35135401 RAMP, DRIVEN 64/42/36RAMP, DRIVEN 64/42/36
-
47710583 RING, RETAININGRING, RETAINING
-
55434534 ROLLERROLLER
-
67556226 WASHER, THRUSTWASHER, THRUST
-
77710523 E-RING, RETAININGE-RING, RETAINING
-
87043058 SPRING, DRIVEN CLUTCH (RED/BLACK) LEFT HANDSPRING, DRIVEN CLUTCH (RED/BLACK) LEFT HAND
-
97556227 WASHER, THRUSTWASHER, THRUST
-
107556370 WASHERWASHER
-
113234228 SCREWSCREW
-
127542103 NUT, FLEXLOCNUT, FLEXLOC
-
137515369 SCREWSCREW
-
147555701 WASHER, FLATWASHER, FLAT
-
157555734 WASHER, FLATWASHER, FLAT
-
167555957 WASHERWASHER
-
175135611 SPACER, INPUT SHAFTSPACER, INPUT SHAFT
-
187555917 WASHERWASHER
-
197555864 WASHERWASHER
-
207556509 BUSHINGBUSHING
-
213211122 BELT, DRIVEBELT, DRIVE
