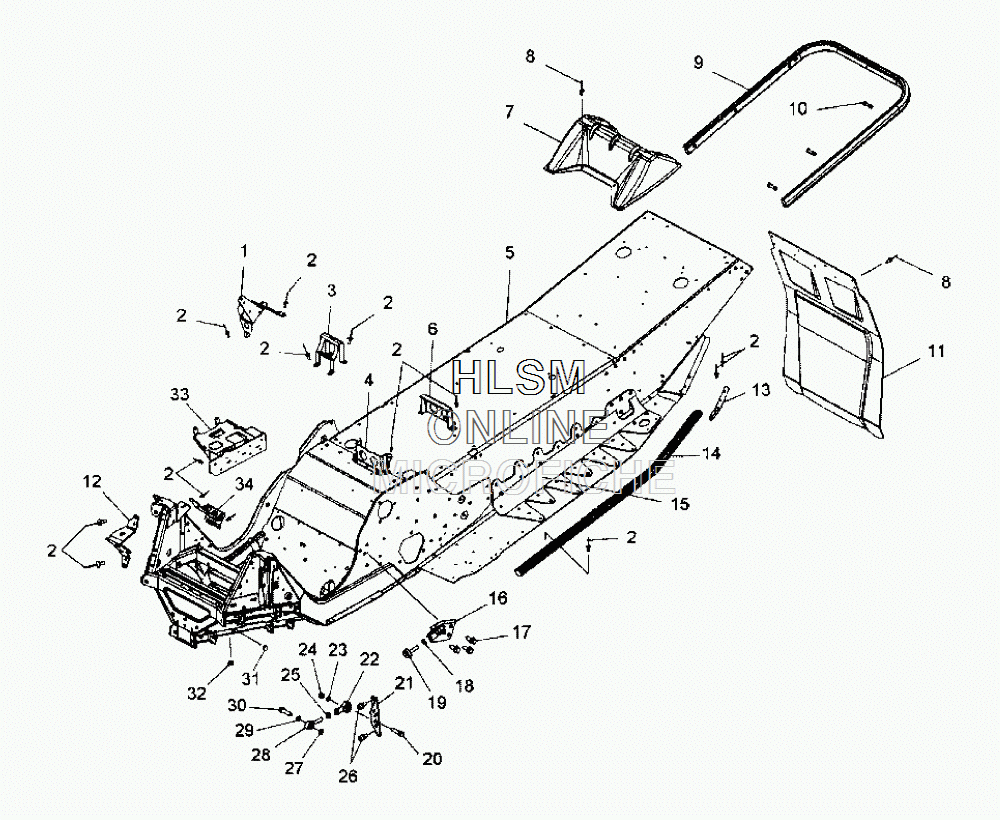

CHASSIS- ASM. для Polaris 600 IQ RACER (2010) [S10MX6JEA] - 2010 года выпуска
-
№АртикулНазвание
-
15251380 BRACKET, CDIBRACKET, CDI
-
27661637 RIVETRIVET
-
35248960 BRACKET, MOUNT, AIRBOXBRACKET, MOUNT, AIRBOX
-
45251253 BRACKET, TANK HOLDDOWN, FRONTBRACKET, TANK HOLDDOWN, FRONT
-
51015999-309 ASM., CHASSIS (INCL. STEERING HOOP)ASM., CHASSIS (INCL. STEERING HOOP)
-
65249550 BRACKET, TANK HOLDDOWN, REARBRACKET, TANK HOLDDOWN, REAR
-
75435802 COVER, HOSE, PROTECTORCOVER, HOSE, PROTECTOR
-
87621472 RIVETRIVET
-
92633606-309 ASM., BUMPER, REAR, (NATURAL)ASM., BUMPER, REAR, (NATURAL)
-
107518836 SCREWSCREW
-
115436556-070 FLAP, SNOW, (BLACK)FLAP, SNOW, (BLACK)
-
125251395 BRACKET, CHASSIS/PIPEBRACKET, CHASSIS/PIPE
-
135248509 TUBE, TUNNEL REINFORCEMENT, REARTUBE, TUNNEL REINFORCEMENT, REAR
-
145134494 GRIP, TUNNEL, LEFT HANDGRIP, TUNNEL, LEFT HAND
-
145134495 GRIP, TUNNEL, RIGHT HANDGRIP, TUNNEL, RIGHT HAND
-
155248210 BRACE, TUNNEL, FISHBONE, LEFT HANDBRACE, TUNNEL, FISHBONE, LEFT HAND
-
155248211 BRACE, TUNNEL, FISHBONE, RIGHT HANDBRACE, TUNNEL, FISHBONE, RIGHT HAND
-
161015826 STOP, TORQUESTOP, TORQUE
-
177517854 SCREWSCREW
-
187542414 NUT, HEXNUT, HEX
-
193021354 STOP, TORQUE, COURSESTOP, TORQUE, COURSE
-
207512404 BOLTBOLT
-
215251323 BRACKET, TORQUE LIMITERBRACKET, TORQUE LIMITER
-
223021411 LIMITER, TORQUELIMITER, TORQUE
-
237555823 WASHERWASHER
-
247542439 NUT, NYLOKNUT, NYLOK
-
257542401 NUT, HEX, RIGHT HANDNUT, HEX, RIGHT HAND
-
267516730 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
277555797 WASHER, FLATWASHER, FLAT
-
287060167 ROD END, RIGHT HANDROD END, RIGHT HAND
-
297552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
307515521 BOLTBOLT
-
317080416 PLUG, HOLEPLUG, HOLE
-
327081210 PLUG, TUBEPLUG, TUBE
-
331016241-329 BRACKET, CHASSIS/RESONATOR, (BLACK)BRACKET, CHASSIS/RESONATOR, (BLACK)
-
345252208 BRACKET, CHASSIS/RESONATORBRACKET, CHASSIS/RESONATOR
