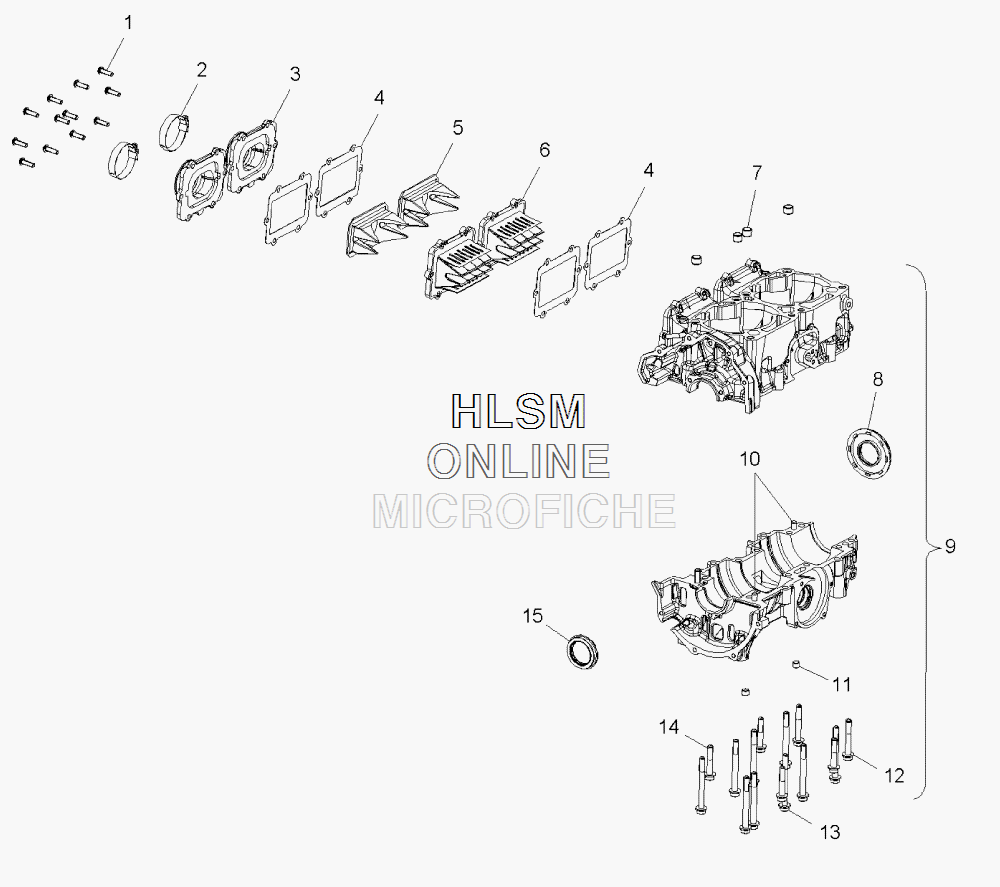

CRANKCASE для Polaris 600 IQ RACER (2010) [S10MX6JEA] - 2010 года выпуска
-
№АртикулНазвание
-
17518616 SCREWSCREW
-
27080681 CLAMP, HOSECLAMP, HOSE
-
31203885 ADAPTORADAPTOR
-
45813068 GASKET, REED VALVEGASKET, REED VALVE
-
55437261 STUFFER, REEDSTUFFER, REED
-
61203658 ASM., REED VALVEASM., REED VALVE
-
77663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
85411394 SEAL, FLANGED W/STANDOFFSEAL, FLANGED W/STANDOFF
-
92203989 KIT, CRANKCASE (INCL. 7,8,11-15)KIT, CRANKCASE (INCL. 7,8,11-15)
-
107663001 PIN, DOWELPIN, DOWEL
-
117052337 PLUGPLUG
-
127517785 BOLTBOLT
-
137517784 BOLTBOLT
-
147517786 BOLTBOLT
-
155412798 SEAL, FLANGED, MAGSEAL, FLANGED, MAG
