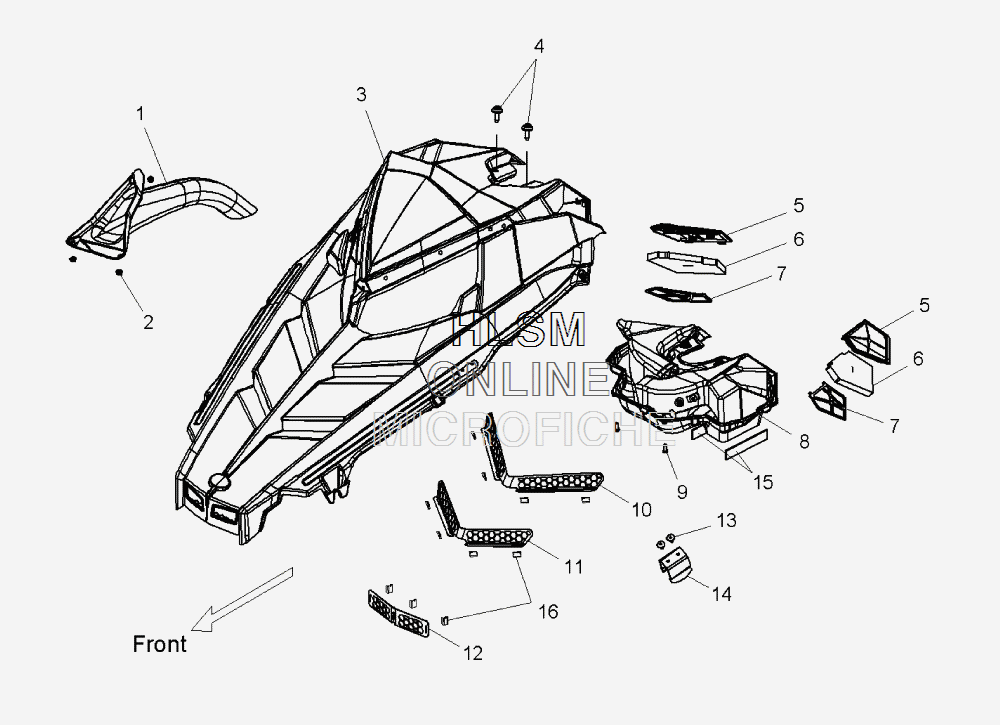

BODY- HOOD ASM. для Polaris 600 PRO-RIDE RUSH (2010) [S10BF6KEA] - 2010 года выпуска
-
№АртикулНазвание
-
15437519 DUCT, BRAKEDUCT, BRAKE
-
27670135 NUT, SPEEDNUT, SPEED
-
35437509-070 HOOD, MOLDED, (BLACK) (ALSO ORDER 2633940)HOOD, MOLDED, (BLACK) (ALSO ORDER 2633940)
-
32633940 KIT, HOOD FOAM/FABRICKIT, HOOD FOAM/FABRIC
-
47519112 SCREWSCREW
-
55437835 VENT, INTAKE, LEFT HANDVENT, INTAKE, LEFT HAND
-
55437836 VENT, INTAKE, RIGHT HANDVENT, INTAKE, RIGHT HAND
-
65813407 FOAM, FILTER INLETFOAM, FILTER INLET
-
75813467 BRACKET, INTAKE VENTBRACKET, INTAKE VENT
-
82633701 ASM., PLENUM, INTAKE (INCL. 15)ASM., PLENUM, INTAKE (INCL. 15)
-
97517441 SCREWSCREW
-
105252666-067 SCREEN, HOOD CENTER, REAR, (BLACK)SCREEN, HOOD CENTER, REAR, (BLACK)
-
115252665-067 SCREEN, HOOD CENTER, MIDDLE, (BLACK)SCREEN, HOOD CENTER, MIDDLE, (BLACK)
-
125252664-067 SCREEN, HOOD CENTER, FRONT, (BLACK)SCREEN, HOOD CENTER, FRONT, (BLACK)
-
137621467 RIVETRIVET
-
145222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
155810290 PAD, BATTERYPAD, BATTERY
-
167670040 FASTENER, U-TYPE CLIPFASTENER, U-TYPE CLIP
