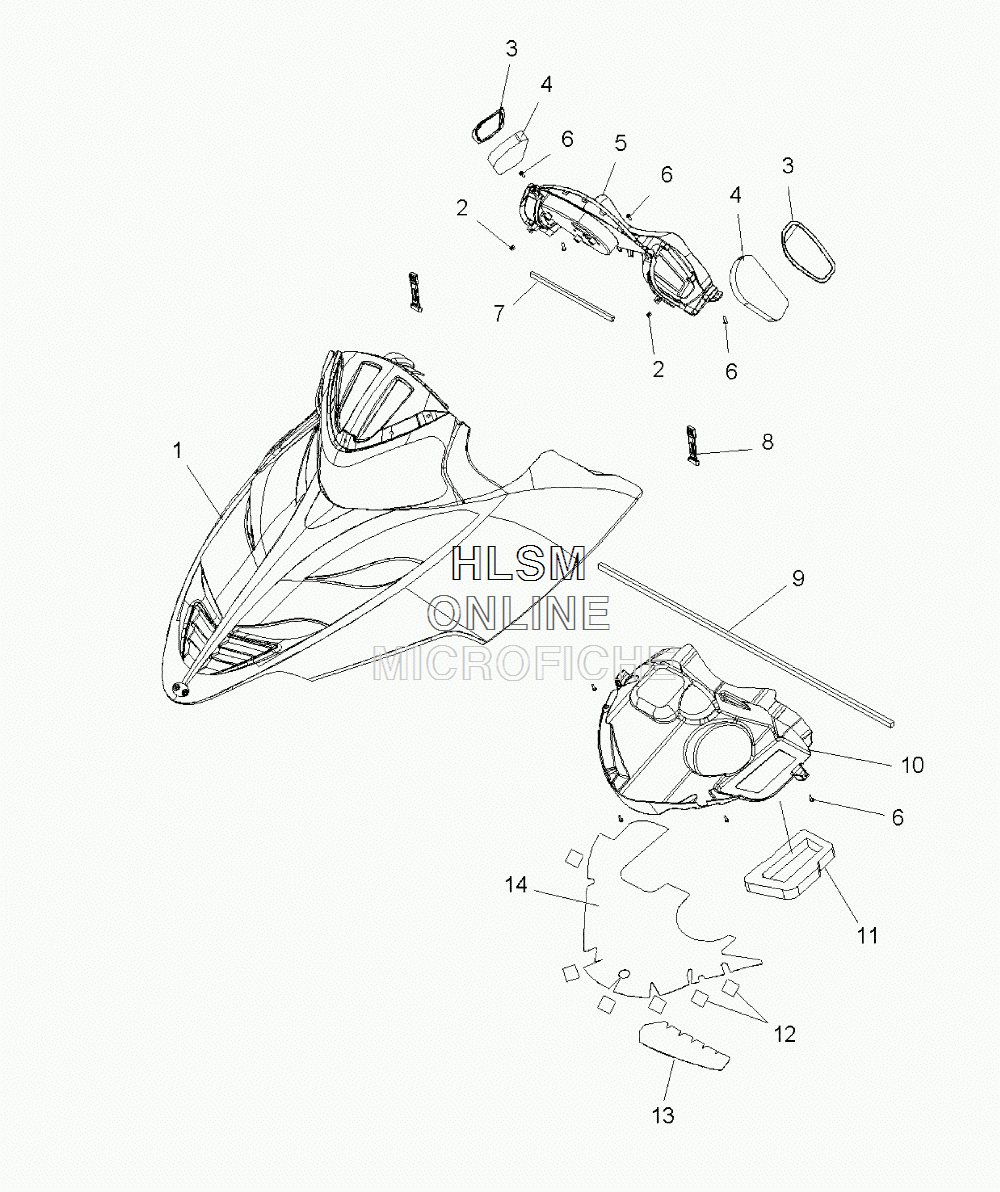

BODY- HOOD ASM. для Polaris FS WIDETRAK IQ/INTL (2010) [S10PU7ESL] - 2010 года выпуска
-
№АртикулНазвание
-
15437038-241 HOOD, IQ FS, BRIGHT WHITE (NO FOAM/FOIL/DECALS)HOOD, IQ FS, BRIGHT WHITE (NO FOAM/FOIL/DECALS)
-
27670112 NUT, U-TYPENUT, U-TYPE
-
35437371 VENT, INTAKE, LEFT HANDVENT, INTAKE, LEFT HAND
-
35437372 VENT, INTAKE, RIGHT HANDVENT, INTAKE, RIGHT HAND
-
45813248 FOAM, FILTER, INLETFOAM, FILTER, INLET
-
55437049-070 POD, INSTRUMENT (BLACK)POD, INSTRUMENT (BLACK)
-
67518577 SCREWSCREW
-
75521697-350 SEAL, BULBSEAL, BULB
-
85433150 STRAPSTRAP
-
95812782 FOAM, SEALFOAM, SEAL
-
102633760 ASM., COVER, HEADLIGHT ACCESS (INCL. 9,11,13,14)ASM., COVER, HEADLIGHT ACCESS (INCL. 9,11,13,14)
-
115812777 FOAM, INTAKE COVERFOAM, INTAKE COVER
-
125813349 FABRIC, PATCH, 1.5X1.5FABRIC, PATCH, 1.5X1.5
-
135813348 FABRIC, HEADLIGHT ACCESS COVER, SMALLFABRIC, HEADLIGHT ACCESS COVER, SMALL
-
145813347 FABRIC, HEADLIGHT ACCESS COVERFABRIC, HEADLIGHT ACCESS COVER
