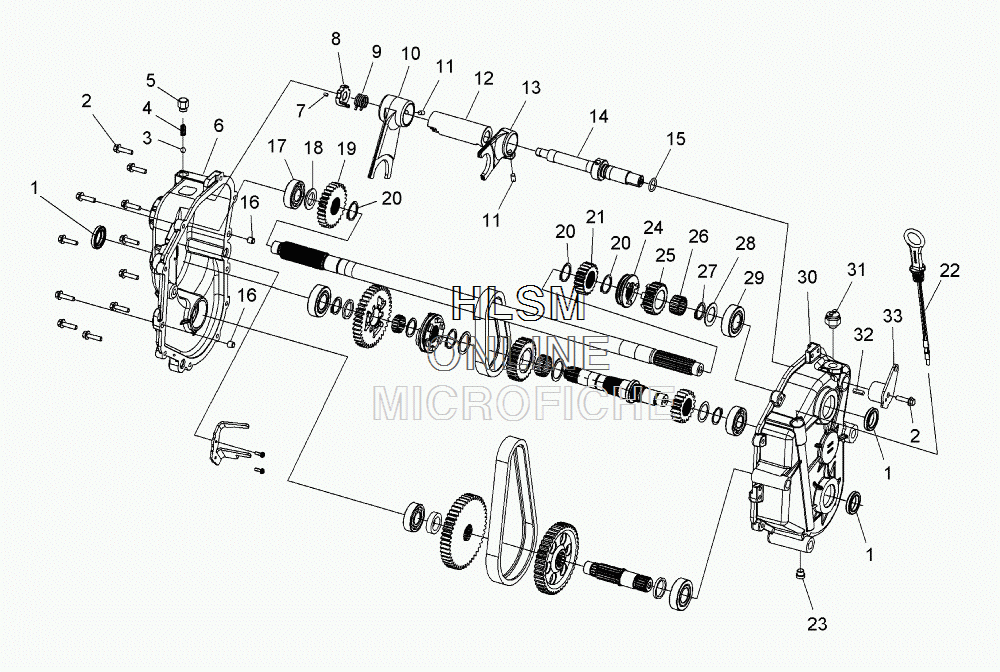

DRIVE TRAIN- GEARCASE (1 OF 2) для Polaris FS WIDETRAK IQ/INTL (2010) [S10PU7ESL] - 2010 года выпуска
-
№АртикулНазвание
-
251332646 ASM., GEARCASE (INCL. 1-33 AND ALL FROM DRIVE TRAIN, GEARCASE (2 OR 2) PAGE.)ASM., GEARCASE (INCL. 1-33 AND ALL FROM DRIVE TRAIN, GEARCASE (2 OR 2) PAGE.)
-
13610134 SEAL, DUAL LIPSEAL, DUAL LIP
-
27518785 SCREWSCREW
-
37080310 BALL, DETENTBALL, DETENT
-
47041483 SPRING, DETENT, SHIFTERSPRING, DETENT, SHIFTER
-
55135953 EXTENSION, DETENTEXTENSION, DETENT
-
63234474 GEARCASE, RIGHT HANDGEARCASE, RIGHT HAND
-
77710608 KEYKEY
-
83234121 INDEX, SHIFTINDEX, SHIFT
-
97043326 SPRING, TORSIONSPRING, TORSION
-
103233503 FORK, SHIFT, LOWFORK, SHIFT, LOW
-
117661957 PIN, DOWELPIN, DOWEL
-
123234120 DRUM, SHIFTDRUM, SHIFT
-
133233505 FORK, SHIFT , HIGHFORK, SHIFT , HIGH
-
143233403 SHAFT, SHIFTSHAFT, SHIFT
-
155410440 O-RINGO-RING
-
165135952 PIPE, KNOCKPIPE, KNOCK
-
173514594 BEARING, BALLBEARING, BALL
-
185135921 SPACERSPACER
-
193233419 GEAR, 27TGEAR, 27T
-
207710607 RING, RETAININGRING, RETAINING
-
213233507 SPROCKET, 19TSPROCKET, 19T
-
225438124 STICK, OIL LEVEL INDICATORSTICK, OIL LEVEL INDICATOR
-
225410675 O-RINGO-RING
-
237052472 PLUGPLUG
-
243233470 DOG, ENGAGEMENT, HIGH (NOTE: MUST ORDER WITH REF. 25)DOG, ENGAGEMENT, HIGH (NOTE: MUST ORDER WITH REF. 25)
-
253233509 SPROCKET, 19T (NOTE: MUST ORDER WITH REF. 24)SPROCKET, 19T (NOTE: MUST ORDER WITH REF. 24)
-
263514591 BEARING, NEEDLEBEARING, NEEDLE
-
277710602 RING, RETAINERRING, RETAINER
-
287556431 WASHER, THRUSTWASHER, THRUST
-
293514304 BEARING W/O SEALBEARING W/O SEAL
-
303234174 GEARCASE, LEFT HANDGEARCASE, LEFT HAND
-
314110062 SWITCH, INDICATORSWITCH, INDICATOR
-
327710609 KEYKEY
-
331016010 BELLCRANKBELLCRANK
