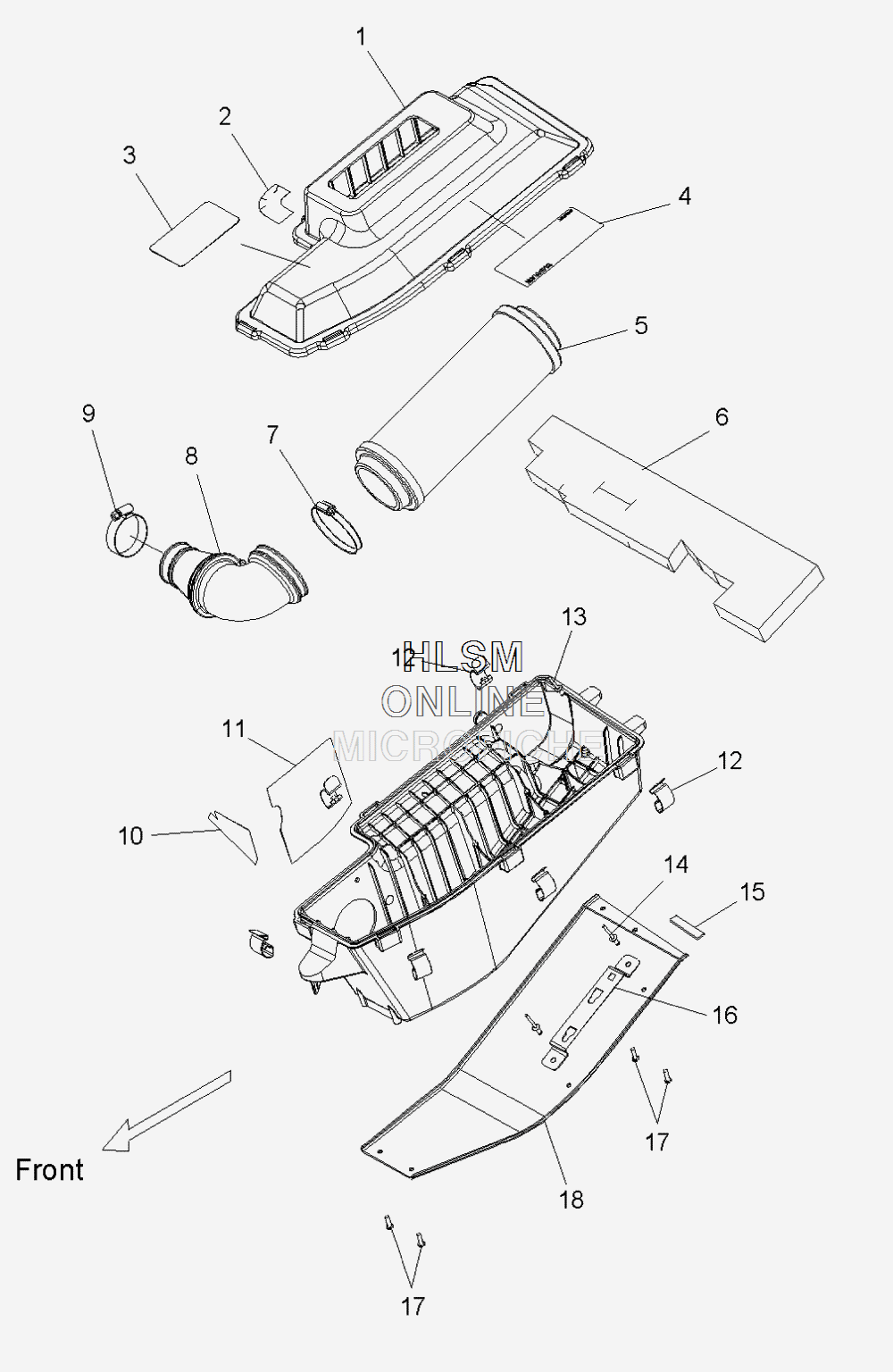

AIR INTAKE SYSTEM для Polaris TURBO LX (2010) [S10PD7FSL] - 2010 года выпуска
-
№АртикулНазвание
-
15435653 PLENUM, INTAKE, UPPERPLENUM, INTAKE, UPPER
-
25813005 FOIL, PLENUM, UPPERFOIL, PLENUM, UPPER
-
37173902 DECAL, CAUTION, AIR BOX FILTERDECAL, CAUTION, AIR BOX FILTER
-
47172672 DECAL, ENGINE AND CLUTCHDECAL, ENGINE AND CLUTCH
-
55813164 FILTER, PLENUMFILTER, PLENUM
-
65812950 FOAM, AIR BOX, INTERNALFOAM, AIR BOX, INTERNAL
-
77080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
85412829 CONNECTOR, PLENUMCONNECTOR, PLENUM
-
97080481 CLAMP, HOSECLAMP, HOSE
-
105813006 FOIL, PLENUM, LOWERFOIL, PLENUM, LOWER
-
115813007 FABRIC, PLENUM, LOWERFABRIC, PLENUM, LOWER
-
127670117 CLIP, AIR BOXCLIP, AIR BOX
-
135435592 PLENUM, INTAKE, LOWERPLENUM, INTAKE, LOWER
-
147621432 RIVETRIVET
-
155521131 TRIM,EDGE, 6FT,BLACKTRIM,EDGE, 6FT,BLACK
-
165248706 MOUNT, FUSE BOXMOUNT, FUSE BOX
-
177512026 SCREWSCREW
-
185249752 REINFORCEMENT, PLENUMREINFORCEMENT, PLENUM
