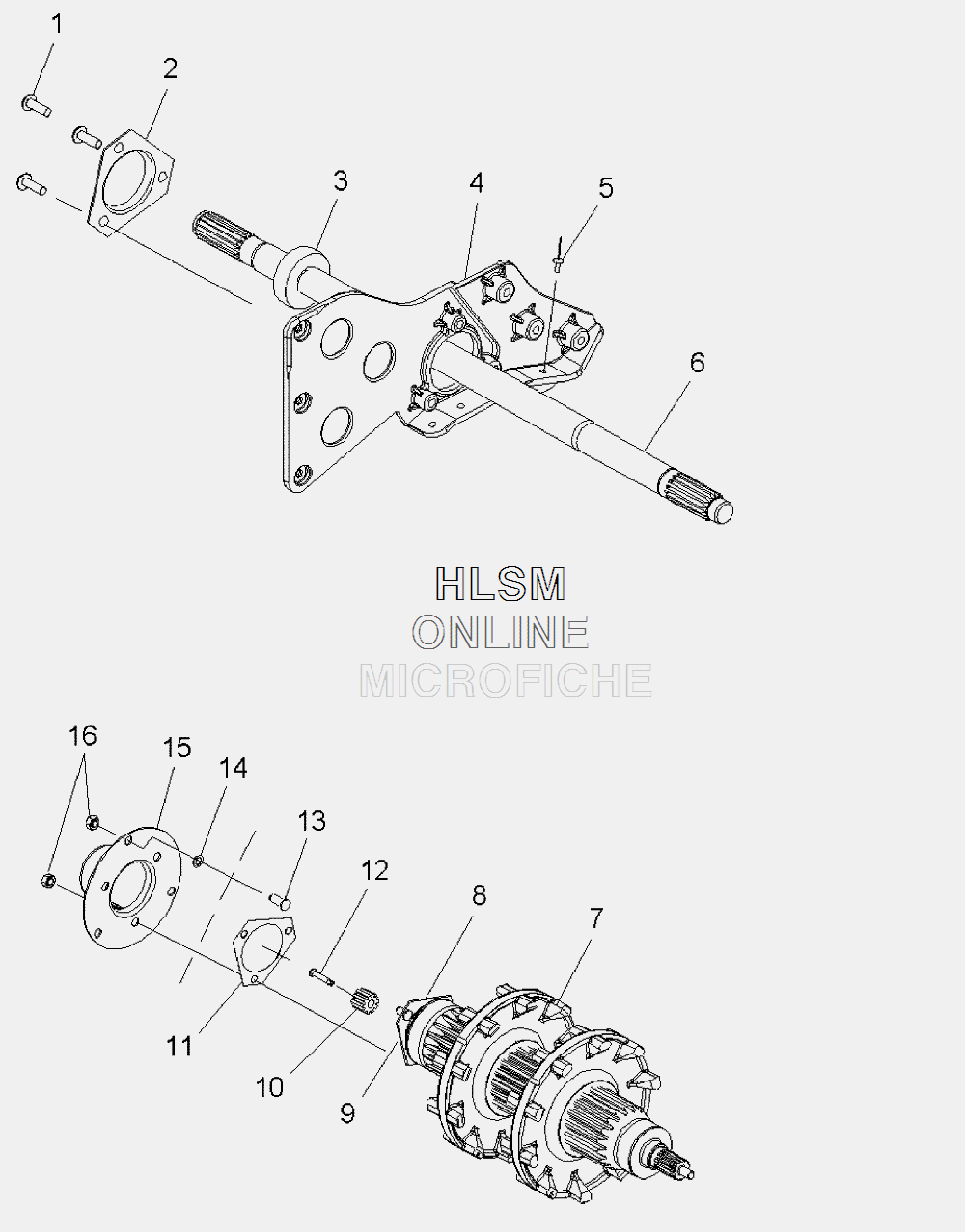

DRIVE TRAIN- JACKSHAFT AND DRIVESHAFT для Polaris TURBO LX (2010) [S10PD7FSL] - 2010 года выпуска
-
№АртикулНазвание
-
17518444 SCREWSCREW
-
25222751 FLANGETTEFLANGETTE
-
33514617 BEARINGBEARING
-
45134106 MOUNT, JACKSHAFT BEARING, LEFT HANDMOUNT, JACKSHAFT BEARING, LEFT HAND
-
57661637 RIVETRIVET
-
61332453 ASM., JACKSHAFT (INCL. 3)ASM., JACKSHAFT (INCL. 3)
-
71590412 ASM., DRIVESHAFTASM., DRIVESHAFT
-
81014299 ASM., FLANGETTE W/SCREWSASM., FLANGETTE W/SCREWS
-
93514448 BEARINGBEARING
-
105240013 WHEEL, PICKUP, SPEEDOWHEEL, PICKUP, SPEEDO
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
127516733 SCREWSCREW
-
137518049 BOLT, CARRIAGEBOLT, CARRIAGE
-
147547030 PALNUTPALNUT
-
155246960 HOUSING, DRIVE PICKUPHOUSING, DRIVE PICKUP
-
167542324 NUT, NYLOKNUT, NYLOK
