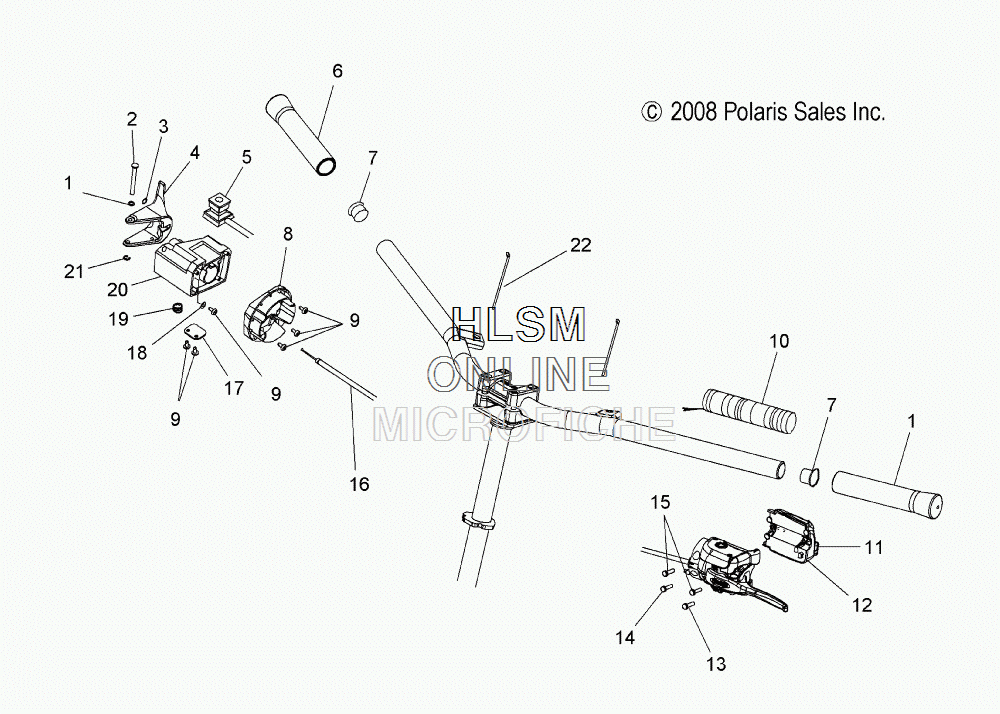

HANDLEBAR - LEVERS AND SWITCHES для Polaris FS WIDETRAK IQ [S11PU7ESL] - 2011 года выпуска
-
№АртикулНазвание
-
17555730 WASHERWASHER
-
27661624 PIN, RETAININGPIN, RETAINING
-
37710401 RING, RETAININGRING, RETAINING
-
42010171 ASM., HEATER LEVER, HI/LOASM., HEATER LEVER, HI/LO
-
45432970 LEVER, THROTTLELEVER, THROTTLE
-
54011280 SWITCH, AUX. SHUT-OFF/POWERSWITCH, AUX. SHUT-OFF/POWER
-
65434715-070 GRIP, HANDLEBAR, BLACKGRIP, HANDLEBAR, BLACK
-
75431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
85433345 ADAPTOR, BLOCK, THROTTLEADAPTOR, BLOCK, THROTTLE
-
97511848 SCREWSCREW
-
102410812 HEATER, GRIP, HI/MED/LOWHEATER, GRIP, HI/MED/LOW
-
115433291 BUTTON, SWITCH, HI/LOW, LEFT HAND CONTROLBUTTON, SWITCH, HI/LOW, LEFT HAND CONTROL
-
122010333 ASM., LEFT HAND CONTROLASM., LEFT HAND CONTROL
-
137517566 SCREWSCREW
-
147512078 SCREWSCREW
-
157517441 SCREWSCREW
-
167081154 CABLE, THROTTLECABLE, THROTTLE
-
175432261 HOLDER, WIREHOLDER, WIRE
-
187555727 WASHERWASHER
-
197512465 SCREW, SETSCREW, SET
-
205431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
217710503 RING, RETAININGRING, RETAINING
-
227080138 CABLE TIECABLE TIE
