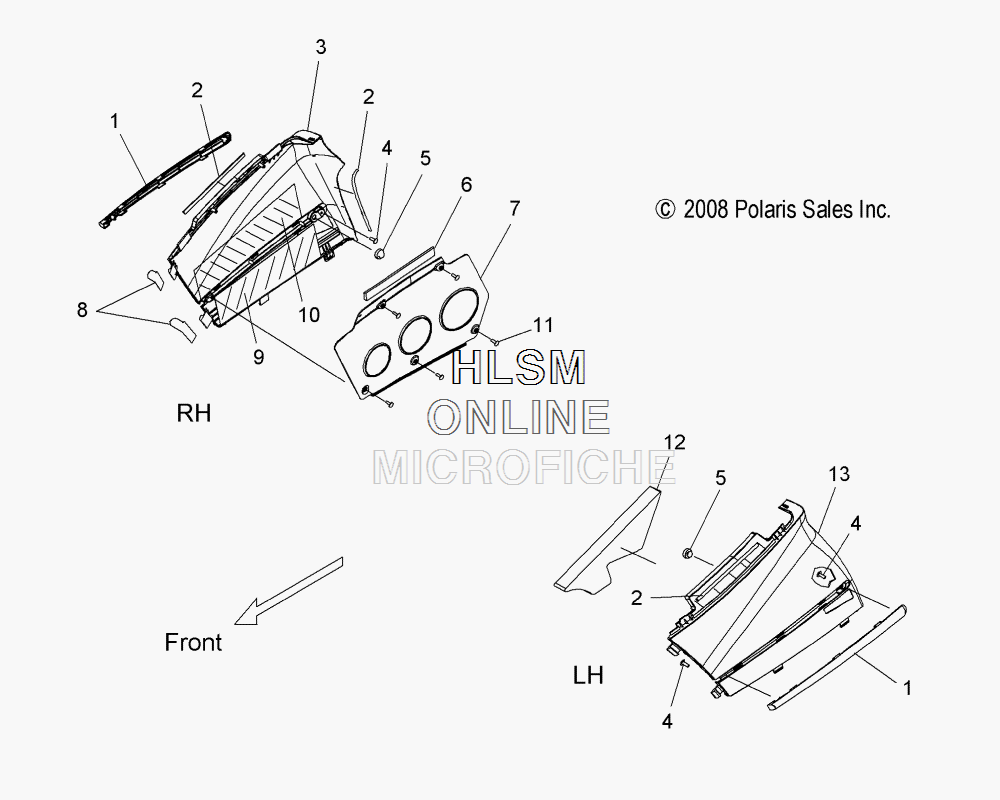

SIDE PANELS для Polaris FS WIDETRAK IQ [S11PU7ESL] - 2011 года выпуска
-
№АртикулНазвание
-
15435787-070 BUMPER, SIDE, LEFT HAND, BLACKBUMPER, SIDE, LEFT HAND, BLACK
-
15435788-070 BUMPER, SIDE, RIGHT HAND, BLACKBUMPER, SIDE, RIGHT HAND, BLACK
-
25521697-350 SEAL, BULB (SVC LENGTH)SEAL, BULB (SVC LENGTH)
-
32633255-070 ASM., SIDE PANEL, RIGHT HAND, BLACK (INCL. 2,8,9,10 AND REFLECTOR)ASM., SIDE PANEL, RIGHT HAND, BLACK (INCL. 2,8,9,10 AND REFLECTOR)
-
47518238 SCREWSCREW
-
55410414 BUMPER, RUBBERBUMPER, RUBBER
-
65813206 FOAM/FIBERFOAM/FIBER
-
75250214 SHIELD, HEAT, RIGHT HAND, PANELSHIELD, HEAT, RIGHT HAND, PANEL
-
85812833 FOIL, TAB, SIDE PANELFOIL, TAB, SIDE PANEL
-
95812942 FOIL, SIDE PANELFOIL, SIDE PANEL
-
105812943 FOIL, SIDE PANELFOIL, SIDE PANEL
-
117517441 SCREWSCREW
-
125813375 FOAM, SIDE PANEL, LEFT HANDFOAM, SIDE PANEL, LEFT HAND
-
132633784-070 ASM., SIDE PANEL, LEFT HAND, BLACK (INCL. 2,12, AND REFLECTOR)ASM., SIDE PANEL, LEFT HAND, BLACK (INCL. 2,12, AND REFLECTOR)
