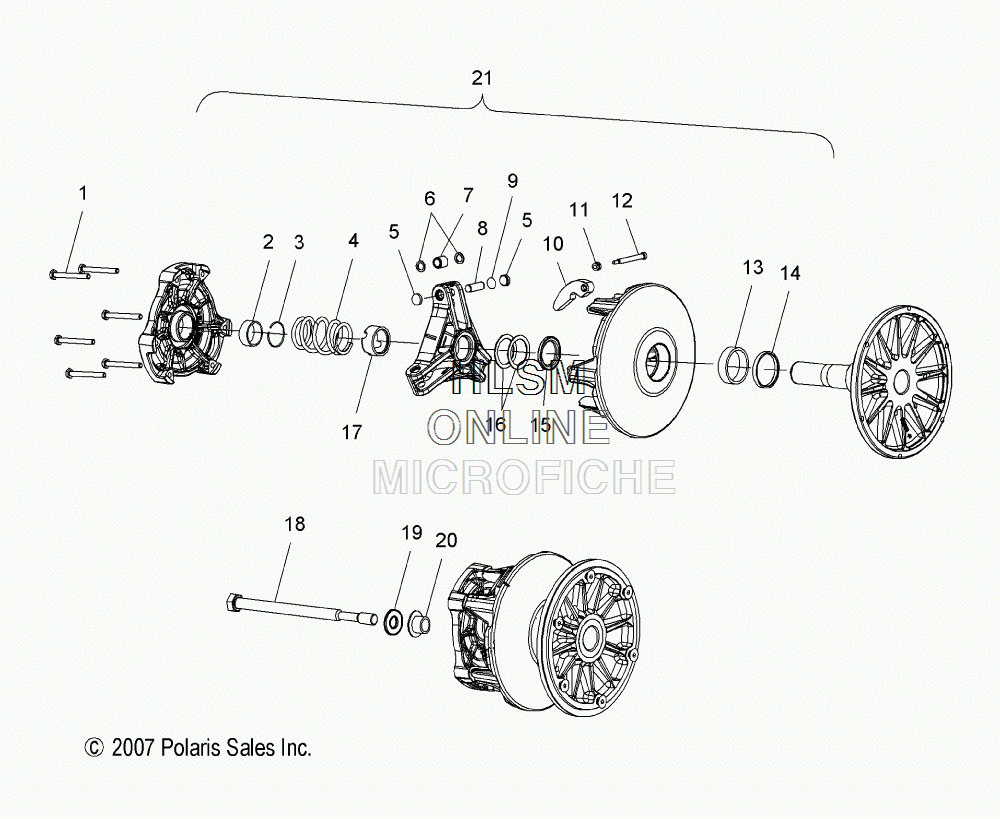

CLUTCH - PRIMARY для Polaris TURBO IQ [S11PP7FSL] - 2011 года выпуска
-
№АртикулНазвание
-
17518349 SCREWSCREW
-
23576516 BEARING, COVERBEARING, COVER
-
37710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
47043121 SPRING, CLUTCH, 100/340SPRING, CLUTCH, 100/340
-
55430445 BUTTON, GUIDEBUTTON, GUIDE
-
65430945 WASHERWASHER
-
71321622 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85133079 PIN, ROLLERPIN, ROLLER
-
92200387 KIT, SHIM, DRIVE CLUTCHKIT, SHIM, DRIVE CLUTCH
-
101322597 ASM., WEIGHT/BUSHING, 11-66ASM., WEIGHT/BUSHING, 11-66
-
117541906 NUT, FLEXLOCNUT, FLEXLOC
-
127515105 PIN, HARDENED WEIGHTPIN, HARDENED WEIGHT
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155134018 SPACER, .130SPACER, .130
-
165210754 SPACER, .050SPACER, .050
-
165210753 SPACER, .032SPACER, .032
-
165242981 SPACER, .025SPACER, .025
-
165210752 SPACER, .020SPACER, .020
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREWSCREW
-
197556003 WASHERWASHER
-
205131872 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
211322565 ASM., DRIVE CLUTCH, BASIC 225 (LESS 5,11)ASM., DRIVE CLUTCH, BASIC 225 (LESS 5,11)
