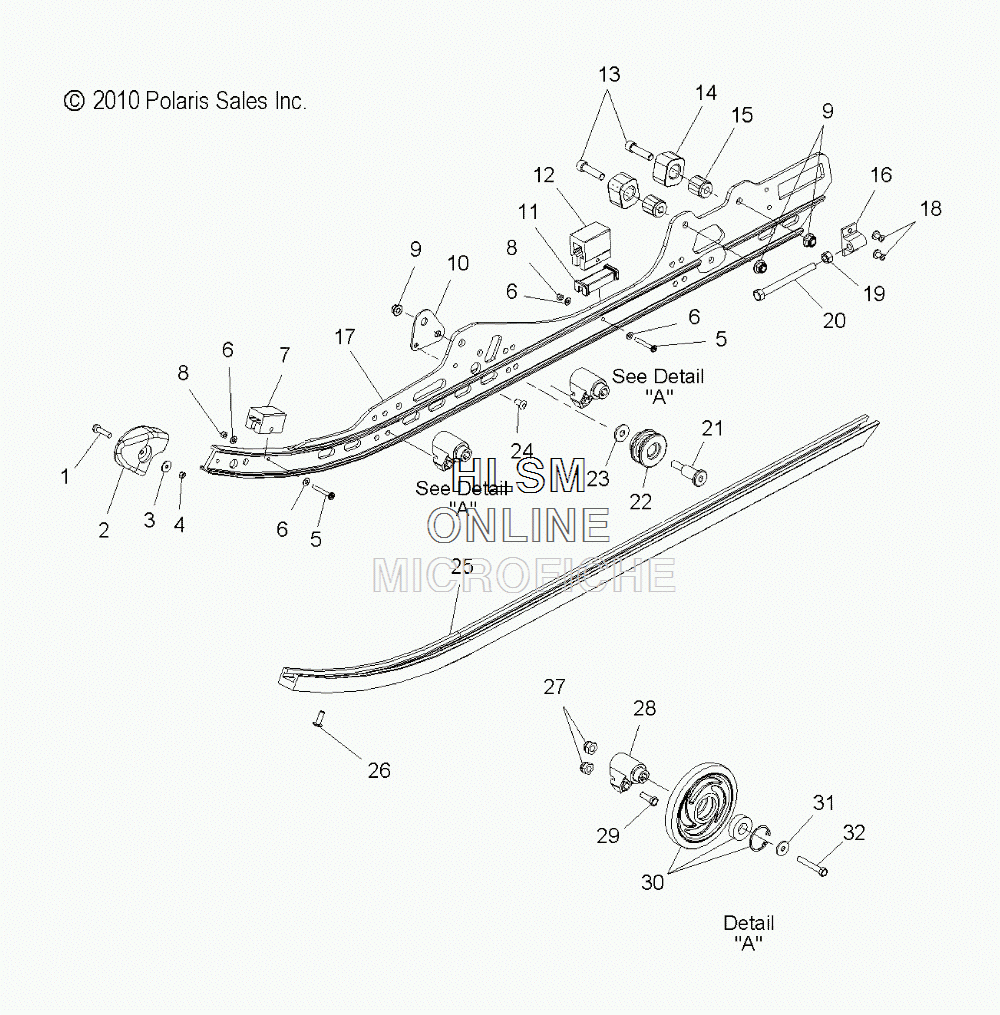

SUSPENSION - RAIL MOUNTING для Polaris TURBO IQ [S11PP7FSL] - 2011 года выпуска
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
25435527 CAP, RAIL TIPCAP, RAIL TIP
-
37556064 WASHERWASHER
-
47547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
57510504 SCREWSCREW
-
67555783 WASHER, FLATWASHER, FLAT
-
75521499 BUMPER, JOUNCE, FRONTBUMPER, JOUNCE, FRONT
-
87541925 NUT, NYLOKNUT, NYLOK
-
97547263 NUT, NYLOKNUT, NYLOK
-
105248414 BRACKET, RAIL REINFORCEMENTBRACKET, RAIL REINFORCEMENT
-
115432946 LINER, BUMPERLINER, BUMPER
-
125521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
137515537 BOLTBOLT
-
145410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
155131113 MOUNT, BUMPERMOUNT, BUMPER
-
165130530 BLOCK, IDLER BOLT ADJUSTINGBLOCK, IDLER BOLT ADJUSTING
-
171542790 ASM., RAIL, 121, LEFT HAND (INCL. 1-8,11,12,16,18)ASM., RAIL, 121, LEFT HAND (INCL. 1-8,11,12,16,18)
-
171542791 ASM., RAIL, 121, RIGHT HAND (INCL. 1-8,11,12,16,18)ASM., RAIL, 121, RIGHT HAND (INCL. 1-8,11,12,16,18)
-
187621501 RIVETRIVET
-
197542404 NUTNUT
-
207517227 SCREWSCREW
-
217518359 SCREWSCREW
-
225432982 ROLLER, SPRINGROLLER, SPRING
-
237555983 WASHERWASHER
-
247661845 RIVETRIVET
-
255521632 SLIDERSLIDER
-
267515199 SCREWSCREW
-
277542324 NUT, NYLOKNUT, NYLOK
-
285631446 BLOCK, MOUNT, WHEELBLOCK, MOUNT, WHEEL
-
297515317 BOLTBOLT
-
301590387-070 ASM., WHEEL, SCROLLED, BLACKASM., WHEEL, SCROLLED, BLACK
-
303514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
307710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
317556179 WASHER, SPRINGWASHER, SPRING
-
327515346 SCREWSCREW
