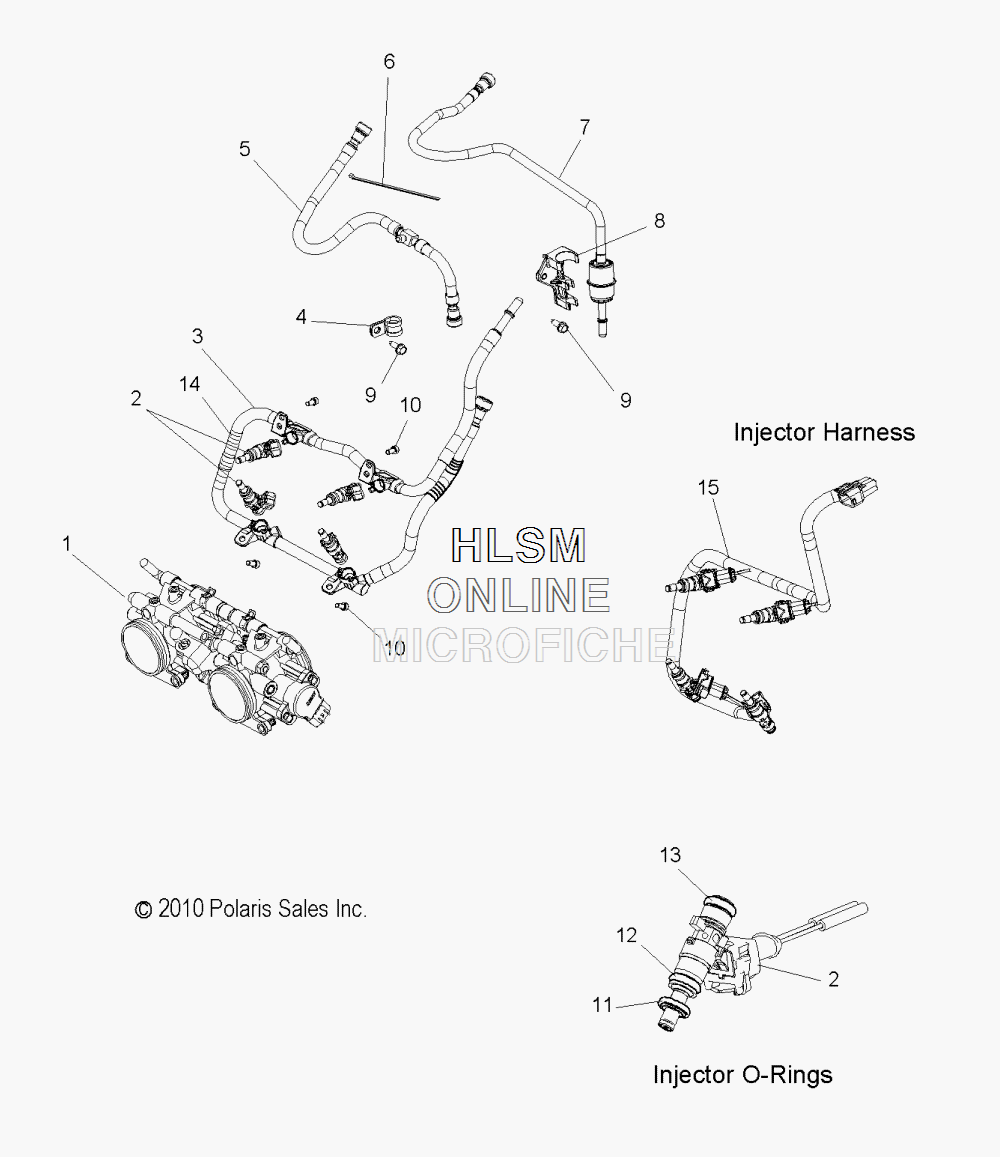

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 WIDETRAK IQ INTL [S12PU6NEL] - 2012 года выпуска`
-
№АртикулНазвание
-
11203213 ASM., THROTTLE BODYASM., THROTTLE BODY
-
22203894-015 KIT, INJECTOR, RED (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR, RED (INCLUDES 1 INJECTOR PER KIT)
-
22203894-027 KIT, INJECTOR, BLUE (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR, BLUE (INCLUDES 1 INJECTOR PER KIT)
-
22203894-053 KIT, INJECTOR, YELLOW (INCLUDES 1 INJECTOR PER KIT)KIT, INJECTOR, YELLOW (INCLUDES 1 INJECTOR PER KIT)
-
32520572 ASM., FUEL RAILASM., FUEL RAIL
-
47080573 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
52520648 ASM., FUEL LINE, RETURNASM., FUEL LINE, RETURN
-
67080138 CABLE TIECABLE TIE
-
72520647 ASM., FUEL LINE, FILTERASM., FUEL LINE, FILTER
-
81203256 ASM., FUEL FILTER RETAINER (INCL. PAD)ASM., FUEL FILTER RETAINER (INCL. PAD)
-
85812996 PAD, FUEL FILTERPAD, FUEL FILTER
-
97512095 SCREWSCREW
-
107517431 SCREWSCREW
-
115436287 BUSHING, RUBBER (GREEN) (1 PER INJECTOR)BUSHING, RUBBER (GREEN) (1 PER INJECTOR)
-
121500198 O-RING (BLACK) (1 PER INJECTOR)O-RING (BLACK) (1 PER INJECTOR)
-
135412891 O-RING (BROWN) (1 PER INJECTOR)O-RING (BROWN) (1 PER INJECTOR)
-
148360052-305 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
-
154012122 HARNESS, 4 INJECTOR, DC-SDIHARNESS, 4 INJECTOR, DC-SDI
