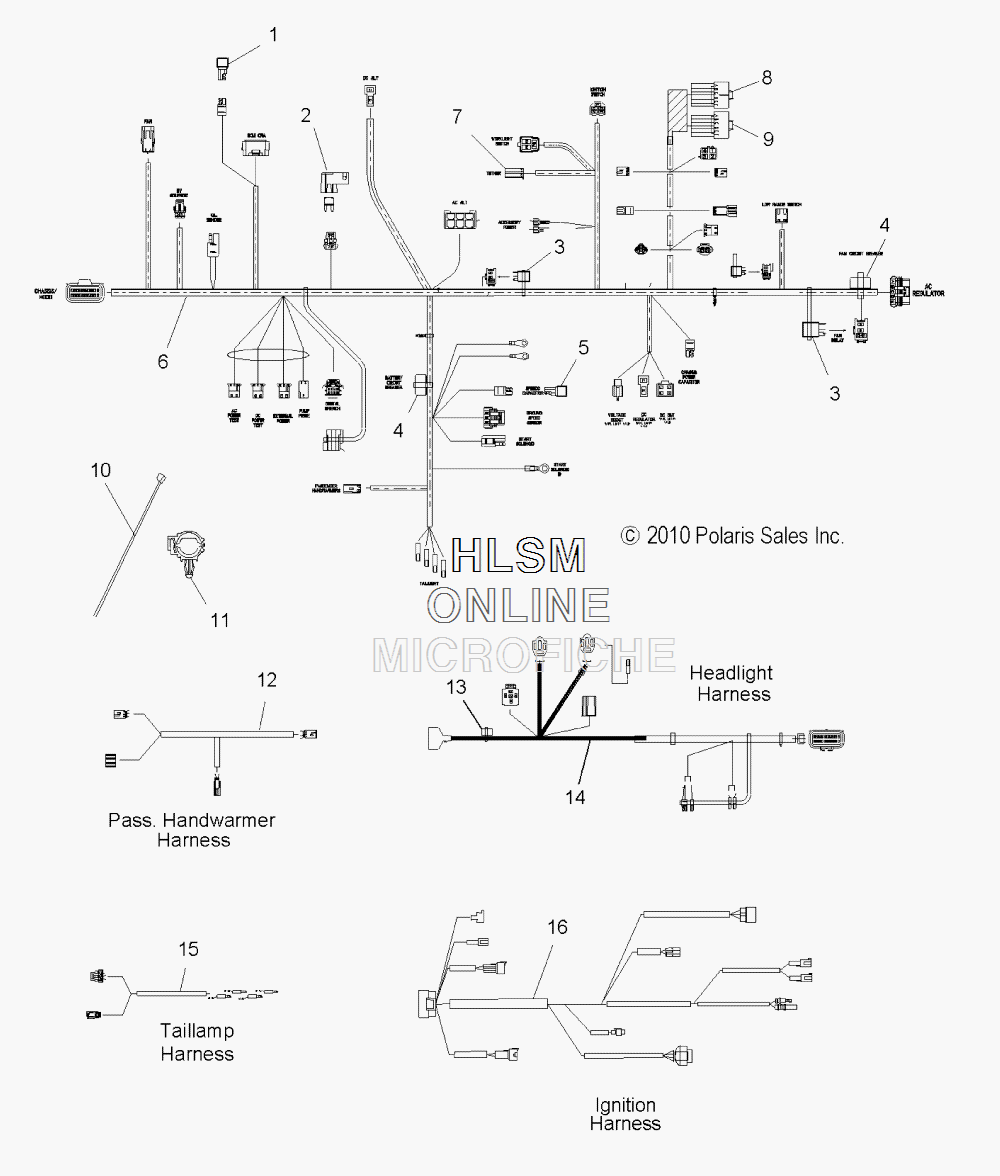

WIRING HARNESS для Polaris 600 WIDETRAK IQ INTL [S12PU6NEL] - 2012 года выпуска
-
№АртикулНазвание
-
12411280 RESISTOR, 10% ETHANOLRESISTOR, 10% ETHANOL
-
12411282 RESISTOR, PREMIUM, NON ETHANOL 160 OHMRESISTOR, PREMIUM, NON ETHANOL 160 OHM
-
24012260 COVER, FUSE HOLDERCOVER, FUSE HOLDER
-
34011998 RELAYRELAY
-
42410692 BREAKER, CIRCUIT, 10 AMP, SEALEDBREAKER, CIRCUIT, 10 AMP, SEALED
-
54011441 CAPACITOR, FILTERCAPACITOR, FILTER
-
62411538 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
74020063 HOUSING, PACKHOUSING, PACK
-
84020062 HOUSING, RECEPTACLEHOUSING, RECEPTACLE
-
94010194 HOUSING, CONNECTOR, 12064860HOUSING, CONNECTOR, 12064860
-
107080138 CABLE TIECABLE TIE
-
114020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
122411542 HARNESS, PASSENGER HANDWARMERSHARNESS, PASSENGER HANDWARMERS
-
134011149 BATTERYBATTERY
-
142411549 HARNESS, HEADLIGHT, INT'LHARNESS, HEADLIGHT, INT'L
-
152411541 HARNESS, TAILLAMPHARNESS, TAILLAMP
-
164012375 HARNESS, IGNITIONHARNESS, IGNITION
