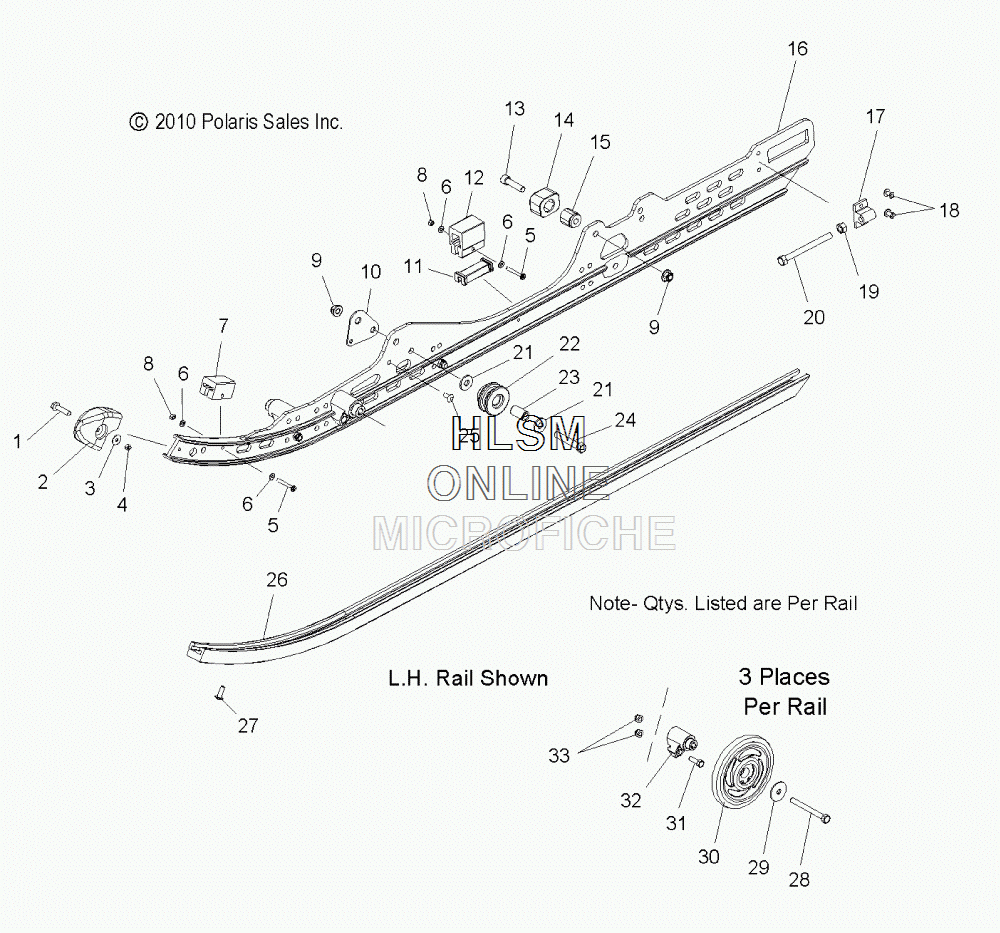

SUSPENSION - RAIL MOUNTING (U.S.) для Polaris 550 SHIFT 136 [S13PR5BSA] - 2013 года выпуска
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
25438374 CAP, RAIL TIPCAP, RAIL TIP
-
37556064 WASHER, FLATWASHER, FLAT
-
47547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
57510504 SCREWSCREW
-
67555783 WASHER, FLATWASHER, FLAT
-
75521499 BUMPER, JOUNCE, FRONTBUMPER, JOUNCE, FRONT
-
87541925 NUT, NYLOKNUT, NYLOK
-
97547263 NUT, FLANGENUT, FLANGE
-
105248414 BRACKET, RAIL REINFORCEMENTBRACKET, RAIL REINFORCEMENT
-
115432946 LINER, BUMPERLINER, BUMPER
-
125521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
137515537 BOLTBOLT
-
145410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
155131113 MOUNT, BUMPERMOUNT, BUMPER
-
161542788 ASM., RAIL, 136, LEFT HAND (INCL., 5-8,11,12,17,18)ASM., RAIL, 136, LEFT HAND (INCL., 5-8,11,12,17,18)
-
161542789 ASM., RAIL, 136, RIGHT HAND (INCL., 5-8,11,12,17,18)ASM., RAIL, 136, RIGHT HAND (INCL., 5-8,11,12,17,18)
-
175130530 BLOCK, IDLER BOLT ADJUSTABLEBLOCK, IDLER BOLT ADJUSTABLE
-
187621501 RIVETRIVET
-
197542404 NUTNUT
-
207517227 SCREWSCREW
-
217555983 WASHERWASHER
-
225432982 ROLLER, SPRING SQUAREROLLER, SPRING SQUARE
-
235135933 BUSHINGBUSHING
-
247515415 SCREWSCREW
-
257661845 RIVETRIVET
-
265521633 SLIDERSLIDER
-
277515199 SCREWSCREW
-
287515346 SCREWSCREW
-
297556387 WASHER, SPRINGWASHER, SPRING
-
301590387-070 ASM., WHEEL, SCROLLED (BLACK)ASM., WHEEL, SCROLLED (BLACK)
-
307710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
303514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
317515317 BOLTBOLT
-
325631446 BLOCK, WHEEL MOUNTBLOCK, WHEEL MOUNT
-
337542324 NUT, NYLOKNUT, NYLOK
