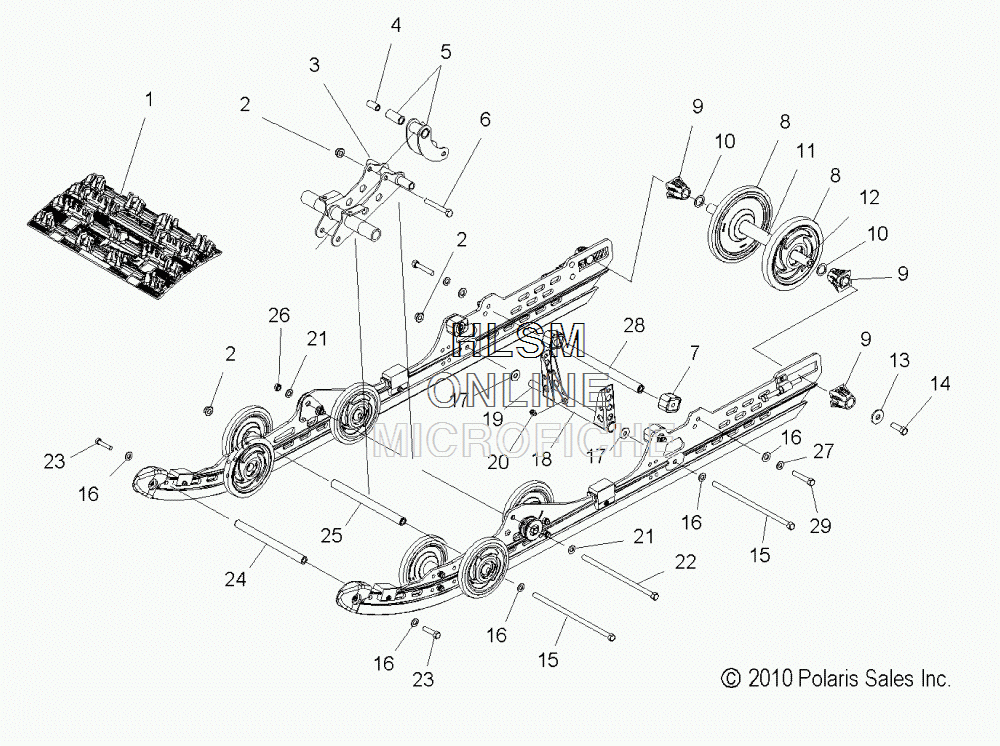

SUSPENSION - REAR (U.S.) для Polaris 550 SHIFT 136 [S13PR5BSA] - 2013 года выпуска
-
№АртикулНазвание
-
15411955 TRACK, 136 INCH, 1.25, SHOCKWAVETRACK, 136 INCH, 1.25, SHOCKWAVE
-
15251273 CLIP, FLATCLIP, FLAT
-
15251274 CLIP, GUIDECLIP, GUIDE
-
27547263 NUT, NYLOKNUT, NYLOK
-
31542465-329 H-BRACKET (BLACK)H-BRACKET (BLACK)
-
45333906 SLEEVESLEEVE
-
51542095 ASM., PIVOT, SHOCK (INCL. BUSHING)ASM., PIVOT, SHOCK (INCL. BUSHING)
-
55134600 BUSHINGBUSHING
-
67515417 SCREWSCREW
-
75413387 BUMPER, PIVOT, LAMINATEBUMPER, PIVOT, LAMINATE
-
81590388-070 ASM., WHEEL (BLACK)ASM., WHEEL (BLACK)
-
87710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
83514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
95432535 SPACER, IDLERSPACER, IDLER
-
107555918 BUSHINGBUSHING
-
115333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
125335232 SHAFT, IDLERSHAFT, IDLER
-
137556130 WASHER, BELLEWASHER, BELLE
-
147517731 BOLTBOLT
-
157517921 SCREWSCREW
-
167556188 WASHER, FLATWASHER, FLAT
-
177555893 WASHER, FLATWASHER, FLAT
-
181541928-067 ARM, REAR PIVOT (BLACK)ARM, REAR PIVOT (BLACK)
-
195333404 SHAFTSHAFT
-
207080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
217556156 WASHERWASHER
-
227518339 SCREWSCREW
-
237518005 SCREWSCREW
-
245134078 SHAFTSHAFT
-
255134517 SHAFTSHAFT
-
267542522 NUT, FLANGE LOCKNUT, FLANGE LOCK
-
277552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
285134796 SHAFT, COUPLER BLOCKSHAFT, COUPLER BLOCK
-
297515551 SCREWSCREW
