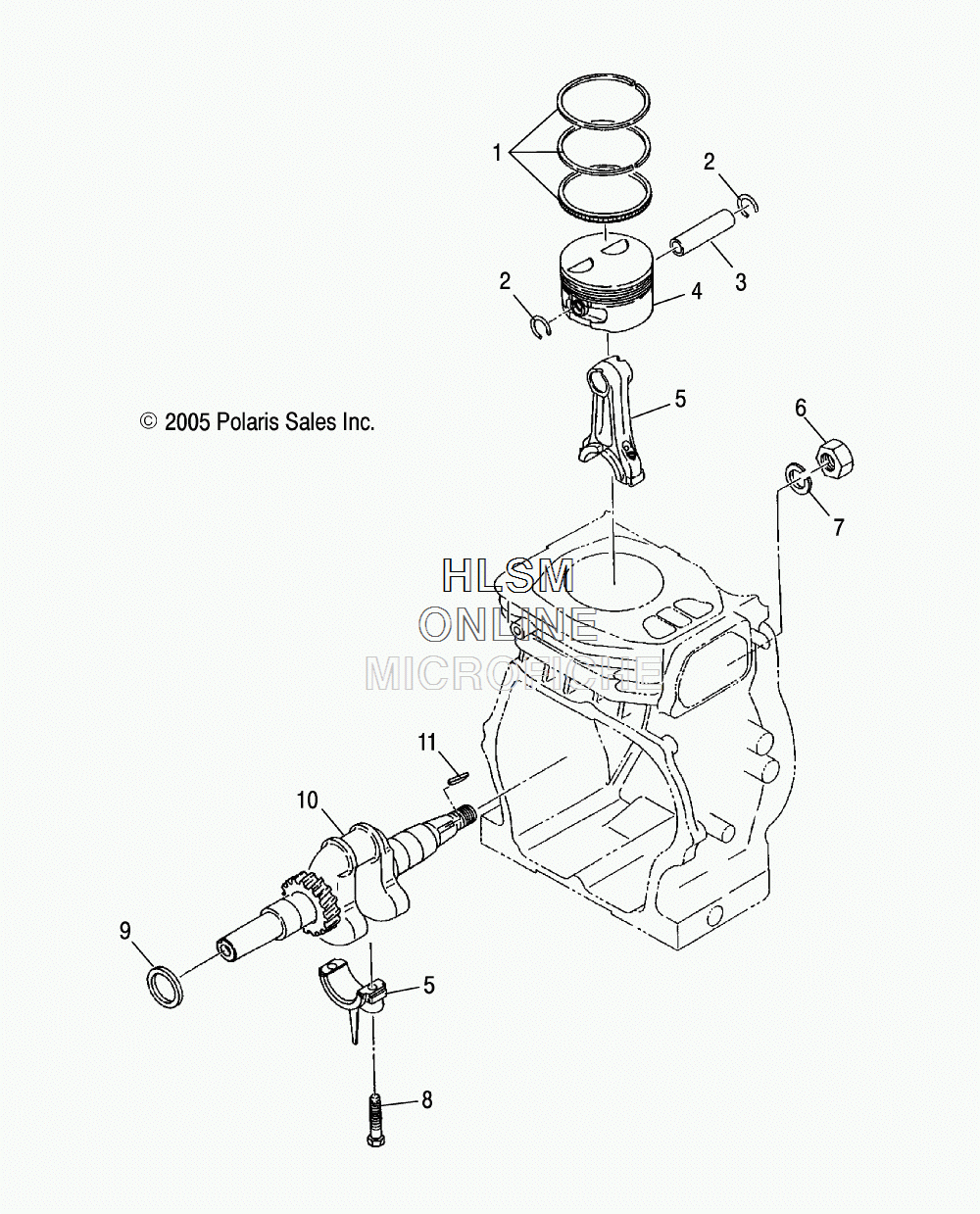

CRANKSHAFT ASSY. W/ PISTON для Polaris 120 INDY INTL [S14WB1AEA] - 2014 года выпуска
-
№АртикулНазвание
-
13088203 SET, RING, PISTON, STANDARDSET, RING, PISTON, STANDARD
-
13088204 SET, RING, PISTON, 0.25 O/SSET, RING, PISTON, 0.25 O/S
-
13088205 SET, RING, PISTON, 0.50 O/SSET, RING, PISTON, 0.50 O/S
-
23086553 CLIPCLIP
-
33086546 PIN, PISTONPIN, PISTON
-
43086969 SET, PISTON, STANDARD (INCL. 2)SET, PISTON, STANDARD (INCL. 2)
-
43086970 SET, PISTON, 0.25 O/S (INCL. 2)SET, PISTON, 0.25 O/S (INCL. 2)
-
43086971 SET, PISTON, 0.50 O/S (INCL. 2)SET, PISTON, 0.50 O/S (INCL. 2)
-
53086544 ASM., CONNECTING ROD (INCL. 8)ASM., CONNECTING ROD (INCL. 8)
-
63087974 NUT, FLANGENUT, FLANGE
-
73086540 WASHER, SPRINGWASHER, SPRING
-
83086545 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
93086537 SPACER, 0.6SPACER, 0.6
-
93086538 SPACER, 0.8SPACER, 0.8
-
93086539 SPACER, 1.0SPACER, 1.0
-
103086949 ASM., CRANKSHAFTASM., CRANKSHAFT
-
113086536 KEY, WOODRUFFKEY, WOODRUFF
Все узлы модели:
- AIR INTAKE SYSTEM
- BUMPER - FRONT W/ NOSEPAN
- CARBURETOR W/CHOKE
- CLUTCH ASSEMBLY
- CRANKCASE ASSEMBLY
- • CRANKSHAFT ASSY. W/ PISTON
- DECALS
- DRIVE SHAFT ASSY.
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - INSTRUMENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- GOVERNOR
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- OWNER'S MANUAL W/ TOOL KIT
- RECOIL STARTER W/ BLOWER HOUSING
- SEAT W/ FUEL TANK & CONSOLE
- SKI ASSEMBLY
- STEERING - LOWER
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TUNNEL W/BULKHEAD
