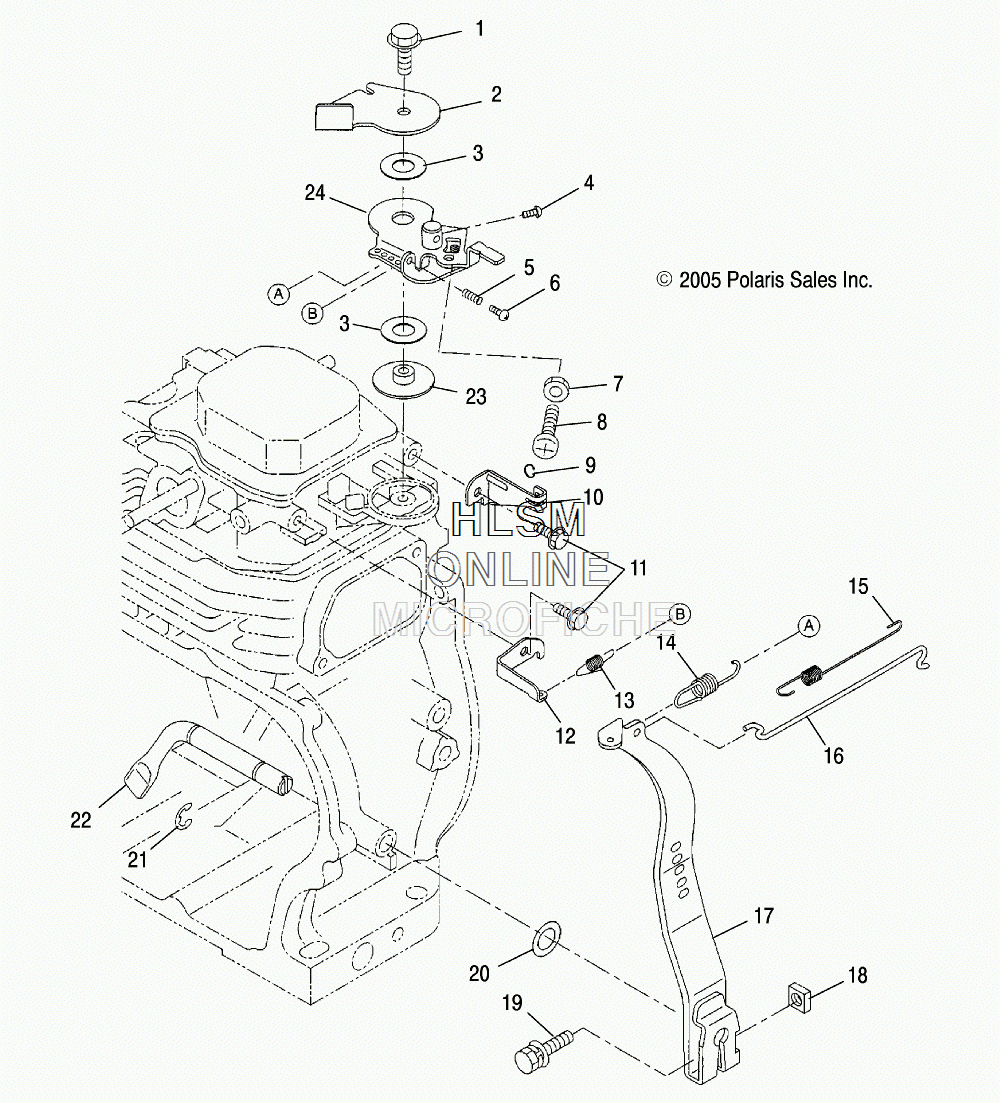

GOVERNOR для Polaris 120 INDY INTL [S14WB1AEA] - 2014 года выпуска
-
№АртикулНазвание
-
13084566 BOLT, FLANGEBOLT, FLANGE
-
23086605 PLATE, STOPPLATE, STOP
-
33086954 WASHER, FRICTIONWASHER, FRICTION
-
43086609 SCREWSCREW
-
53086606 SPRING, IDLE SETSPRING, IDLE SET
-
63081497 SCREWSCREW
-
73083073 NUTNUT
-
83083784 SCREW AND WASHERSCREW AND WASHER
-
97556129 RING, RETAININGRING, RETAINING
-
103086973 BRACKET, WIREBRACKET, WIRE
-
113086125 BOLT, FLANGEBOLT, FLANGE
-
123090311 BRACKET, RETURN SPRINGBRACKET, RETURN SPRING
-
133086956 SPRING, RETURNSPRING, RETURN
-
143086599 SPRING, GOVERNORSPRING, GOVERNOR
-
153087145 SPRING, RODSPRING, ROD
-
163086596 ROD, GOVERNORROD, GOVERNOR
-
173086594 LEVER, GOVERNORLEVER, GOVERNOR
-
183086598 NUTNUT
-
193082038 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
203082673 WASHERWASHER
-
213086053 CLIPCLIP
-
223086595 SHAFT, GOVERNORSHAFT, GOVERNOR
-
233086955 ASM., SPACERASM., SPACER
-
243086953 ASM., CONTROL, SPEEDASM., CONTROL, SPEED
Все узлы модели:
- AIR INTAKE SYSTEM
- BUMPER - FRONT W/ NOSEPAN
- CARBURETOR W/CHOKE
- CLUTCH ASSEMBLY
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- DECALS
- DRIVE SHAFT ASSY.
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - INSTRUMENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- • GOVERNOR
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- OWNER'S MANUAL W/ TOOL KIT
- RECOIL STARTER W/ BLOWER HOUSING
- SEAT W/ FUEL TANK & CONSOLE
- SKI ASSEMBLY
- STEERING - LOWER
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TUNNEL W/BULKHEAD
