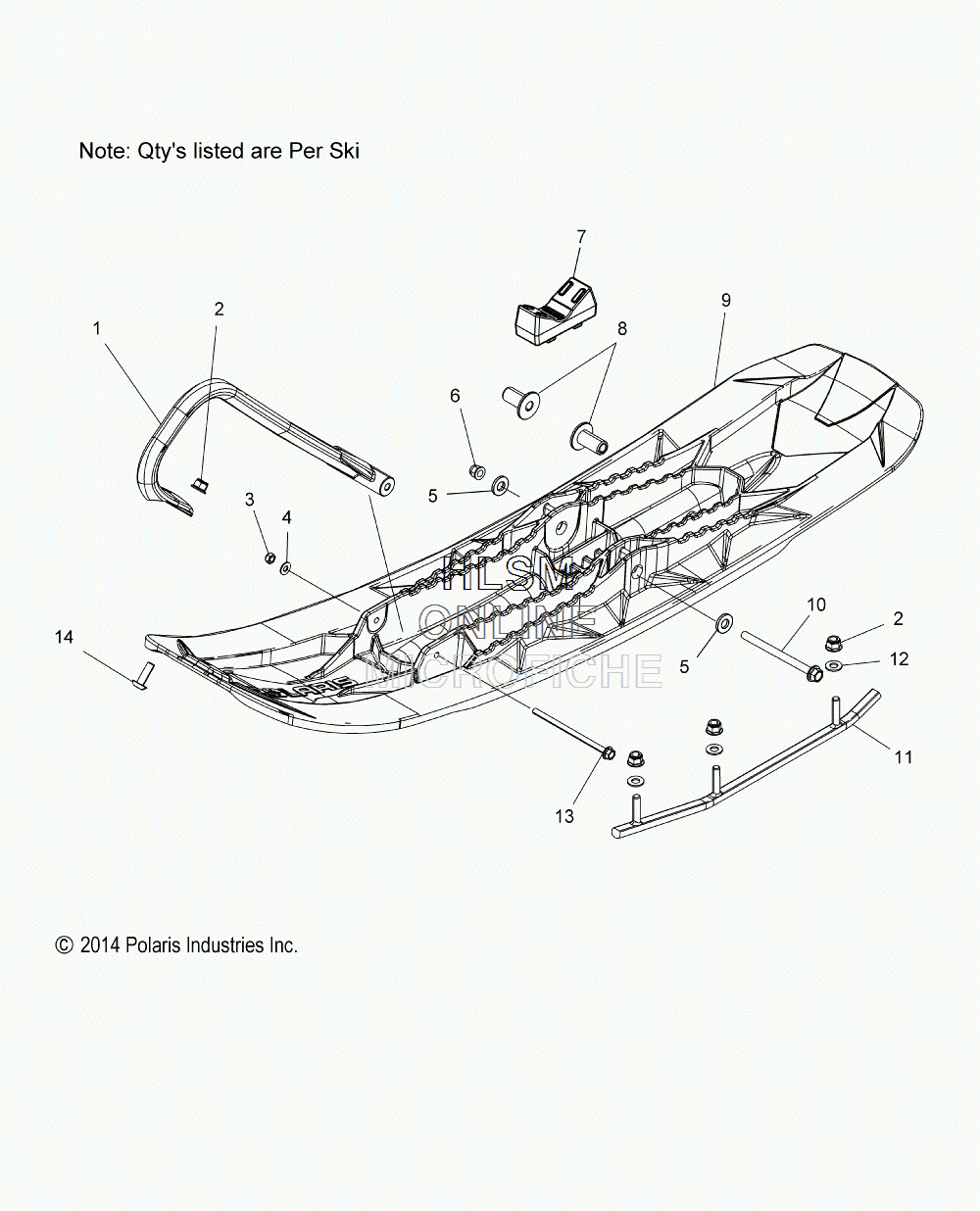

SKI ASSEMBLY для Polaris 550 INDY VOYAGER [S15CU5BSL] - 2015 года выпуска
-
№АртикулНазвание
-
15435681-070 TOE, PLASTIC SKI, BLACKTOE, PLASTIC SKI, BLACK
-
27547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
37547650 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
47556737 WASHER, FLATWASHER, FLAT
-
57556130 WASHER, BELLEWASHER, BELLE
-
67547423 NUT, FLANGE NYLOKNUT, FLANGE NYLOK
-
75414375 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85139104 BUSHING, SKI, METRICBUSHING, SKI, METRIC
-
91824116-070 ASM., SKI, SVC, BLACKASM., SKI, SVC, BLACK
-
107518668 BOLT, M10BOLT, M10
-
112879025 KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)
-
127556524 WASHERWASHER
-
137519985 SCREW, M6SCREW, M6
-
147518906 SCREWSCREW
