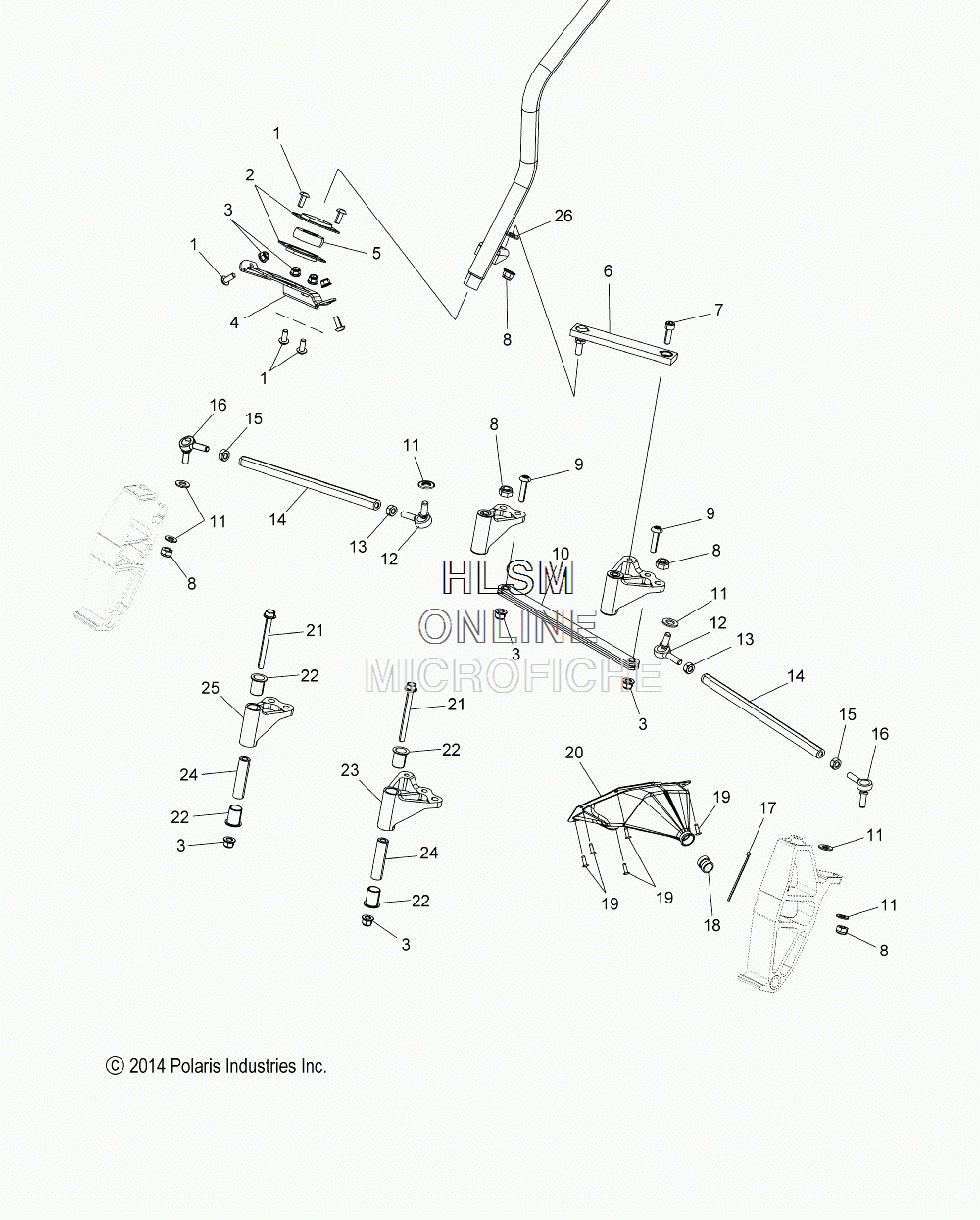

STEERING - LOWER для Polaris 550 INDY VOYAGER [S15CU5BSL] - 2015 года выпуска
-
№АртикулНазвание
-
17519260 SCREWSCREW
-
25222393 FLANGETTE, 2 BOLTFLANGETTE, 2 BOLT
-
37547332 NUTNUT
-
41018400 ASM., MOUNT, LWR STEERINGASM., MOUNT, LWR STEERING
-
53514793 BEARINGBEARING
-
67061186 ASM., DRAG LINK FIXEDASM., DRAG LINK FIXED
-
77519010 SCREWSCREW
-
87547442 NUTNUT
-
97519238 SCREWSCREW
-
107061190 ASM., RACK, LINKASM., RACK, LINK
-
117555806 WASHERWASHER
-
127061165 ROD END, LEFT HANDROD END, LEFT HAND
-
137547430 NUT, RIGHT HANDNUT, RIGHT HAND
-
145338136 TIE RODTIE ROD
-
157547431 NUT, LEFT HANDNUT, LEFT HAND
-
167061166 ROD END, RIGHT HANDROD END, RIGHT HAND
-
177080138 CABLE TIECABLE TIE
-
185439309 BUSHING, TIE ROD BOOTBUSHING, TIE ROD BOOT
-
197519092 SCREWSCREW
-
202634230 ASM., TIE ROD BOOT, LEFT HANDASM., TIE ROD BOOT, LEFT HAND
-
202634231 ASM., TIE ROD BOOT, RIGHT HANDASM., TIE ROD BOOT, RIGHT HAND
-
217519972 SCREWSCREW
-
225438460 BUSHINGBUSHING
-
231824284 ASM., PITMAN ARMASM., PITMAN ARM
-
245138365 SHAFT, PIVOT, IDLERSHAFT, PIVOT, IDLER
-
251824285 ASM., IDLER ARMASM., IDLER ARM
-
267556153 WASHER, THRU HRDWASHER, THRU HRD
