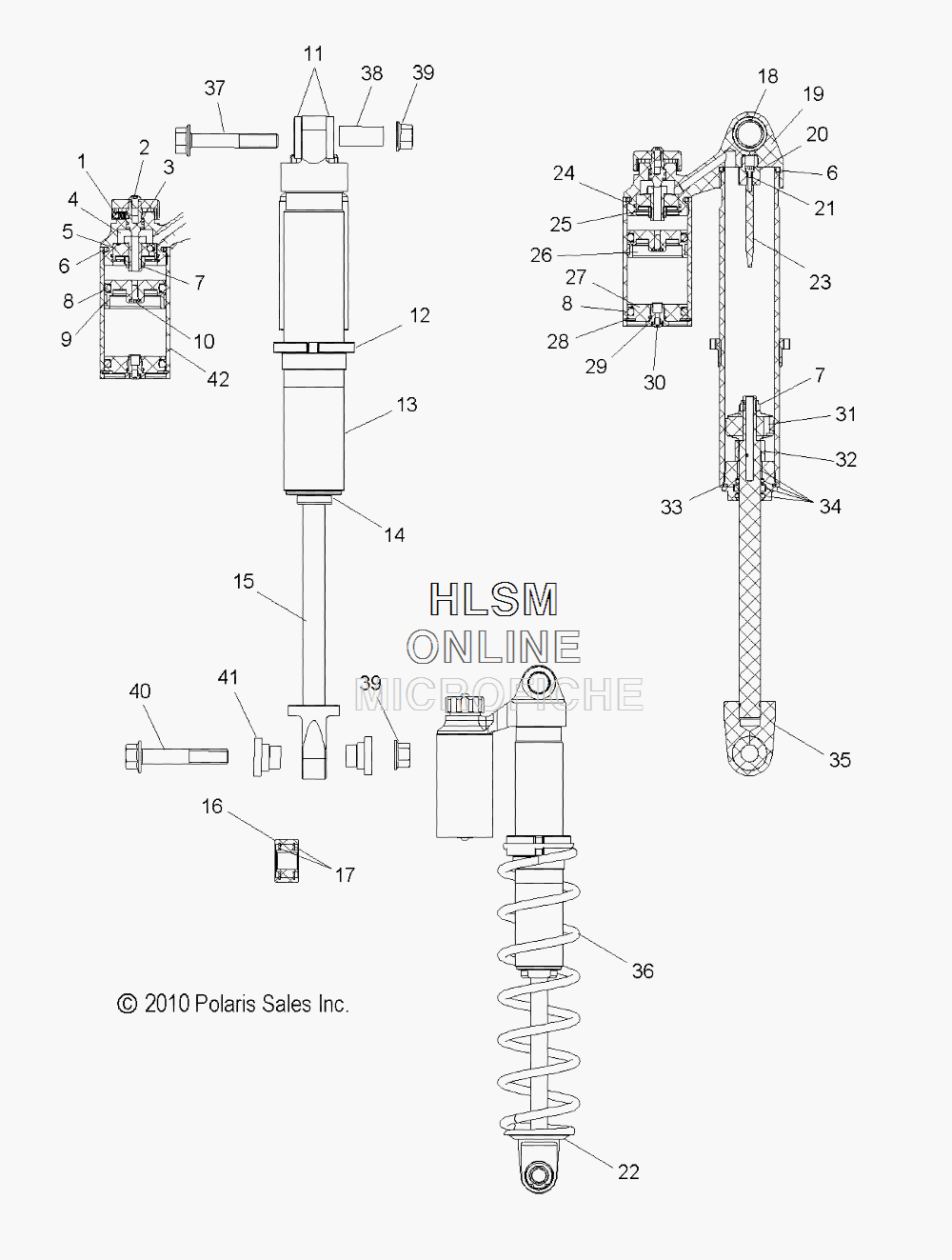

SUSPENSION - IFS SHOCK для Polaris 800 RMK ASSAULT 163 [S15CY8] - 2015 года выпуска
-
№АртикулНазвание
-
--7043568 SHOCK, IFSSHOCK, IFS
-
11800127 BALL, D-TENTBALL, D-TENT
-
11800128 SPRING, D-TENTSPRING, D-TENT
-
21800357 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
31800352 STUD, CLICKERSTUD, CLICKER
-
31800215 O-RING, STUDO-RING, STUD
-
41800354 BOLT, CLICKERBOLT, CLICKER
-
51800353 PISTON, CLICKERPISTON, CLICKER
-
61800030 O-RING, BODYO-RING, BODY
-
71800031 NUT, CRIMPNUT, CRIMP
-
81800184 O-RINGO-RING
-
91800185 BAND, PISTONBAND, PISTON
-
101800043 SCREW, BLEEDSCREW, BLEED
-
101800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
111800406 BUSHINGBUSHING
-
121800046 RETAINER, SPRINGRETAINER, SPRING
-
131800425 BODY, IFSBODY, IFS
-
141800414 ASM., SEAL HEADASM., SEAL HEAD
-
151800423 SHAFT, NEEDLE, IFSSHAFT, NEEDLE, IFS
-
161800040 BEARING, ENDBEARING, END
-
171800041 RING, SNAP, END BEARINGRING, SNAP, END BEARING
-
181800405 SLEEVESLEEVE
-
191800424 LOOP, BODYLOOP, BODY
-
201800302 BOLT, NEEDLEBOLT, NEEDLE
-
211800074 SCREW, BLEED W/O-RINGSCREW, BLEED W/O-RING
-
225630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
231800300 NEEDLENEEDLE
-
241800358 O-RING, CLICKER HOUSINGO-RING, CLICKER HOUSING
-
251800359 RING, SNAP, CLICKERRING, SNAP, CLICKER
-
261800355 PISTON, RESERVOIRPISTON, RESERVOIR
-
271800420 CAP, END, RESERVOIR, BLACKCAP, END, RESERVOIR, BLACK
-
281800159 RING, SNAPRING, SNAP
-
291800329 VALVE, NEEDLEVALVE, NEEDLE
-
291800215 O-RING, STUDO-RING, STUD
-
301800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
301800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
311800001 PISTON, CONVEXPISTON, CONVEX
-
311800297 BAND, WEARBAND, WEAR
-
321800376 SPACER, SHAFTSPACER, SHAFT
-
331800027 O-RING, BODYO-RING, BODY
-
341800038 BUSHING, SHAFTBUSHING, SHAFT
-
341800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
341800323 SEAL, U-CUPSEAL, U-CUP
-
341800322 WIPER, D-TYPEWIPER, D-TYPE
-
351800422 LOOP, SHAFTLOOP, SHAFT
-
367043679-133 SPRING, COMPRESSION, 130# WHITESPRING, COMPRESSION, 130# WHITE
-
367043679-293 SPRING, COMPRESSION, 130# INDY REDSPRING, COMPRESSION, 130# INDY RED
-
367043679-458 SPRING, COMPRESSION, 130# BLACKSPRING, COMPRESSION, 130# BLACK
-
377518941 SCREWSCREW
-
385137360 BUSHINGBUSHING
-
397547423 NUT, NYLOKNUT, NYLOK
-
407518971 SCREWSCREW
-
415136530 SPACERSPACER
-
421800419 BODY, RESERVOIRBODY, RESERVOIR
