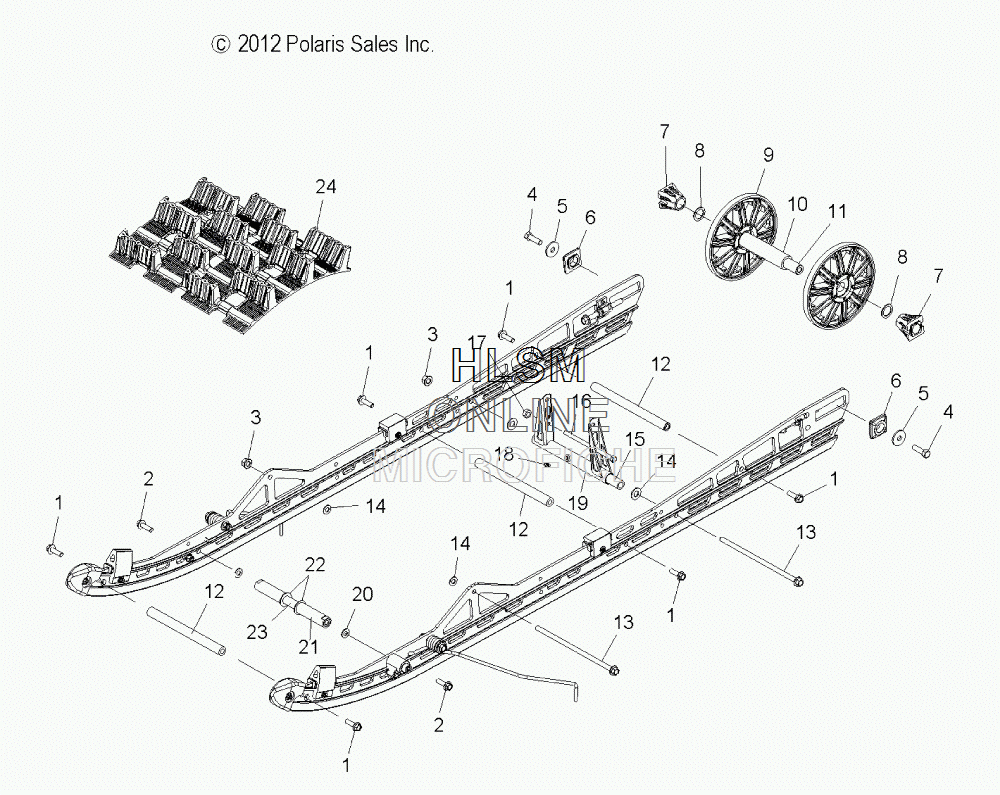

SUSPENSION - REAR W/ TRACK для Polaris 800 RMK ASSAULT 163 [S15CY8] - 2015 года выпуска
-
№АртикулНазвание
-
17518957 SCREWSCREW
-
27519216 SCREWSCREW
-
37547423 NUT, NYLOKNUT, NYLOK
-
47518957 SCREWSCREW
-
57556490 WASHER, SPRINGWASHER, SPRING
-
65436496 SPACER, IDLERSPACER, IDLER
-
75432535 SPACER, IDLERSPACER, IDLER
-
87555918 BUSHINGBUSHING
-
91590431-070 ASM., WHEEL, BLACKASM., WHEEL, BLACK
-
97710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
93514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
105333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
115137224 SHAFT, IDLERSHAFT, IDLER
-
125136572 SHAFTSHAFT
-
137519198 SCREWSCREW
-
147556545 WASHERWASHER
-
155137418 SHAFT, CROSSSHAFT, CROSS
-
167519201 BOLTBOLT
-
177547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
187080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
191542906-329 ARM, REAR PIVOT, BLACKARM, REAR PIVOT, BLACK
-
207555832 WASHERWASHER
-
215336325 SPACER, SHOCK CENTERING, METRICSPACER, SHOCK CENTERING, METRIC
-
227556210 WASHERWASHER
-
235137312 SHAFTSHAFT
-
242877304 TRACK, 155 X 2.125, COMPETITIONTRACK, 155 X 2.125, COMPETITION
-
245413622 TRACK, 155 X 2.4 (POWDER)TRACK, 155 X 2.4 (POWDER)
