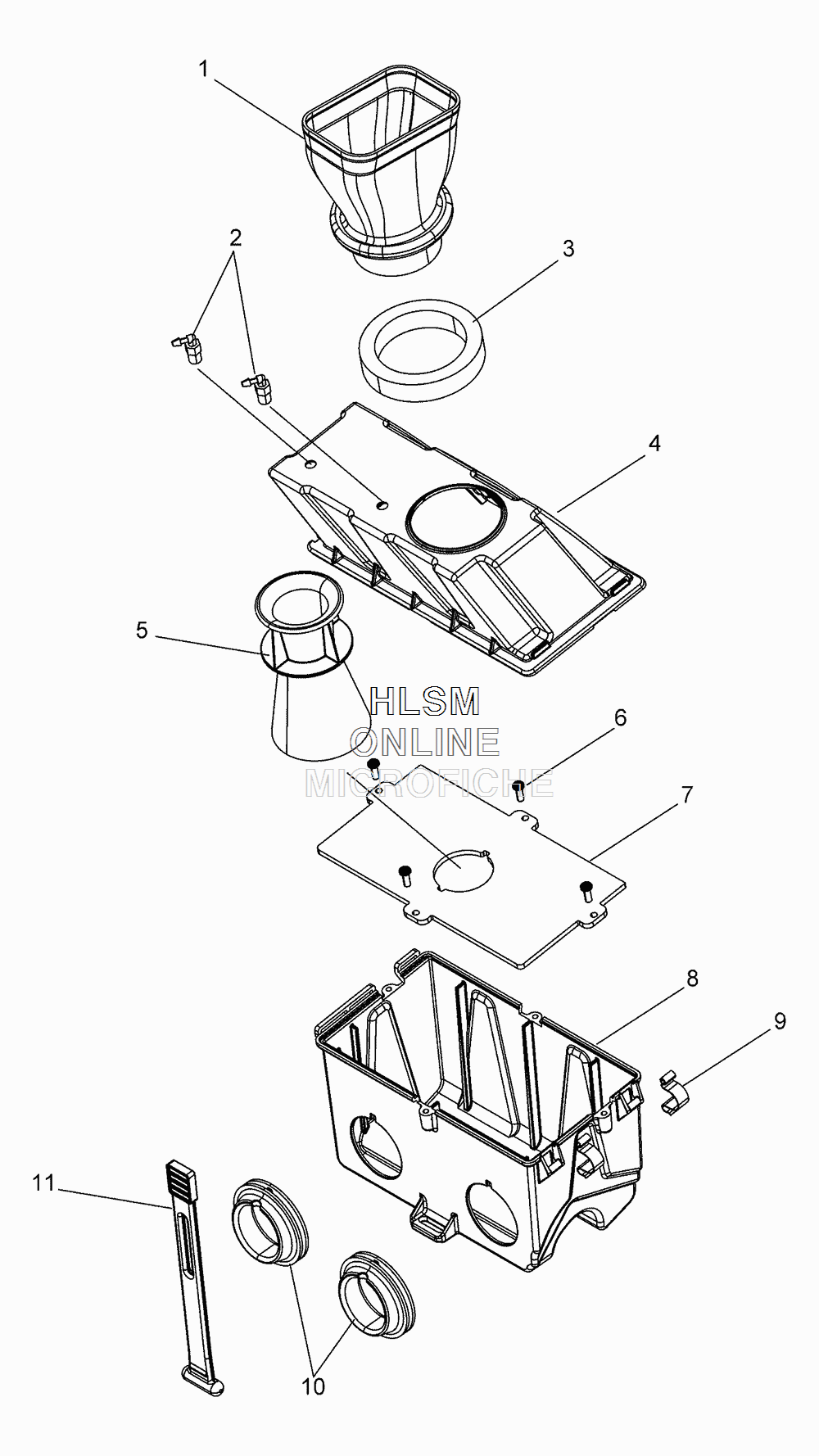

AIR BOX для Polaris 550 LXT [S16CT5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
15438989 TUBE, INTAKETUBE, INTAKE
-
27052564 FITTINGFITTING
-
35813756 FOAM, TUBE/AIRBOXFOAM, TUBE/AIRBOX
-
41205008 ASM., AIRBOX TOP, 550 W/FITTINGSASM., AIRBOX TOP, 550 W/FITTINGS
-
55438303 TUBE, INTAKETUBE, INTAKE
-
67518577 SCREWSCREW
-
75439272 PLATE, AIRBOXPLATE, AIRBOX
-
85438988 AIRBOX, BOTTOMAIRBOX, BOTTOM
-
95242044 CLIP, AIRBOXCLIP, AIRBOX
-
105414370 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
115436090 STRAP, RUBBERSTRAP, RUBBER
