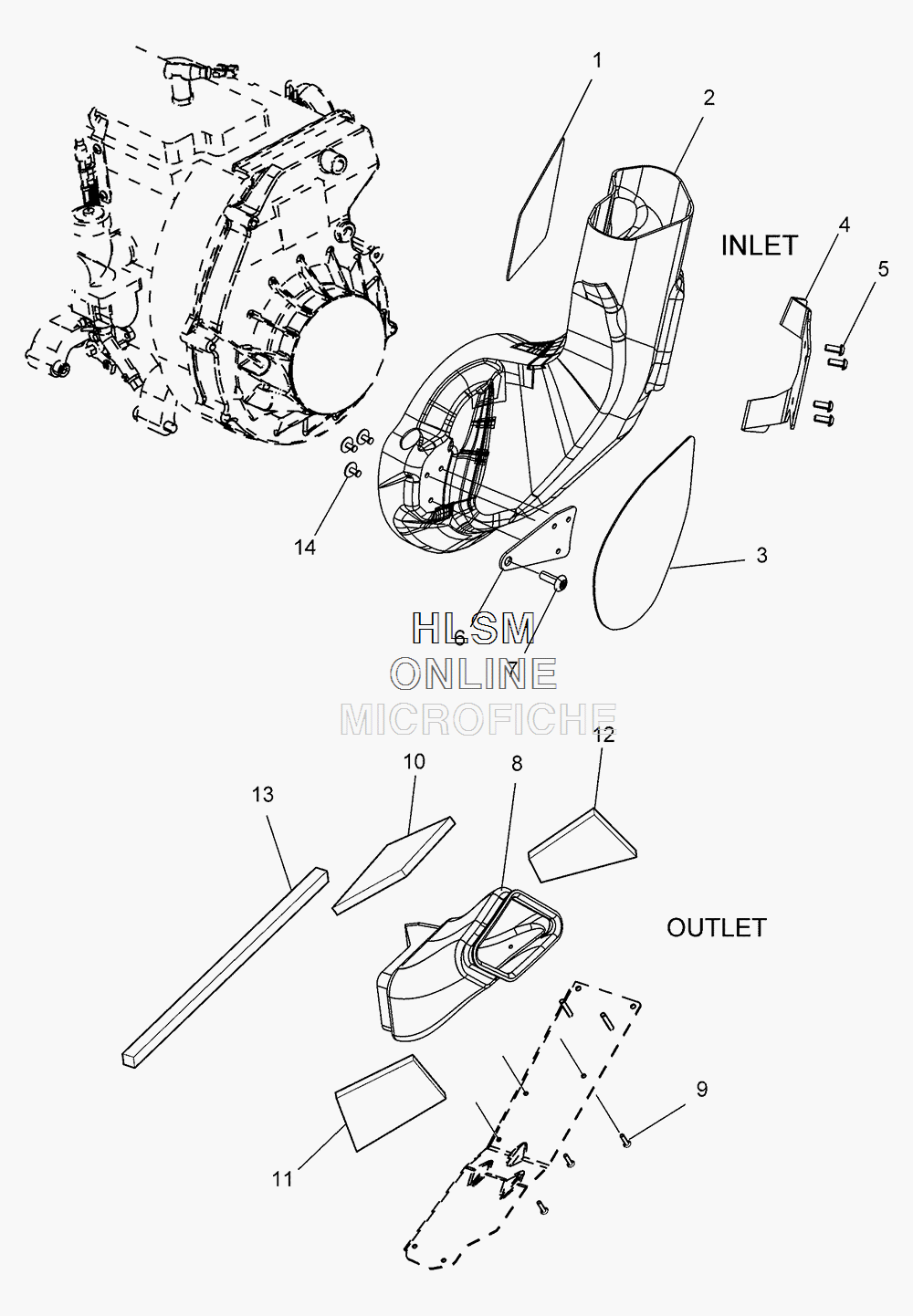

AIR INLET AND OUTLET DUCTS для Polaris 550 LXT [S16CT5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
15813990 FOIL, INLET DUCT, UPPERFOIL, INLET DUCT, UPPER
-
22635709 ASM., DUCT, INLET W/FOIL (INCL.1-7,14)ASM., DUCT, INLET W/FOIL (INCL.1-7,14)
-
35814300 FOIL, INLET DUCT, LOWERFOIL, INLET DUCT, LOWER
-
41021177 ASM., SIDE BRKT., UPPERASM., SIDE BRKT., UPPER
-
57518656 BOLTBOLT
-
65260417 BRACKET, LOWERBRACKET, LOWER
-
77518906 SCREWSCREW
-
82634934 ASM., AIR OUTLET DUCT (INCL. 10-12)ASM., AIR OUTLET DUCT (INCL. 10-12)
-
97621485 RIVET, BULBEXRIVET, BULBEX
-
105813926 FOAM, AIR OUT, TOPFOAM, AIR OUT, TOP
-
115813927 FOAM, AIR OUT, FRONTFOAM, AIR OUT, FRONT
-
125813928 FOAM, AIR OUT, REARFOAM, AIR OUT, REAR
-
135813744 FOAM, DUCTFOAM, DUCT
-
147621467 RIVETRIVET
