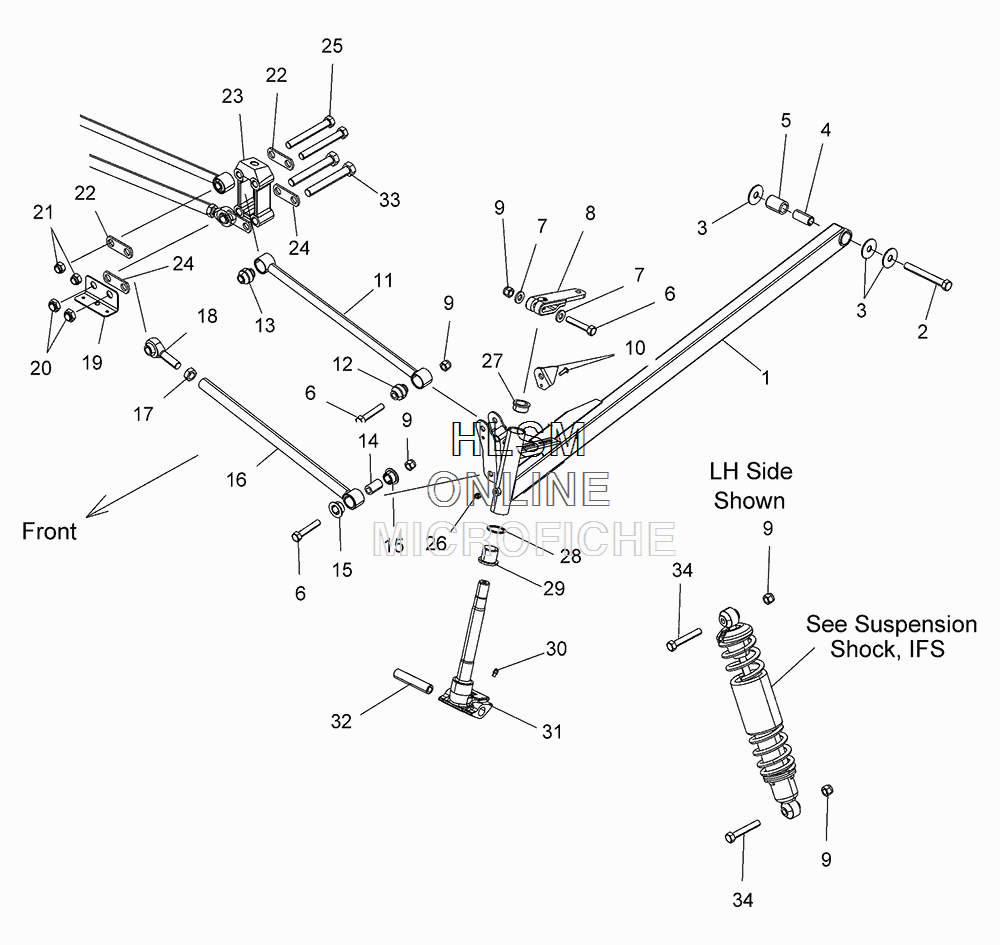

SUSPENSION - FRONT для Polaris 550 WIDETRAK LX INTL [S16SU5BEL] - 2016 года выпуска
-
№АртикулНазвание
-
11824069-458 ASM., TRAILING ARM LEFT, BLACK (INCL. 4,5)ASM., TRAILING ARM LEFT, BLACK (INCL. 4,5)
-
11824070-458 ASM., TRAILING ARM RIGHT, BLACK (INCL. 4,5)ASM., TRAILING ARM RIGHT, BLACK (INCL. 4,5)
-
27519798 SCREWSCREW
-
37556156 WASHERWASHER
-
45010310 BUSHINGBUSHING
-
55410872 PIVOT, RUBBERPIVOT, RUBBER
-
67517583 SCREWSCREW
-
77555832 WASHERWASHER
-
85220326-458 ARM, STEERING, BLACKARM, STEERING, BLACK
-
97542439 NUTNUT
-
105241569-458 STOP, STEERING LEFT, BLACKSTOP, STEERING LEFT, BLACK
-
105241570-458 STOP, STEERING RIGHT, BLACKSTOP, STEERING RIGHT, BLACK
-
107661130 RIVETRIVET
-
111822420-458 ASM., ROD, RADIUS, UPPER, FIXED, BLACK (INCL. 12,13)ASM., ROD, RADIUS, UPPER, FIXED, BLACK (INCL. 12,13)
-
125411099 BUSHING, RADIUS ROD PIVOTBUSHING, RADIUS ROD PIVOT
-
135411095 BUSHING, PIVOTBUSHING, PIVOT
-
145010127 BUSHINGBUSHING
-
155431486 BUSHING, PIVOT, RADIUS ROD, OUTERBUSHING, PIVOT, RADIUS ROD, OUTER
-
161822444-458 ROD, RADIUS, LOWER, BLACKROD, RADIUS, LOWER, BLACK
-
177542711 NUT, JAMNUT, JAM
-
187061071 ROD ENDROD END
-
195242578 BRKT., RADIUS ROD, BOTTOMBRKT., RADIUS ROD, BOTTOM
-
207547065 NUT, NYLONNUT, NYLON
-
217547066 NUT, NYLONNUT, NYLON
-
225211344 STRAP-SPACER, TOPSTRAP-SPACER, TOP
-
235630563 BLOCK-STEERING, CASTBLOCK-STEERING, CAST
-
245211345 STRAP-SPACER, BOTTOMSTRAP-SPACER, BOTTOM
-
257512410 SCREWSCREW
-
267080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
273573909 BUSHING, FLANGEBUSHING, FLANGE
-
287556509 BUSHINGBUSHING
-
293574208 BUSHING, FLANGEDBUSHING, FLANGED
-
307080306 FITTING, LUBRICATIONFITTING, LUBRICATION
-
316230102-458 SHAFT, SPINDLE, TRAILING, BLACKSHAFT, SPINDLE, TRAILING, BLACK
-
325010158 BUSHINGBUSHING
-
337512678 BOLTBOLT
-
347515415 SCREWSCREW
