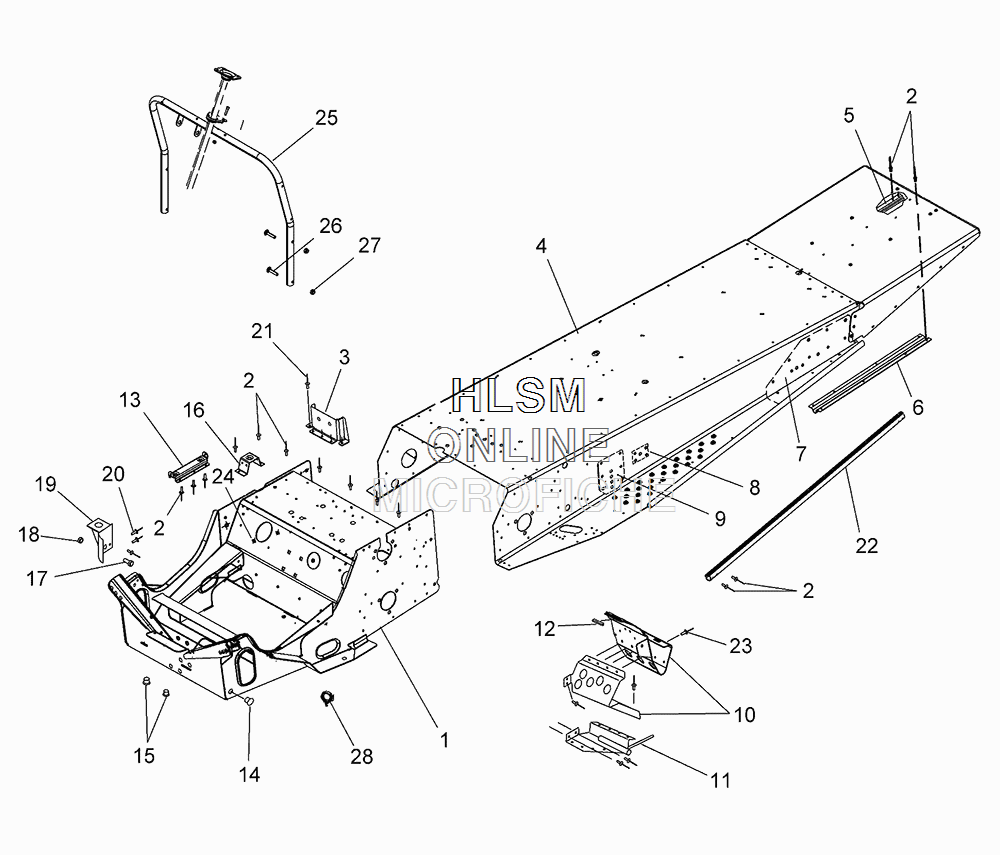

TUNNEL ASSEMBLY для Polaris 550 WIDETRAK LX INTL [S16SU5BEL] - 2016 года выпуска
-
№АртикулНазвание
-
11021132 BULKHEAD, WIDETRAK, VENTEDBULKHEAD, WIDETRAK, VENTED
-
27661637 RIVETRIVET
-
35221932-067 BRACKET, GAS TANK, BLACKBRACKET, GAS TANK, BLACK
-
41021323 ASM., TUNNEL, WIDETRAK, FCASM., TUNNEL, WIDETRAK, FC
-
55135872 STRIP, WEARSTRIP, WEAR
-
65222323 BRACKET, HARNESS PROTECTORBRACKET, HARNESS PROTECTOR
-
71015771-067 PAD, SUSPENSION, HEAVY DUTY LEFT, BLACKPAD, SUSPENSION, HEAVY DUTY LEFT, BLACK
-
71015772-067 PAD, SUSPENSION, HEAVY DUTY RIGHT, BLACKPAD, SUSPENSION, HEAVY DUTY RIGHT, BLACK
-
85250651-067 PLATE, TUNNEL, CARRIER, BLACKPLATE, TUNNEL, CARRIER, BLACK
-
95251431-067 PAD, SUSPENSION, FRONT, BLACKPAD, SUSPENSION, FRONT, BLACK
-
101021363 ASM., FOOTREST, LX LEFTASM., FOOTREST, LX LEFT
-
101021364 ASM., FOOTREST, LX RIGHTASM., FOOTREST, LX RIGHT
-
111021361-329 SUPPORT, TRAILING ARM LEFT, BLACKSUPPORT, TRAILING ARM LEFT, BLACK
-
111021362-329 SUPPORT, TRAILING ARM RIGHT, BLACKSUPPORT, TRAILING ARM RIGHT, BLACK
-
125521238 EXTRUSION, CLUTCH GUARDEXTRUSION, CLUTCH GUARD
-
135261147 MOUNT-RESONATOR,PLATEDMOUNT-RESONATOR,PLATED
-
147080416 PLUG, HOLEPLUG, HOLE
-
157080398 PLUG, HOLEPLUG, HOLE
-
165252830 BRKT., STANDOFFBRKT., STANDOFF
-
177512307 SCREWSCREW
-
187542321 NUT, FLANGENUT, FLANGE
-
191012079-067 SUPPORT, MUFFLER, BLACKSUPPORT, MUFFLER, BLACK
-
207661130 RIVETRIVET
-
217621330 RIVETRIVET
-
225243112 GRIP-TUNNEL ROLLGRIP-TUNNEL ROLL
-
237661846 RIVET, BLACKRIVET, BLACK
-
247670067 CLIP, DARTCLIP, DART
-
251012729-067 HOOP, STEERING, BLACKHOOP, STEERING, BLACK
-
267517931 BOLT, CARRIAGEBOLT, CARRIAGE
-
277542122 NUTNUT
-
284020149 CLIP, ROSEBUDCLIP, ROSEBUD
Все узлы модели:
- AIR INLET AND OUTLET DUCTS
- AIR INTAKE SYSTEM
- BACKREST ASSEMBLY
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR W/CHOKE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD
- CONSOLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVE SHAFT ASSY.
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- GEARCASE ASSEMBLY
- GEARCASE MOUNTING
- HEADLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD W/HINGE AND BRACE ASSEMBLY
- NOSEPAN W/FOIL ASSEMBLY
- NOSEPAN/BUMPER
- OIL PUMP
- OIL TANK
- RACK ASSEMBLY W/SNOWFLAP
- RECOIL STARTER W/BLOWER HOUSING
- SEAT ASSEMBLY
- SEAT RISER
- SHIFT LINKAGE
- SKI ASSEMBLY
- SPEEDOMETER W/INDICATOR LIGHTS
- STARTER MOTOR
- STEERING - H-BAR- STEERING POST
- STEERING - LOWER
- SUSPENSION - COUPLER LINK
- SUSPENSION - EXTENSION
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- TAILLIGHT
- TOOL KIT W/OWNERS MANUAL
- TORQUE ARM - REAR W/ PIVOT ARM
- • TUNNEL ASSEMBLY
- WIRE HARNESS W/COMPONENTS
