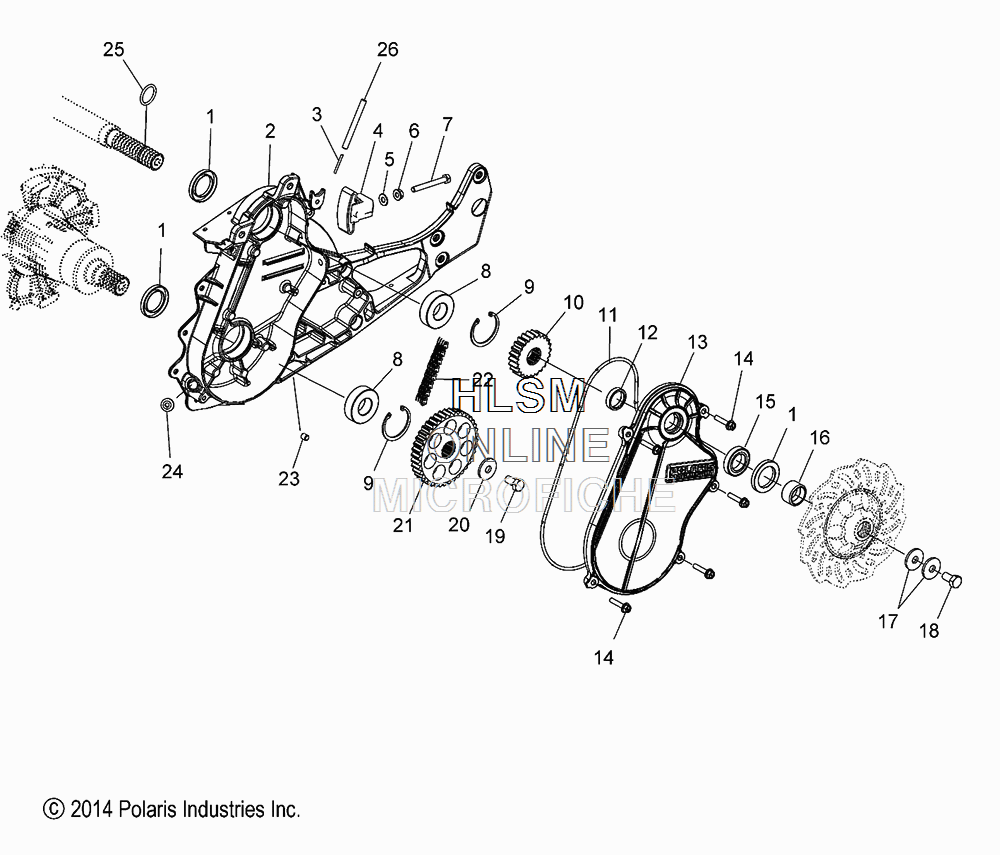

CHAINCASE ASSEMBLY для Polaris 600 RMK 144 ES (INDY RED) [EEG6PSL] - 2017 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
21333119 ASM., CHAINCASE [REQUIRES ADHESIVE, INCL. BEARINGS,SEALS]ASM., CHAINCASE [REQUIRES ADHESIVE, INCL. BEARINGS,SEALS]
-
35334764 TUBE, VENTTUBE, VENT
-
41332427 ASM., TIGHTENER, CHAINASM., TIGHTENER, CHAIN
-
57556340 WASHER, THREAD SEALWASHER, THREAD SEAL
-
67547017 NUT, HEXNUT, HEX
-
77519938 SCREWSCREW
-
83514309 BEARING, BALLBEARING, BALL
-
97718406 RING, RETAININGRING, RETAINING
-
103221095 SPROCKET, 19T, 3/4WSPROCKET, 19T, 3/4W
-
115814028 GASKET, CHAINCASE COVERGASKET, CHAINCASE COVER
-
125137587 SLEEVE, CHAINCASESLEEVE, CHAINCASE
-
131333118 ASM., CHAINCASE COVER [INCL. 1,15]ASM., CHAINCASE COVER [INCL. 1,15]
-
147518993 SCREWSCREW
-
153514643 BEARING, BALLBEARING, BALL
-
165136533 SLEEVE, SEALSLEEVE, SEAL
-
177556490 WASHERWASHER
-
187518760 BOLTBOLT
-
197519004 SCREWSCREW
-
207556130 WASHER, BELLEWASHER, BELLE
-
213222099 SPROCKET, 40TSPROCKET, 40T
-
223221112 CHAIN, 68P, 3/4WCHAIN, 68P, 3/4W
-
237663007 DOWEL, HOLLOWDOWEL, HOLLOW
-
247052458 PLUG, MAGNETICPLUG, MAGNETIC
-
255413563 O-RINGO-RING
-
268450061-600 LINE, OIL, 600 CM, SERVICELINE, OIL, 600 CM, SERVICE
