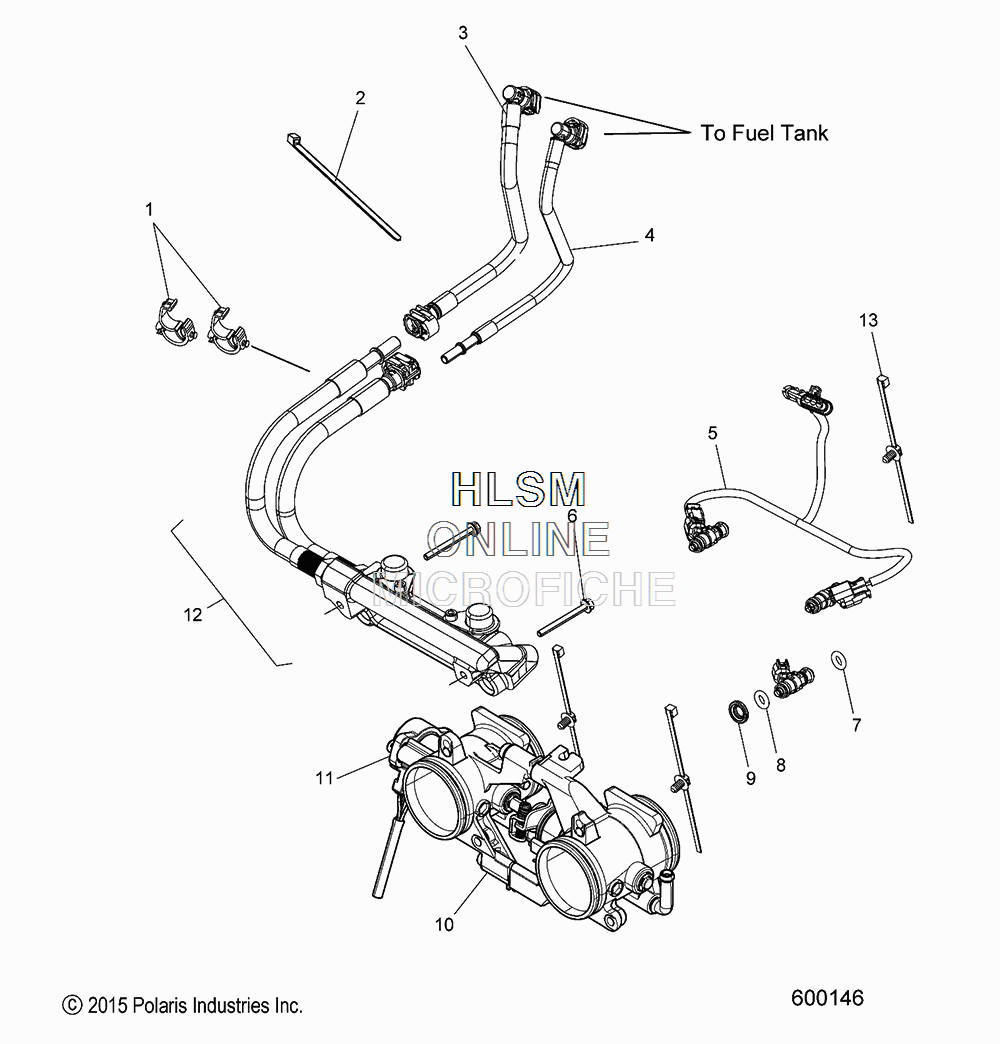

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 RMK 144 ES (INDY RED) [EEG6PSL] - 2017 года выпуска
-
№АртикулНазвание
-
17081871 CLIP, HARNESS, INTERLOCKCLIP, HARNESS, INTERLOCK
-
27080356 CABLE TIECABLE TIE
-
32521345 ASM., FUEL LINE RETURNASM., FUEL LINE RETURN
-
42521344 ASM., FUEL LINE SUPPLYASM., FUEL LINE SUPPLY
-
54014242 HARNESS, INJECTOR WITH LEADHARNESS, INJECTOR WITH LEAD
-
67517985 SCREWSCREW
-
71500198 O-RINGO-RING
-
85412891 O-RINGO-RING
-
95436287 BUSHING, RUBBERBUSHING, RUBBER
-
101204920 ASM., THROTTLE BODY, 46MMASM., THROTTLE BODY, 46MM
-
122521382 ASM., FUEL RAIL, ASASM., FUEL RAIL, AS
-
137081496 CLIP, ROUTINGCLIP, ROUTING
Все узлы модели:
- AIR INTAKE SYSTEM
- BODY- SEAT
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ELECTRICAL- BATTERY AND CABLES (E.S. ONLY)
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS W/ NOSEPAN ASM.
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- OIL BOTTLE ASSEMBLY
- OIL PUMP W/LINES
- REED VALVE W/THROTTLE BODY ADAPTOR
- SHOCK - FRONT
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- STEERING - UPPER W/ HANDLEBAR ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- • THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOLS- BELT HOLDER- TOOLS- AND OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
