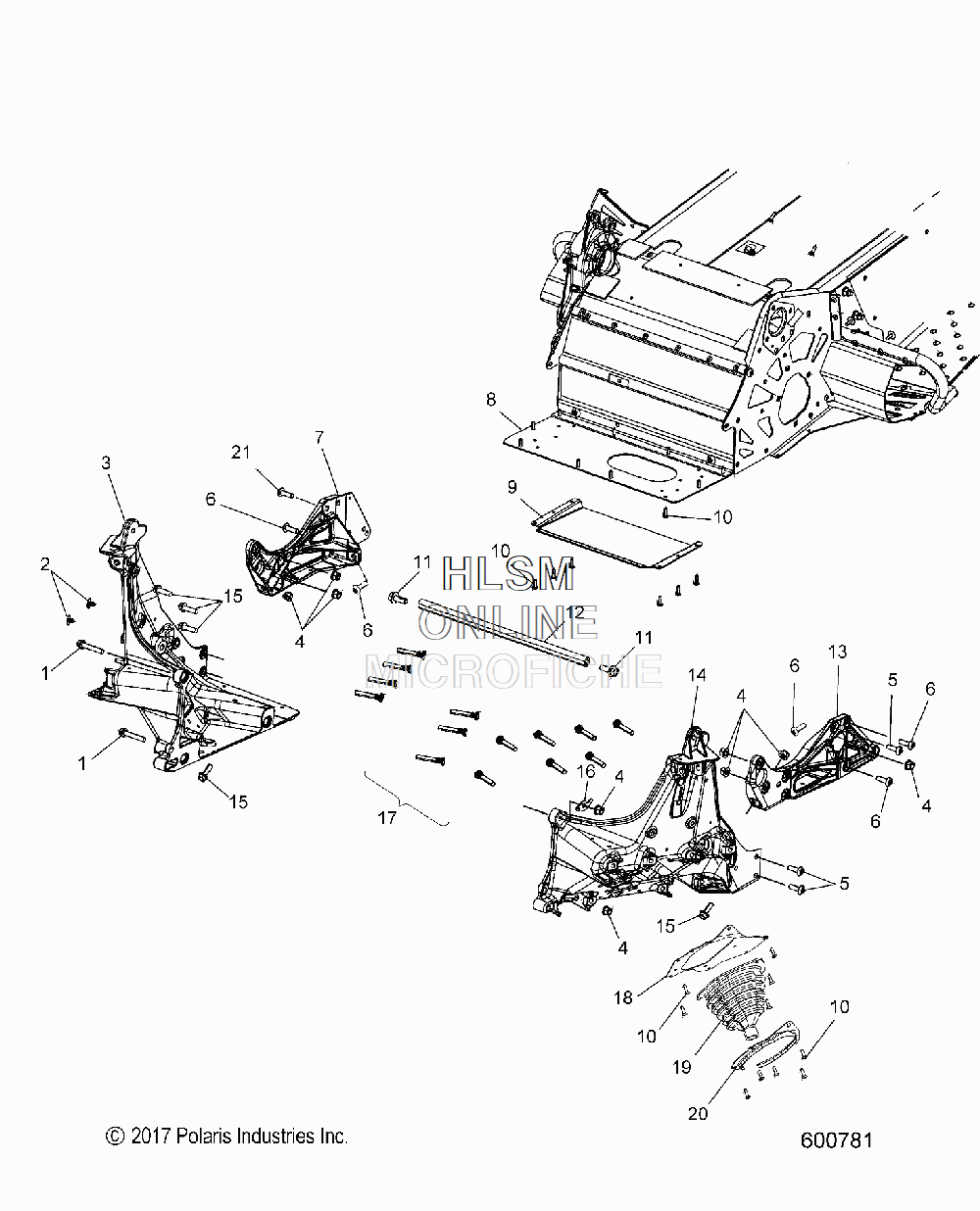

BULKHEAD ASSEMBLY для Polaris 550 INDY ADVENTURE 144 ES (S18CEE5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
-2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
-
-2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
-
-2204172 KIT, LORD, MIX NOZZLES, 12 PIECEKIT, LORD, MIX NOZZLES, 12 PIECE
-
17516732 SCREWSCREW
-
27670067 CLIP, DART, NYLONCLIP, DART, NYLON
-
31018222 ASM., CLIP, F/C, RH (INCL. 17) [REQUIRES ADHESIVE)ASM., CLIP, F/C, RH (INCL. 17) [REQUIRES ADHESIVE)
-
47547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
57519070 SCR-TXTH-M8X1.25X25 8.8 ZODP30SCR-TXTH-M8X1.25X25 8.8 ZODP30
-
67518906 SCR-M8X1.25X25 8.8TXTR ZOD P80SCR-M8X1.25X25 8.8TXTR ZOD P80
-
75138693 BRACE, LOWER, RH (REQUIRES ADHESIVE)BRACE, LOWER, RH (REQUIRES ADHESIVE)
-
85256779 FLOOR, BULKHEAD, VENTEDFLOOR, BULKHEAD, VENTED
-
95256780 VENT, FLOORVENT, FLOOR
-
107661637 RIVETRIVET
-
117518934 SCR-M10X1.5X25-8.8 HFS ZODSCR-M10X1.5X25-8.8 HFS ZOD
-
125137910 TUBE, CROSSTUBE, CROSS
-
131017942 ASM., BRACE, LOWER, LH (REQUIRES ADHESIVE) [INCL. SLEEVE)ASM., BRACE, LOWER, LH (REQUIRES ADHESIVE) [INCL. SLEEVE)
-
141018221 ASM., CLIP, F/C, LH (INCL. 17) [REQUIRES ADHESIVE)ASM., CLIP, F/C, LH (INCL. 17) [REQUIRES ADHESIVE)
-
157519243 SCREWSCREW
-
165252680 BRKT., PIPE/CHASSISBRKT., PIPE/CHASSIS
-
177519204 STUDSTUD
-
185255215 REINFORCEMENT, CLIP, PLATED, LHREINFORCEMENT, CLIP, PLATED, LH
-
185255216 REINFORCEMENT, CLIP, PLATED, RHREINFORCEMENT, CLIP, PLATED, RH
-
195414360 BOOT, TIE RODBOOT, TIE ROD
-
205255478-067 PLATE, BOOT SEAL, LH, BLKPLATE, BOOT SEAL, LH, BLK
-
205255479-067 PLATE, BOOT SEAL, RH, BLKPLATE, BOOT SEAL, RH, BLK
-
217518953 SCR-M8X1.25X30 8.8 TR/TX ZODSCR-M8X1.25X30 8.8 TR/TX ZOD
