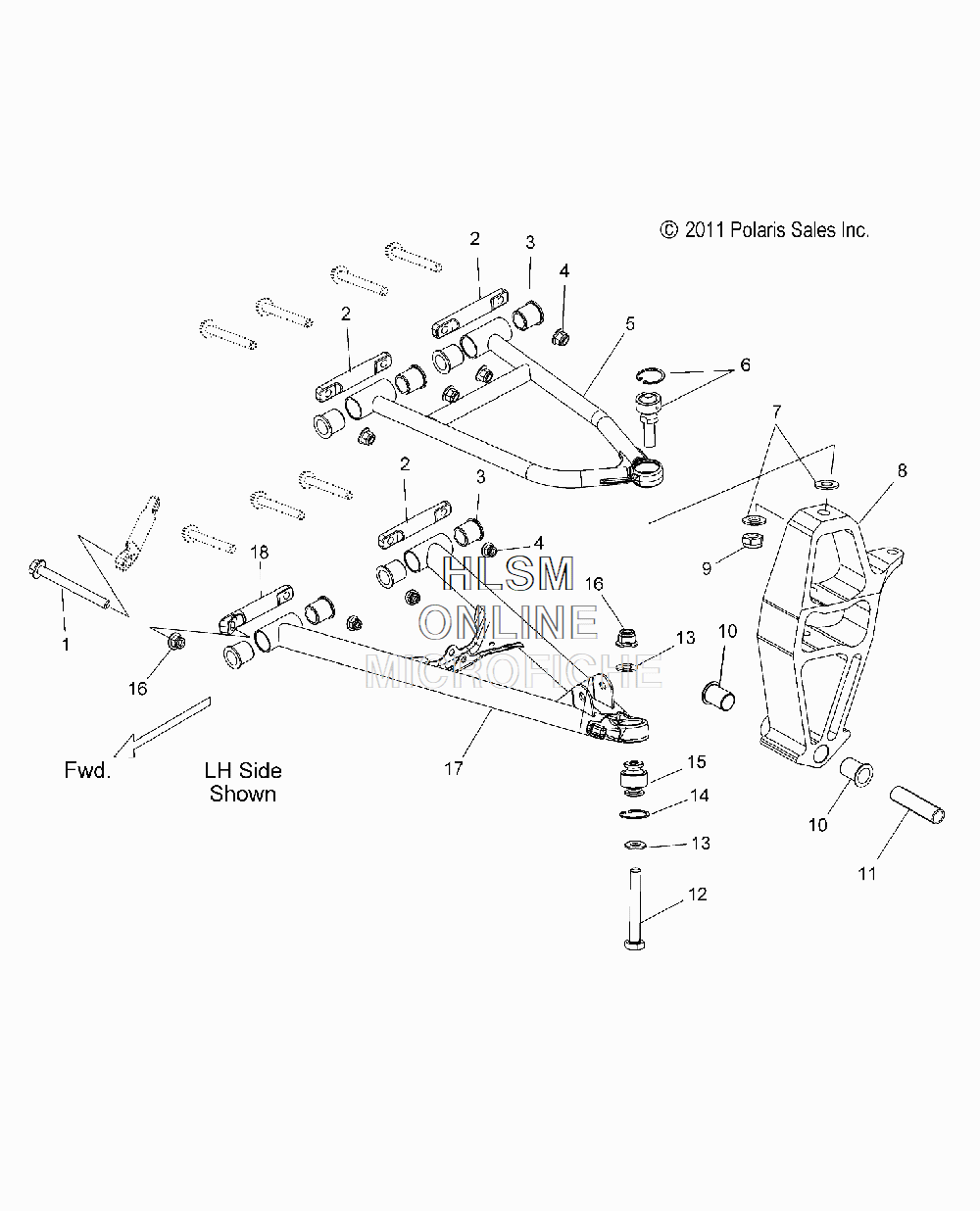

CONTROL ARMS W/SPINDLE для Polaris 550 INDY ADVENTURE 144 ES (S18CEE5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
17518917 SCREWSCREW
-
25141028 SHAFT, PIVOTSHAFT, PIVOT
-
35438792 BUSHING, PIVOTBUSHING, PIVOT
-
47547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
51823810-067 UPPER CONTROL ARM, RH, BLACK (CONTROL ARM ONLY)UPPER CONTROL ARM, RH, BLACK (CONTROL ARM ONLY)
-
51823809-067 UPPER CONTROL ARM, LH, BLACK (CONTROL ARM ONLY)UPPER CONTROL ARM, LH, BLACK (CONTROL ARM ONLY)
-
67710642 RING, RETAININGRING, RETAINING
-
67061179 BEARING, SPHERICAL, UPPER CONTROL ARMBEARING, SPHERICAL, UPPER CONTROL ARM
-
77556212 WASHERWASHER
-
81823876 ASM., SPINDLE, F/C, RH (INCL. 10)ASM., SPINDLE, F/C, RH (INCL. 10)
-
81823875 ASM., SPINDLE, F/C, LH (INCL. 10)ASM., SPINDLE, F/C, LH (INCL. 10)
-
97547464 NUT, NYLOKNUT, NYLOK
-
105438460 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
115136910 BUSHINGBUSHING
-
127519015 SCREWSCREW
-
137555806 WASHERWASHER
-
147710539 RING, RETAININGRING, RETAINING
-
152204229 KIT, SPHERICAL BEARING, LOWERKIT, SPHERICAL BEARING, LOWER
-
167547423 NUT, ZOD, NYLOKNUT, ZOD, NYLOK
-
171823805-067 LOWER CONTROL ARM, LH, BLACK (CONTROL ARM ONLY)LOWER CONTROL ARM, LH, BLACK (CONTROL ARM ONLY)
-
171823806-067 LOWER CONTROL ARM, RH, BLACK (CONTROL ARM ONLY)LOWER CONTROL ARM, RH, BLACK (CONTROL ARM ONLY)
-
185141029 SHAFT, PIVOT, LOWER CONTROL ARM, FRONTSHAFT, PIVOT, LOWER CONTROL ARM, FRONT
