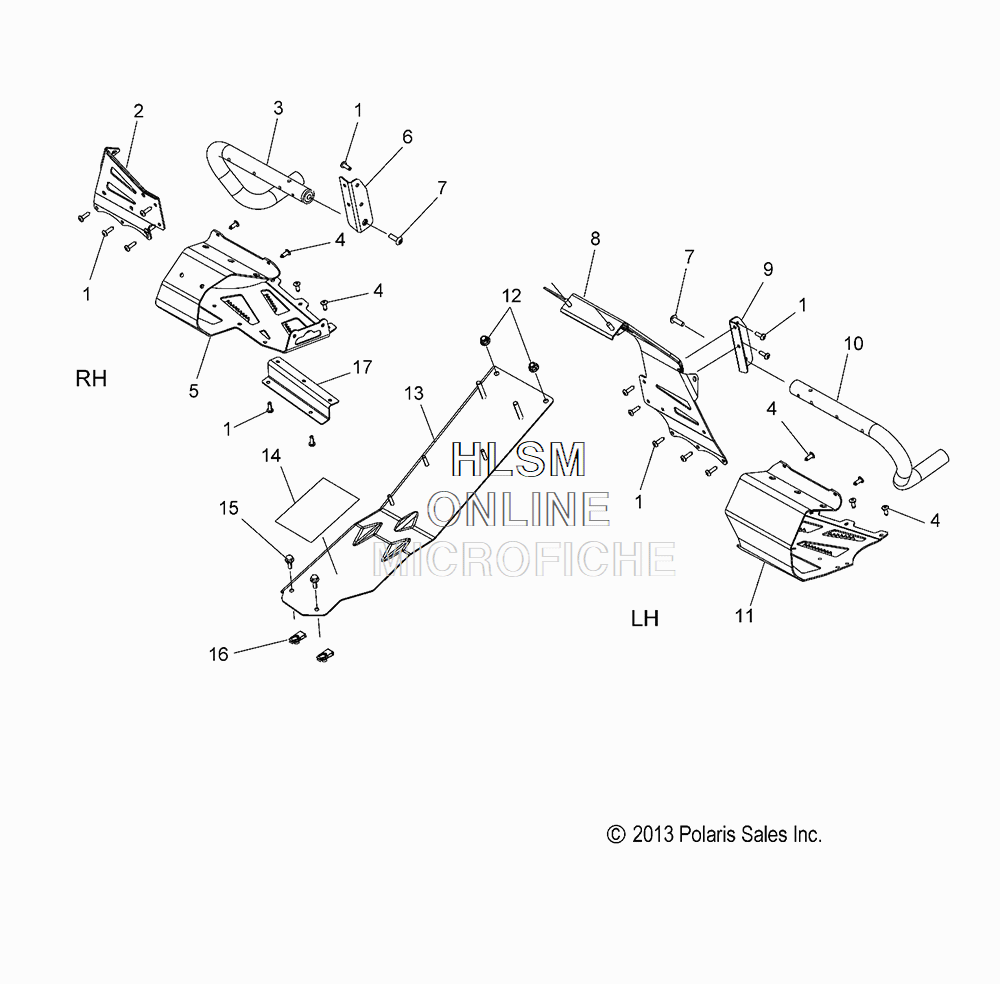

CLUTCH GUARD W/FOOTREST для Polaris 550 VOYAGEUR 144 ES (INDY RED) (S18CEF5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
17661637 RIVETRIVET
-
21016356 ASM., FOOTREST, RIGHT HANDASM., FOOTREST, RIGHT HAND
-
31018311 ASM., FOOTREST TUBE, RIGHT HANDASM., FOOTREST TUBE, RIGHT HAND
-
47661973 RIVET-4.8MM DIARIVET-4.8MM DIA
-
55262305 FOOTREST-RIGHT HAND LOWERFOOTREST-RIGHT HAND LOWER
-
65255426 BRKT. FOOTREST TUBE, RIGHT HANDBRKT. FOOTREST TUBE, RIGHT HAND
-
77518906 SCREWSCREW
-
81018137 ASM., FOOTREST, LEFT HANDASM., FOOTREST, LEFT HAND
-
95255210 BRKT. FOOTREST TUBE, LEFT HANDBRKT. FOOTREST TUBE, LEFT HAND
-
101018310 ASM., FOOTREST TUBE, LEFT HANDASM., FOOTREST TUBE, LEFT HAND
-
115262292 FOOTREST-LEFT HAND LOWERFOOTREST-LEFT HAND LOWER
-
127547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
131018231 ASM., BELT GUARDASM., BELT GUARD
-
147176327 DECAL, CLUTCH WARN/BELT RMVLDECAL, CLUTCH WARN/BELT RMVL
-
157518613 SCREWSCREW
-
167547366 CLIP, "U", M6CLIP, "U", M6
-
175255169 SUPPORT, FOOTREST, RIGHT HANDSUPPORT, FOOTREST, RIGHT HAND
