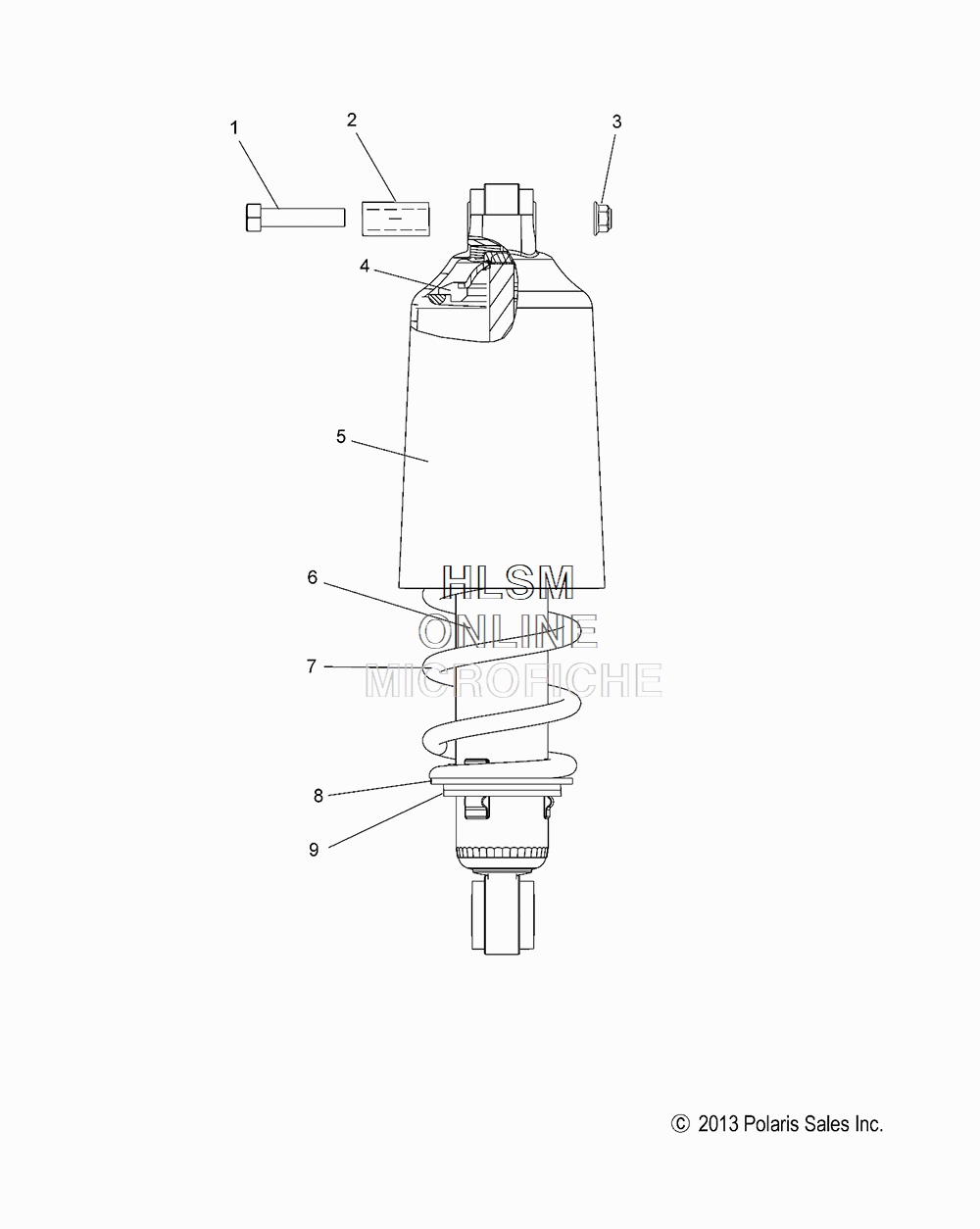

SUSPENSION - FRONT SHOCK TRACK для Polaris 550 VOYAGEUR 144 ES (INDY RED) (S18CEF5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
17519097 SCREWSCREW
-
25137230 BUSHINGBUSHING
-
37547480 NUTNUT
-
45020618 RETAINER, SLOTTED SPRINGRETAINER, SLOTTED SPRING
-
55437525 SHIELD, SPRINGSHIELD, SPRING
-
67043995 SHOCK, FRONT TRACK, INDYSHOCK, FRONT TRACK, INDY
-
77043678-329 SPRING, COMPRESSION, 150LB, BLACKSPRING, COMPRESSION, 150LB, BLACK
-
85245067 RETAINER, SPRING, PLATEDRETAINER, SPRING, PLATED
-
95210953 RETAINER, SPRINGRETAINER, SPRING
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BATTERY BOX
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- MULTI-FUNCTION GAUGE
- NOSEPAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- RECOIL STARTER W/BLOWER HOUSING
- SEAT W/ REAR RACK
- SKI ASSEMBLY
- STARTING MOTOR
- STEERING - H-BAR- STEERING POST- AND TIE RODS
- • SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
