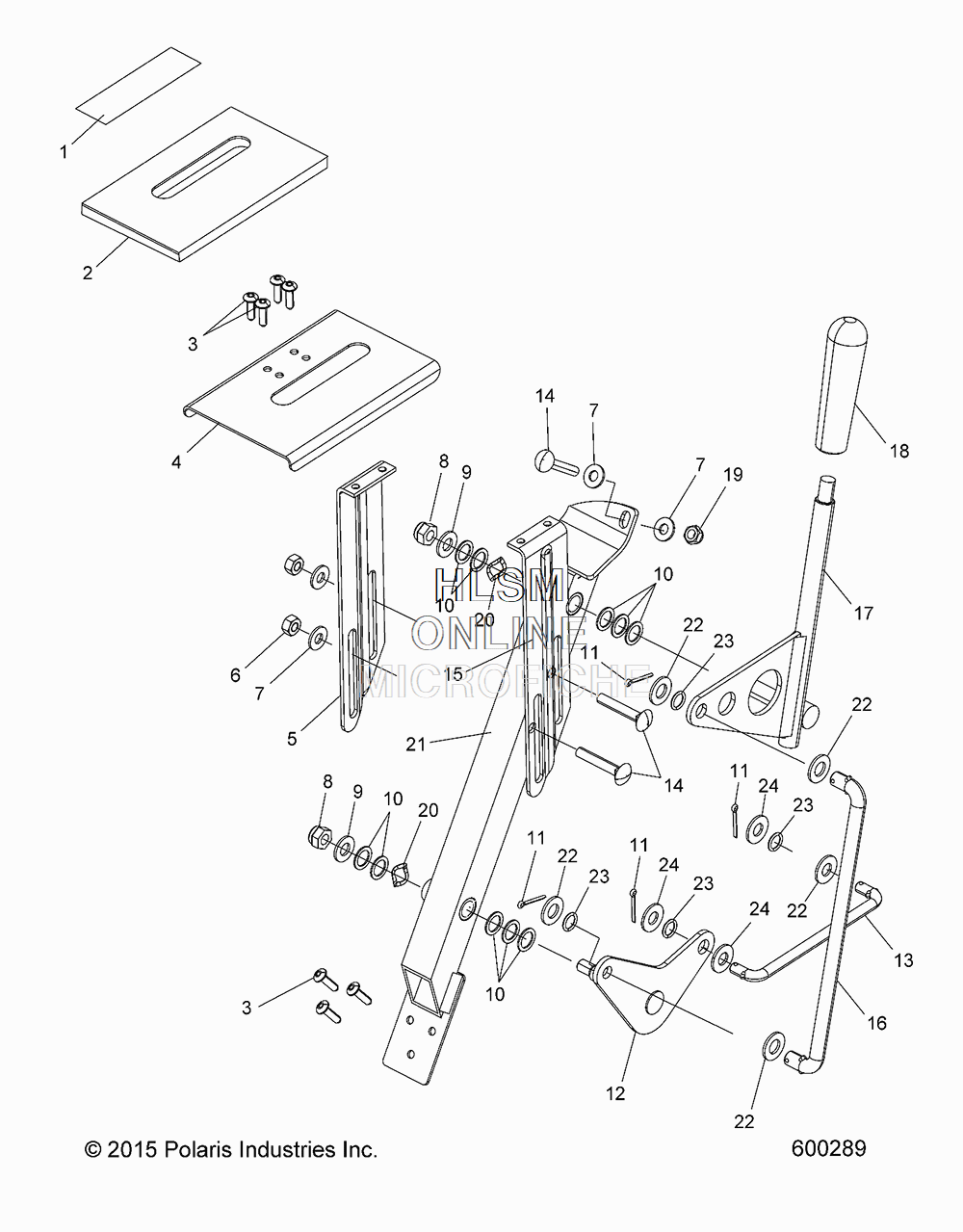

SHIFT LINKAGE для Polaris 550 WIDETRAK LX ES INTL (S18SJA5BEL) - 2018 года выпуска
-
№АртикулНазвание
-
17182355 DECAL, SHIFT PATTERN, PERCDECAL, SHIFT PATTERN, PERC
-
25813233 FOAM, INDICATOR PLATEFOAM, INDICATOR PLATE
-
37661637 RIVETRIVET
-
45243204 PLATE, INDICATORPLATE, INDICATOR
-
55241897 SUPPORT, INDICATOR PLATE, RIGHT HANDSUPPORT, INDICATOR PLATE, RIGHT HAND
-
67542101 NUTNUT
-
77558301 WASHER, FLATWASHER, FLAT
-
87542324 NUT, NYLOKNUT, NYLOK
-
97558402 WASHER, FLATWASHER, FLAT
-
107555820 WASHER, FLATWASHER, FLAT
-
117661900 PIN, COTTERPIN, COTTER
-
121012558 PLATE, PIVOT, LOWERPLATE, PIVOT, LOWER
-
135224770 ROD, LINKAGE, LOWERROD, LINKAGE, LOWER
-
147517931 BOLT, CARRIAGEBOLT, CARRIAGE
-
155241896 SUPPORT, INDICATOR PLATE, LEFT HANDSUPPORT, INDICATOR PLATE, LEFT HAND
-
165224769 ROD, LINKAGE, UPPERROD, LINKAGE, UPPER
-
171341250 ROD, SHIFT LEVERROD, SHIFT LEVER
-
185132004 HANDLE, SHIFTHANDLE, SHIFT
-
197542122 NUT, NYLOKNUT, NYLOK
-
207571619 WASHER, WAVEWASHER, WAVE
-
211012559 SUPPORT, SHIFT LEVER RODSUPPORT, SHIFT LEVER ROD
-
227556188 WASHER, FLATWASHER, FLAT
-
235410542 O-RINGO-RING
-
247555954 WASHERWASHER
