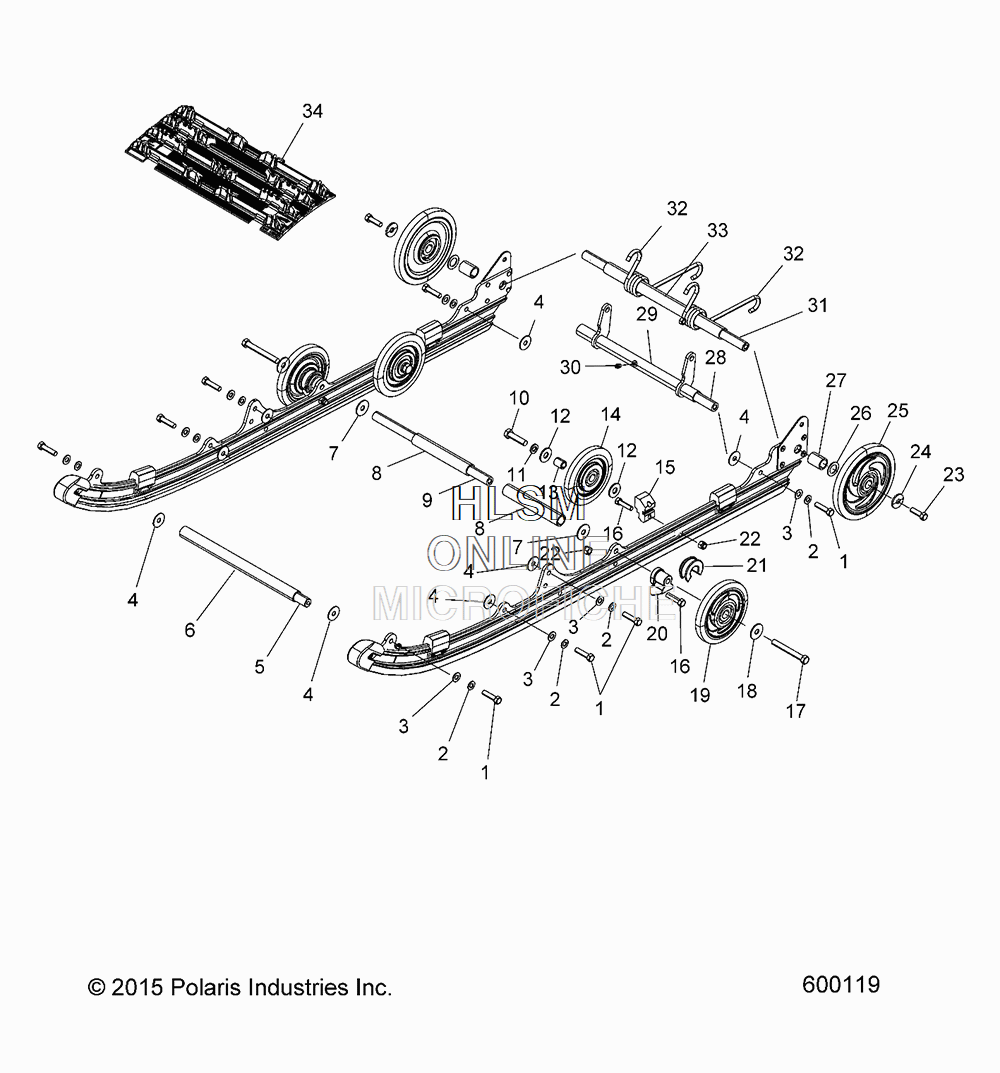

SUSPENSION - REAR для Polaris 550 WIDETRAK LX ES INTL (S18SJA5BEL) - 2018 года выпуска
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37556153 WASHERWASHER
-
47556256 WASHERWASHER
-
55132742 SHAFT, PIVOTSHAFT, PIVOT
-
65433977 SLEEVE, PIVOT SHAFTSLEEVE, PIVOT SHAFT
-
77555883 WASHERWASHER
-
85338892 SPACERSPACER
-
95139901 SHAFT, REAR SHOCKSHAFT, REAR SHOCK
-
107512659 SCREWSCREW
-
117553201 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
127555804 WASHERWASHER
-
135332786 SPACERSPACER
-
147718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
143514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
145431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
141590357 ASM., WHEEL W/INSERTASM., WHEEL W/INSERT
-
155130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
167512404 BOLTBOLT
-
177520270 SCREWSCREW
-
187556156 WASHERWASHER
-
193514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
191590552-070 ASM., WHEEL, 5.62 W/SPACERASM., WHEEL, 5.62 W/SPACER
-
197718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
205630399 SPACER, BOGIE WHEELSPACER, BOGIE WHEEL
-
215431366 ROLLER, SPRINGROLLER, SPRING
-
227542439 NUTNUT
-
237517731 BOLTBOLT
-
247556130 WASHER, BELLEWASHER, BELLE
-
257718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
251590276-070 ASM., IDLER WHEEL, SCROLLED, BLACKASM., IDLER WHEEL, SCROLLED, BLACK
-
253514303 BEARINGBEARING
-
267556301 WASHER (1 PER WHEEL)WASHER (1 PER WHEEL)
-
275330171-067 TUBE, SPACER OUTSIDE CENTERTUBE, SPACER OUTSIDE CENTER
-
287556256 WASHERWASHER
-
285132239 SHAFTSHAFT
-
291540652-067 PIVOT ARM, REAR, BLACK (INCL. FITTING)PIVOT ARM, REAR, BLACK (INCL. FITTING)
-
307080424 FITTING,FITTING,
-
315020726 SHAFTSHAFT
-
327041231-067 SPRING, EXTENSION, REARSPRING, EXTENSION, REAR
-
335333014-067 SPACER, BLACKSPACER, BLACK
-
345414453 TRACK-20 IN X 156 IN X 1 IN, SHOCKWAVETRACK-20 IN X 156 IN X 1 IN, SHOCKWAVE
