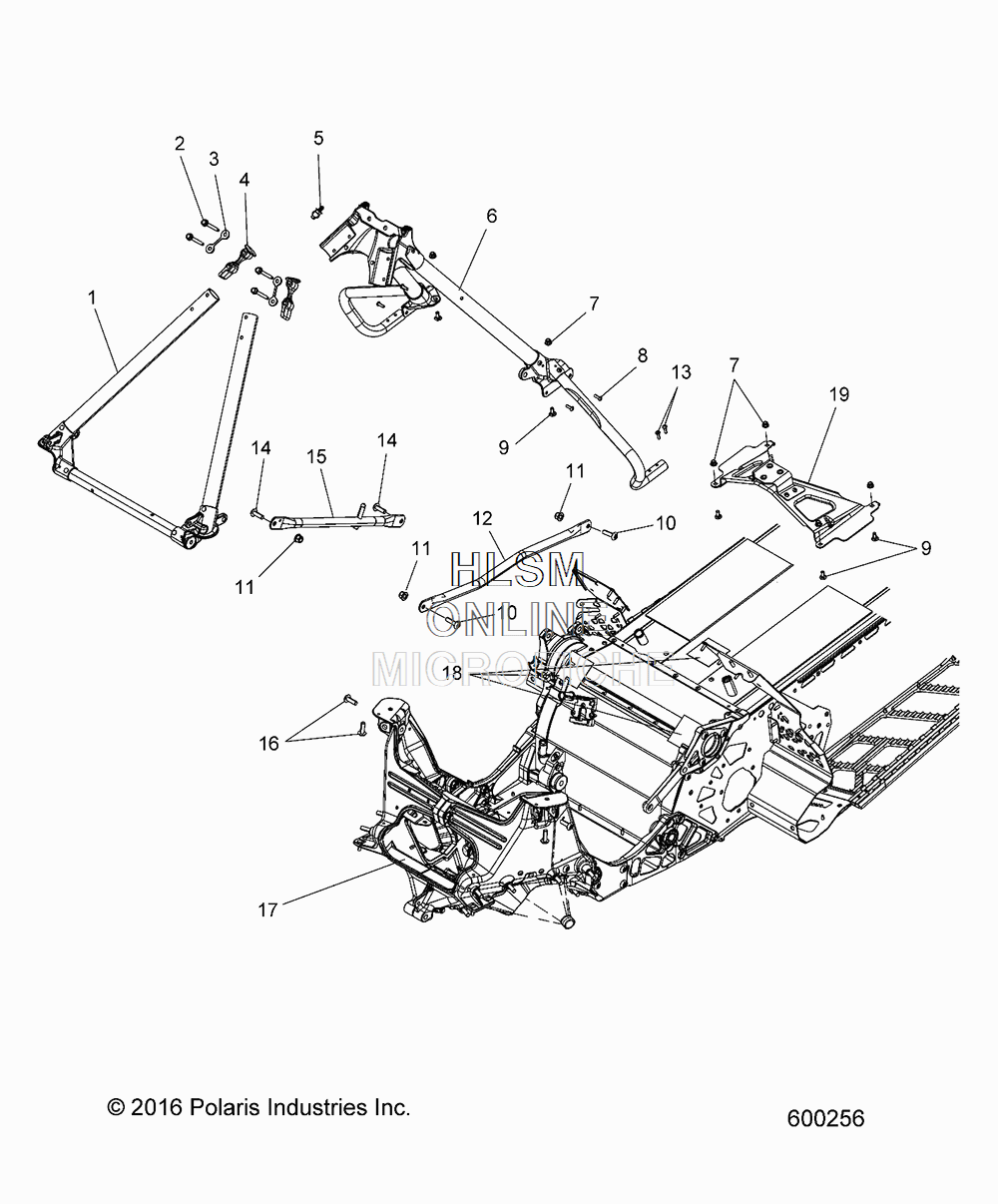

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 600 SWITCHBACK SP 144 ELECTRIC INTL (S18EER6PEL) - 2018 года выпуска
-
№АртикулНазвание
-
11021006 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
27519967 SCREWSCREW
-
35633083 SHIM-TUBE, CAST, 31.76 DIASHIM-TUBE, CAST, 31.76 DIA
-
45633122 SPACER, TUBE CAST, 27.00 DIASPACER, TUBE CAST, 27.00 DIA
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
61021007 ASM., TUBE FRAME, REARASM., TUBE FRAME, REAR
-
77547453 NUT, HXFL NYLNUT, HXFL NYL
-
87661130 RIVETRIVET
-
97520194 SCREW-CARRIAGESCREW-CARRIAGE
-
107518953 SCREW-TR/TXSCREW-TR/TX
-
117547332 NUT-FLG NYLNUT-FLG NYL
-
125337391-329 TUBE-BRACE, LEFT HAND, BLACKTUBE-BRACE, LEFT HAND, BLACK
-
137661637 RIVETRIVET
-
147518906 SCREW-TXTRSCREW-TXTR
-
151019861-329 TUBE BRACE RIGHT HAND BLACKTUBE BRACE RIGHT HAND BLACK
-
167519070 SCREW-TXTHSCREW-TXTH
-
171023060-309 ASM., CHASSIS, CONV. 144 IN, NATURAL (INCL. BULKHEAD)ASM., CHASSIS, CONV. 144 IN, NATURAL (INCL. BULKHEAD)
-
171023056-309 ASM., TUNNEL, CONV. 144 IN, NATURAL (INCL. TUNNEL COOLER)ASM., TUNNEL, CONV. 144 IN, NATURAL (INCL. TUNNEL COOLER)
-
185814187 PAD, 2.5 IN X 2.5 INPAD, 2.5 IN X 2.5 IN
-
191021376-458 BRACKET, FUEL TANK, MATTE BLACKBRACKET, FUEL TANK, MATTE BLACK
