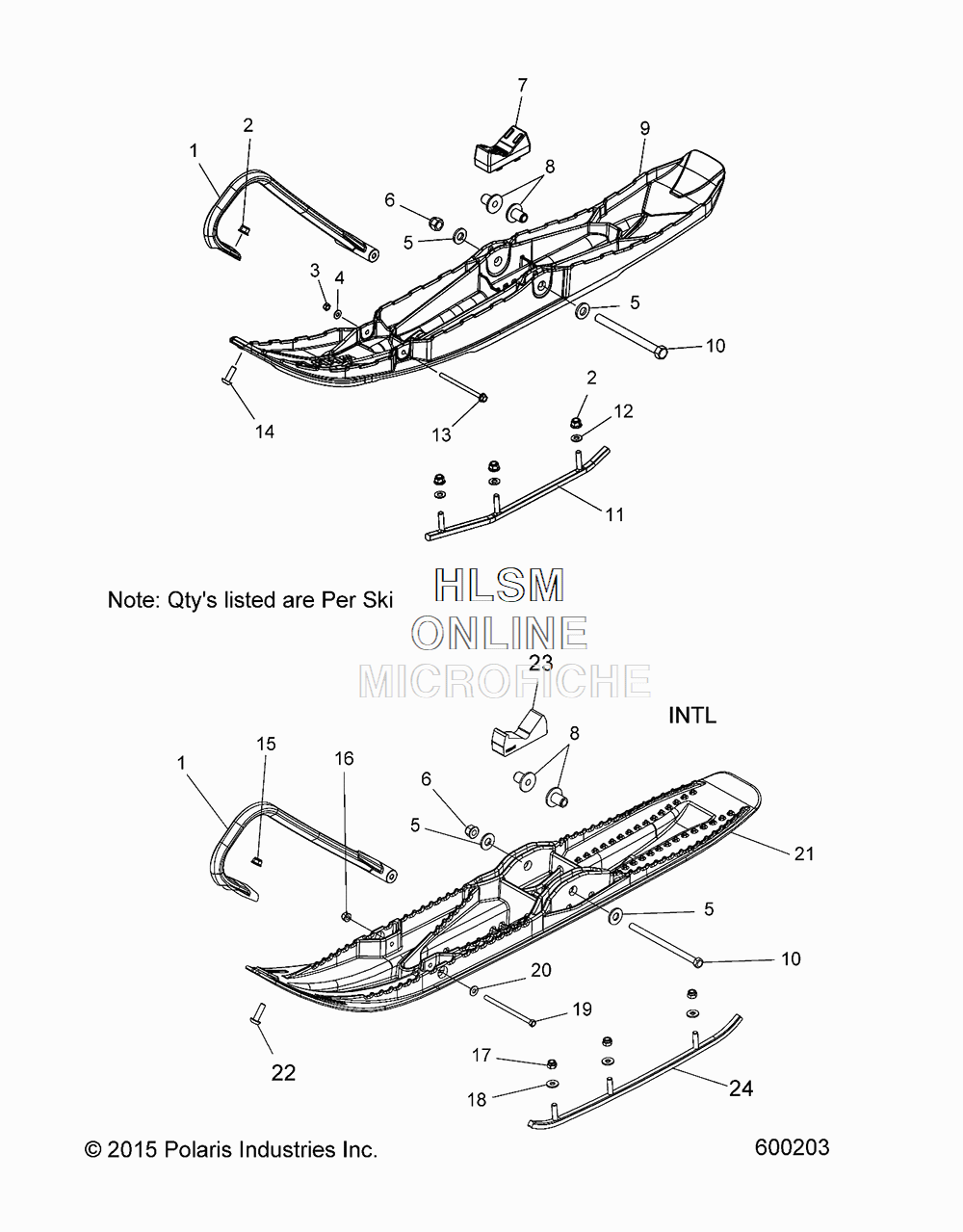

SKI ASSEMBLY для Polaris 600 SWITCHBACK SP 144 ELECTRIC INTL (S18EER6PEL) - 2018 года выпуска
-
№АртикулНазвание
-
15435681-133 TOE, PLASTIC SKI, WHITETOE, PLASTIC SKI, WHITE
-
27547332 NUT, FLANGE, NYLOK, M8NUT, FLANGE, NYLOK, M8
-
37547650 NUT, FLANGE, NYLOK, M6NUT, FLANGE, NYLOK, M6
-
47556737 WASHER, FLATWASHER, FLAT
-
57556130 WASHER, BELLEWASHER, BELLE
-
67547423 NUT, FLANGE NYLOK, M10NUT, FLANGE NYLOK, M10
-
75414375 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85136908 BUSHING, PLASTIC SKIBUSHING, PLASTIC SKI
-
91823916-070 ASM., SKI, SVC, BLACKASM., SKI, SVC, BLACK
-
107519098 SCREW, M10SCREW, M10
-
112879025 KIT, SKAG, 8 MM X 4 IN, 60 DEG X 3 STUD (PAIR)KIT, SKAG, 8 MM X 4 IN, 60 DEG X 3 STUD (PAIR)
-
127556524 WASHERWASHER
-
137520233 SCREW, M6SCREW, M6
-
147518906 SCREW, M8SCREW, M8
-
157542343 NUT, FLANGED NYLOK, 5/16 (INTL)NUT, FLANGED NYLOK, 5/16 (INTL)
-
167542153 NUT, NYLOK, FLANGED, 1/4 (INTL)NUT, NYLOK, FLANGED, 1/4 (INTL)
-
177542324 NUT, NYLOK, 5/16 (INTL)NUT, NYLOK, 5/16 (INTL)
-
187555843 WASHER (INTL)WASHER (INTL)
-
197518655 SCREW, 1/4 (INTL)SCREW, 1/4 (INTL)
-
207558301 WASHER (INTL)WASHER (INTL)
-
211823660-070 ASM., SKI, WIDE, SVC, BLACK (INTL)ASM., SKI, WIDE, SVC, BLACK (INTL)
-
227518070 SCREW, 5/16 (INTL)SCREW, 5/16 (INTL)
-
235415230 STOP, SKI RUBBER, RMK (INTL)STOP, SKI RUBBER, RMK (INTL)
-
242875723 KIT, SKAG, 3 IN, 60 DEG (PAIR) (INTL)KIT, SKAG, 3 IN, 60 DEG (PAIR) (INTL)
