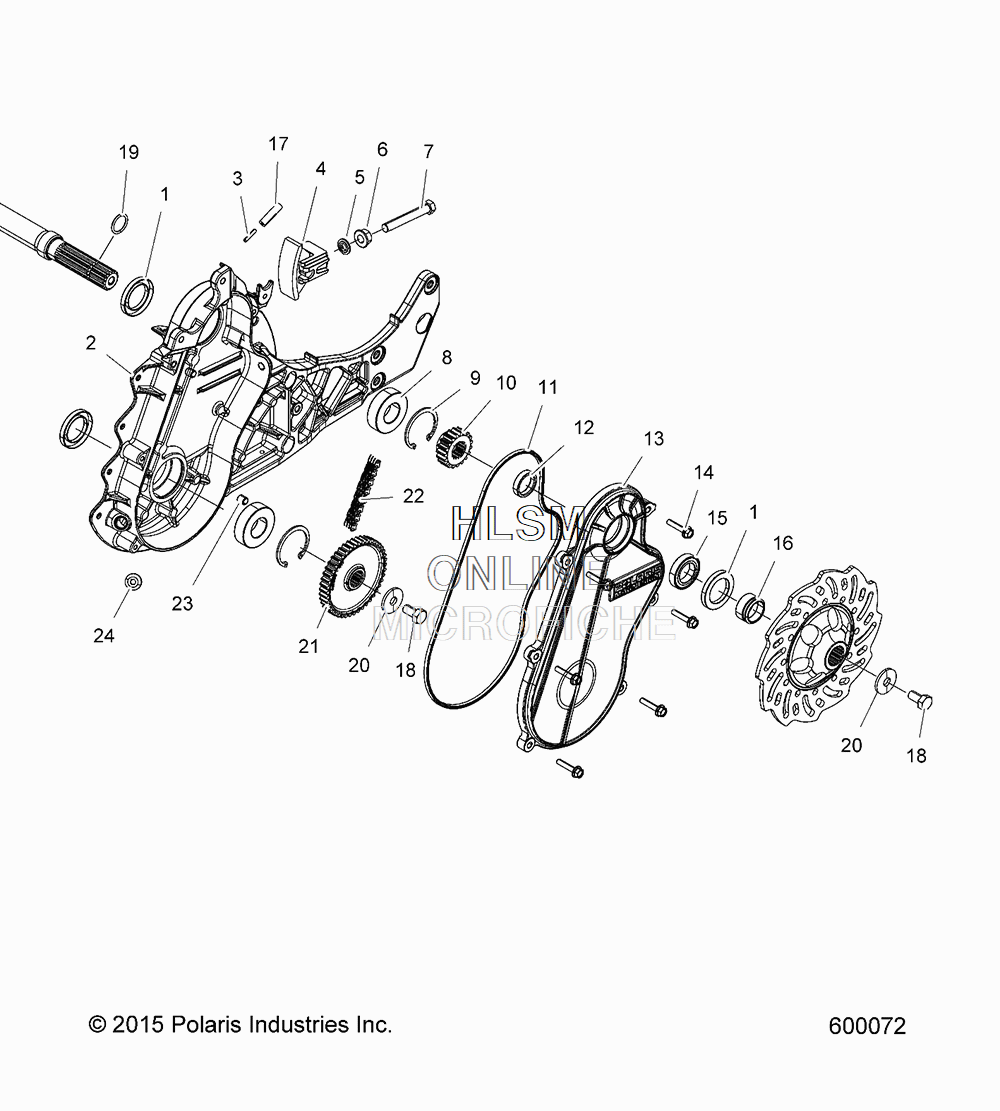

CHAINCASE ASSEMBLY для Polaris 800 AXYS SKS 155 (S18EFS8P) - 2018 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
21333255 ASM. CHAINCASE (INCL. 1, 3, 8, 9, 23)ASM. CHAINCASE (INCL. 1, 3, 8, 9, 23)
-
35334764 TUBE, VENTTUBE, VENT
-
41332427 ASM., TIGHTENER, CHAINASM., TIGHTENER, CHAIN
-
57556340 WASHER, THREAD SEALWASHER, THREAD SEAL
-
67547017 NUT, HEXNUT, HEX
-
77519938 SCREWSCREW
-
83514309 BEARING, BALLBEARING, BALL
-
97718406 RING, RETAININGRING, RETAINING
-
103221096 SPROCKET, 20T, 3/4WSPROCKET, 20T, 3/4W
-
115814070 GASKET, CHAINCASE COVERGASKET, CHAINCASE COVER
-
125137587 SLEEVE, CHAINCASESLEEVE, CHAINCASE
-
131333256 ASM., CHAINCASE COVER (INCL. 1, 15)ASM., CHAINCASE COVER (INCL. 1, 15)
-
147518993 SCREWSCREW
-
153514643 BEARING, BALLBEARING, BALL
-
165140953 SLEEVE-CHAMFERLESSSLEEVE-CHAMFERLESS
-
178450061-600 LINE, OIL, 600 CM, SERVICELINE, OIL, 600 CM, SERVICE
-
187519004 BOLTBOLT
-
195413563 O-RING, 20.30MMX2.62MMO-RING, 20.30MMX2.62MM
-
207556130 WASHER, BELLVILLEWASHER, BELLVILLE
-
213222099 SPROCKET, 40TSPROCKET, 40T
-
223221110 CHAIN, 72P, 3/4WCHAIN, 72P, 3/4W
-
237663007 DOWEL, HOLLOWDOWEL, HOLLOW
-
247052674 PLUG, MAGNETICPLUG, MAGNETIC
