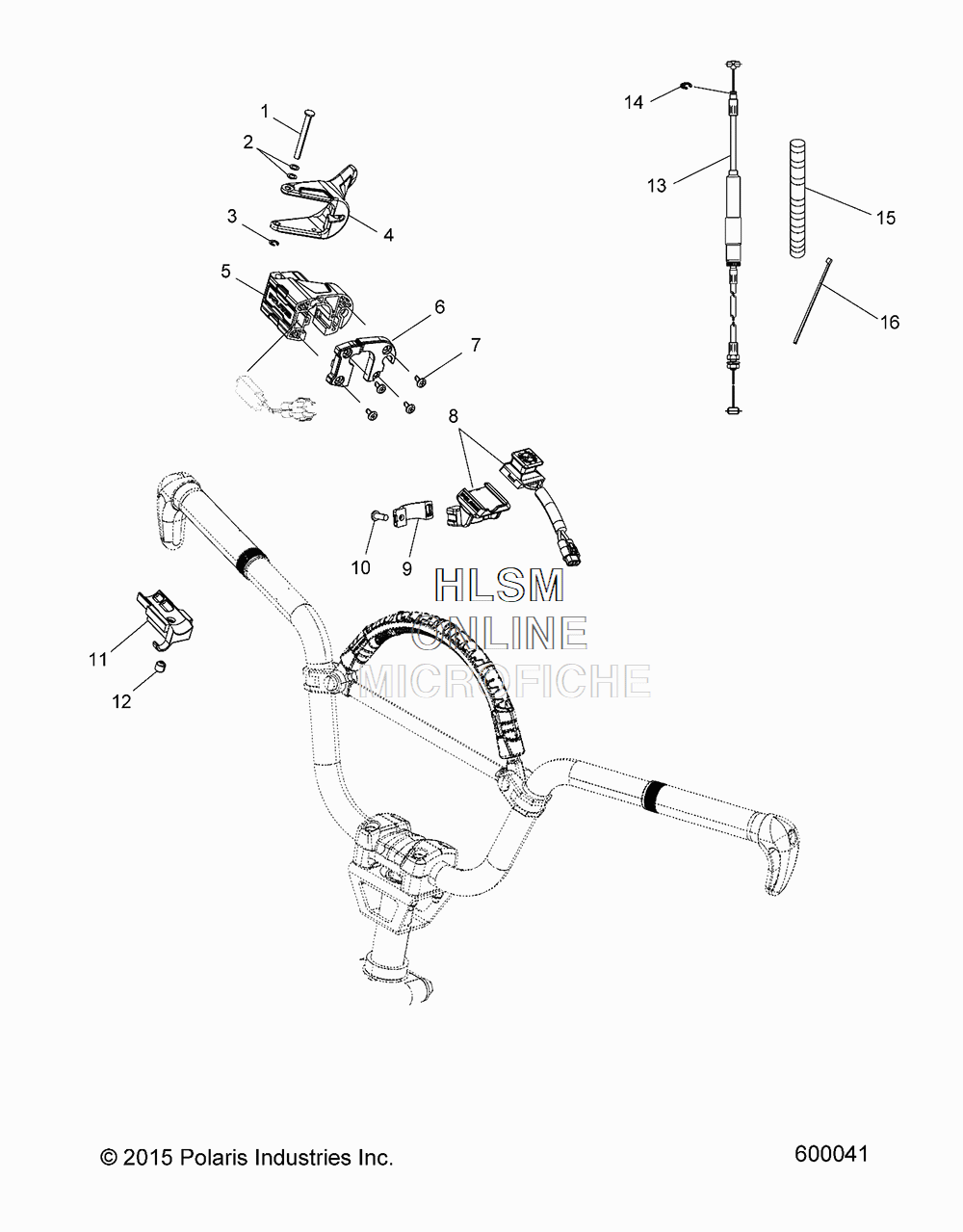

THROTTLE CONTROL ASSEMBLY для Polaris 800 AXYS SKS 155 (S18EFS8P) - 2018 года выпуска
-
№АртикулНазвание
-
17661624 PIN, RETAININGPIN, RETAINING
-
27555730 WASHERWASHER
-
37710401 RING, RETAININGRING, RETAINING
-
42010424 ASM., LEVER W/HEATER, HI/LO, 35.5MMASM., LEVER W/HEATER, HI/LO, 35.5MM
-
55450861 BLOCK, THROTTLE UPPERBLOCK, THROTTLE UPPER
-
65450862 COVER, THROTTLECOVER, THROTTLE
-
77511848 SCREWSCREW
-
82010427 ASM., SWITCH, SHUTOFF, PROT MNT. (INCL. SWITCH AND UPPER MOUNT)ASM., SWITCH, SHUTOFF, PROT MNT. (INCL. SWITCH AND UPPER MOUNT)
-
95439575 MNT., AUX SHUT OFF, LOWERMNT., AUX SHUT OFF, LOWER
-
107512076 SCREWSCREW
-
115450836 BLOCK, THROTTLE LOWERBLOCK, THROTTLE LOWER
-
127519755 SCREW, SETSCREW, SET
-
137082022 CABLE, THROTTLECABLE, THROTTLE
-
147710503 RING, RETAININGRING, RETAINING
-
158360056-38 TUBING, CONVOLUTED, 38CM (SVC)TUBING, CONVOLUTED, 38CM (SVC)
-
167080138 CABLE TIECABLE TIE
