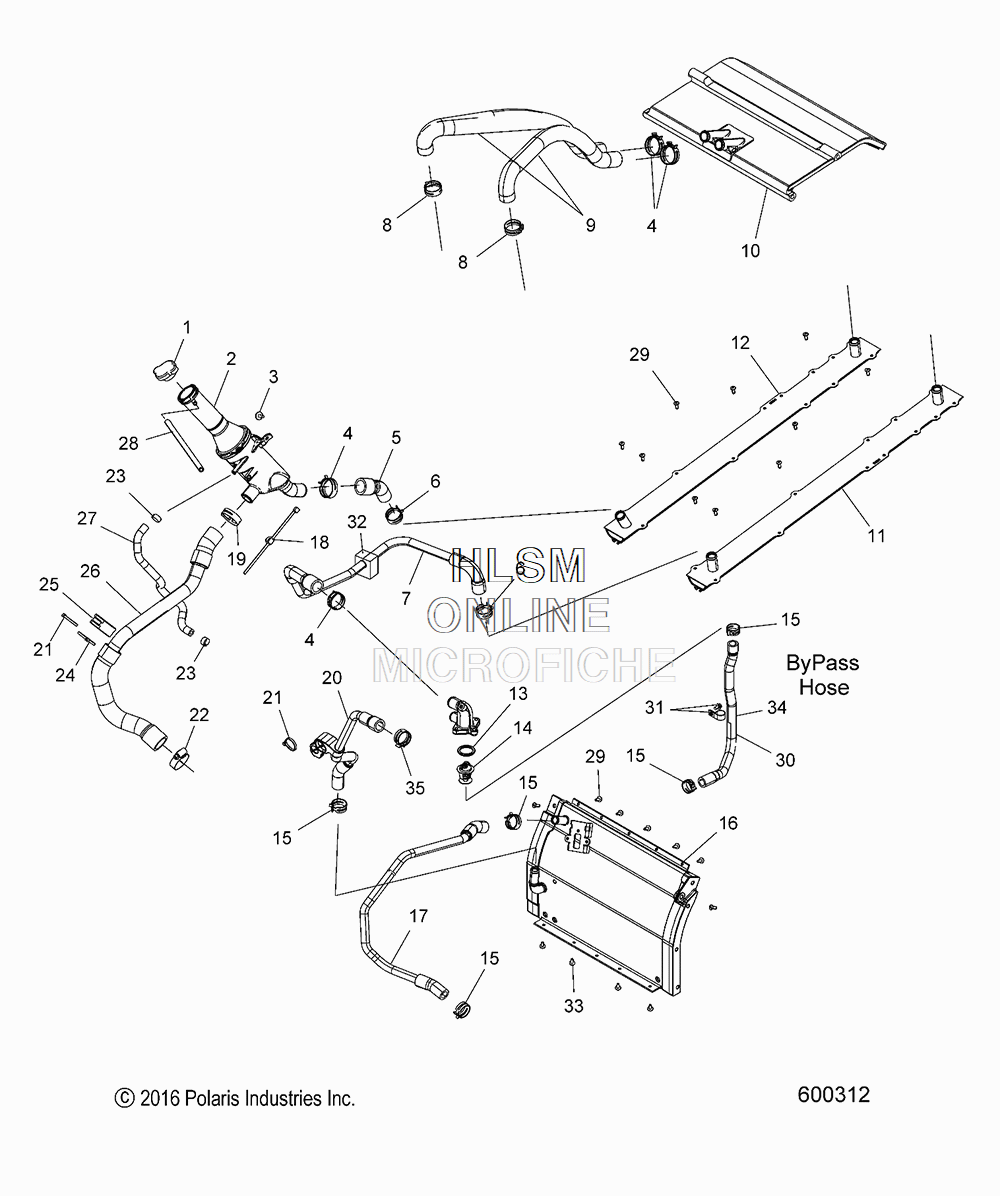

COOLING SYSTEM для Polaris 800 SWITCHBACK PRO-S (S18DDH8PS) - 2018 года выпуска
-
№АртикулНазвание
-
11240300 CAP, PRESSURECAP, PRESSURE
-
22521338 ASM., BOTTLE, COOLANTASM., BOTTLE, COOLANT
-
37621467 RIVETRIVET
-
47080843 SPRINGBAND-CLAMP 32/12, BROWNSPRINGBAND-CLAMP 32/12, BROWN
-
55414911 HOSE, BOTTLE/TUNNEL OUTHOSE, BOTTLE/TUNNEL OUT
-
67081692 CLAMP, HOSECLAMP, HOSE
-
71262492 ASM., HOSE, ENG./COOLERASM., HOSE, ENG./COOLER
-
87080842 SPRINGBAND-CLAMP 29/12, BLACKSPRINGBAND-CLAMP 29/12, BLACK
-
95415814 HOSE, TUNNEL COOLER/MFCHOSE, TUNNEL COOLER/MFC
-
101240735 COOLER, MID FLAPCOOLER, MID FLAP
-
111240727 COOLER, WEAR STRIP, 137, LEFT HANDCOOLER, WEAR STRIP, 137, LEFT HAND
-
121240728 COOLER, WEAR STRIP, 137, RIGHT HANDCOOLER, WEAR STRIP, 137, RIGHT HAND
-
135411521 O-RING, LIP SEALO-RING, LIP SEAL
-
141205407 ASM-THERMOSTATASM-THERMOSTAT
-
157081693 CLAMP, HOSECLAMP, HOSE
-
161240857 ASM., COOLER, BULKHEADASM., COOLER, BULKHEAD
-
171262626 ASM., HOSE, COOLER/ENG. WPASM., HOSE, COOLER/ENG. WP
-
187081496 CLIP, ROUTINGCLIP, ROUTING
-
197080844 CLAMP, HOSECLAMP, HOSE
-
201262686 ASM., HOSE, ENG./CLOSEOFFASM., HOSE, ENG./CLOSEOFF
-
217080138 CABLE TIECABLE TIE
-
227080560 CLAMP, HOSE, 1.750-SSCLAMP, HOSE, 1.750-SS
-
237080534 CLAMP, HOSECLAMP, HOSE
-
247080492 CABLE TIE, 11 INCABLE TIE, 11 IN
-
255415302 SUPPORT, HOSESUPPORT, HOSE
-
261262625 ASM., HOSE, BOTTLE/ENGINEASM., HOSE, BOTTLE/ENGINE
-
275414969 HOSE, TBODY/COOL. BOTTLEHOSE, TBODY/COOL. BOTTLE
-
288450003-1525 HOSE, FUEL,1/4 ID(1525 CM.) (BULK SVC)HOSE, FUEL,1/4 ID(1525 CM.) (BULK SVC)
-
297661973 RIVET-4.8MM DIA-1.5-6.0 GRIPRIVET-4.8MM DIA-1.5-6.0 GRIP
-
301205187 ASM., HOSE, BYPASS, AFS SNOW (INCL. 32,34)ASM., HOSE, BYPASS, AFS SNOW (INCL. 32,34)
-
317082047 CLAMP, RUBBER COATEDCLAMP, RUBBER COATED
-
317517278 SCREWSCREW
-
325814178 FOAM, COOLING HOSEFOAM, COOLING HOSE
-
337661637 RIVETRIVET
-
345521398-16 CONDUIT, FLEX, 16CMCONDUIT, FLEX, 16CM
