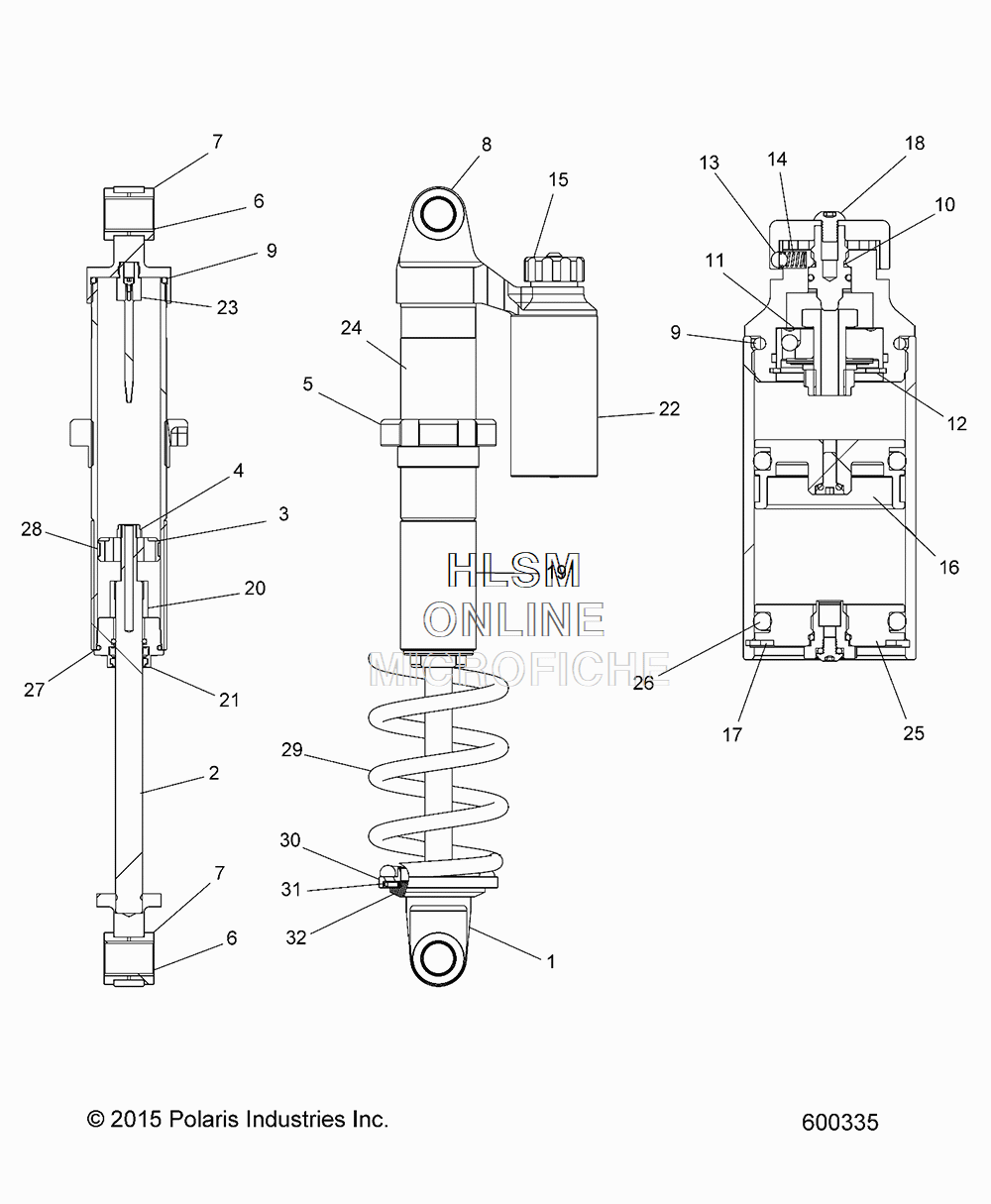

SUSPENSION - REAR SHOCK TRACK (7044566) для Polaris 800 SWITCHBACK PRO-S (S18DDH8PS) - 2018 года выпуска
-
№АртикулНазвание
-
-7044566 SHOCK, RT W/PB, WALKER EVANSSHOCK, RT W/PB, WALKER EVANS
-
11800471 LOOP, SHAFTLOOP, SHAFT
-
21800428 SHAFT, NDLSHAFT, NDL
-
31800001 PISTON, CONVEXPISTON, CONVEX
-
41800031 NUT, 3/8 CRIMPNUT, 3/8 CRIMP
-
51800372 NUT, RT SPRINGNUT, RT SPRING
-
61800405 SLEEVE, 1.15LSLEEVE, 1.15L
-
71800406 BUSHINGBUSHING
-
81800461 LOOP, PIGGYBACKLOOP, PIGGYBACK
-
91800030 O-RINGO-RING
-
101800758 ASM., CLICKER STUDASM., CLICKER STUD
-
111800783 ASM., CLICKER PISTONASM., CLICKER PISTON
-
121800359 SNAP RING, CLICKERSNAP RING, CLICKER
-
131800127 BALL, DETENTBALL, DETENT
-
141800128 SPRING, D-TENTSPRING, D-TENT
-
151800418 KNOB. CLICKER, BLACKKNOB. CLICKER, BLACK
-
161800739 ASM., PISTON, IFPASM., PISTON, IFP
-
171800159 SNAP RINGSNAP RING
-
181800357 SCREW, BTN HDSCREW, BTN HD
-
191800133 WEAR SLEEVEWEAR SLEEVE
-
201800377 SPACER, SHAFTSPACER, SHAFT
-
211800414 ASM., SEAL HEAD, CLRASM., SEAL HEAD, CLR
-
221800419 BODY, RES., 2IN., BLACKBODY, RES., 2IN., BLACK
-
231800770 NEEDLE ASM.NEEDLE ASM.
-
241800771 BODY, RT, W/SLV, BLACKBODY, RT, W/SLV, BLACK
-
251800740 ASM., END CAPASM., END CAP
-
261800184 O-RING 2-324O-RING 2-324
-
271800027 O-RING 2-125O-RING 2-125
-
281800297 WEAR BANDWEAR BAND
-
297044625-133 SPRING, COMP. 11.5, 130#, WHITESPRING, COMP. 11.5, 130#, WHITE
-
297044625-458 SPRING, COMP. 11.5, 130#, BLACK (SNOW CHECK)SPRING, COMP. 11.5, 130#, BLACK (SNOW CHECK)
-
305137541 RETAINER-THRUST BRNG.RETAINER-THRUST BRNG.
-
313514706 BEARING, THRUSTBEARING, THRUST
-
325137540 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
