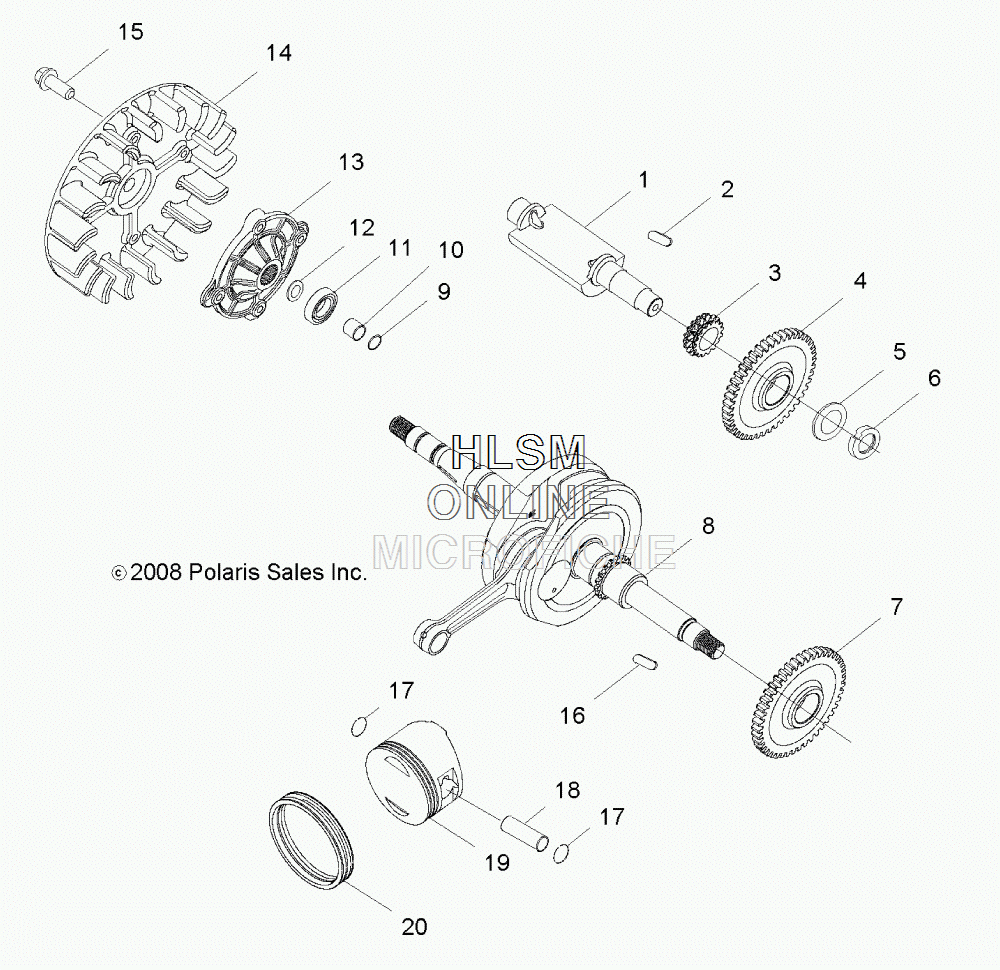

CRANKSHAFT W/ PISTON для Polaris RZR 170 EFI INDY RED [R15YAV17AA] - 2015 года выпуска
-
№АртикулНазвание
-
10454576 SHAFT, BALANCESHAFT, BALANCE
-
20452439 KEY, WOODRUFFKEY, WOODRUFF
-
30452436 SPROCKET, OIL PUMP, DRIVESPROCKET, OIL PUMP, DRIVE
-
40454577 GEAR, BALANCE, DRIVENGEAR, BALANCE, DRIVEN
-
50450264 WASHERWASHER
-
60452438 NUT, LOCKNUT, LOCK
-
70454578 GEAR, BALANCE, DRIVEGEAR, BALANCE, DRIVE
-
80454579 ASM., CRANKSHAFTASM., CRANKSHAFT
-
90454580 O-RINGO-RING
-
100454581 BUSHING, CRANKSHAFTBUSHING, CRANKSHAFT
-
110454582 BEARING, BALLBEARING, BALL
-
120454622 WASHERWASHER
-
130454583 MOUNT, FANMOUNT, FAN
-
140454584 FANFAN
-
150450066 BOLTBOLT
-
160454585 KEY, WOODRUFFKEY, WOODRUFF
-
170454586 C-CLIPC-CLIP
-
180454587 PIN, PISTONPIN, PISTON
-
190454588 PISTONPISTON
-
200454589 RING, SET, PISTONRING, SET, PISTON
