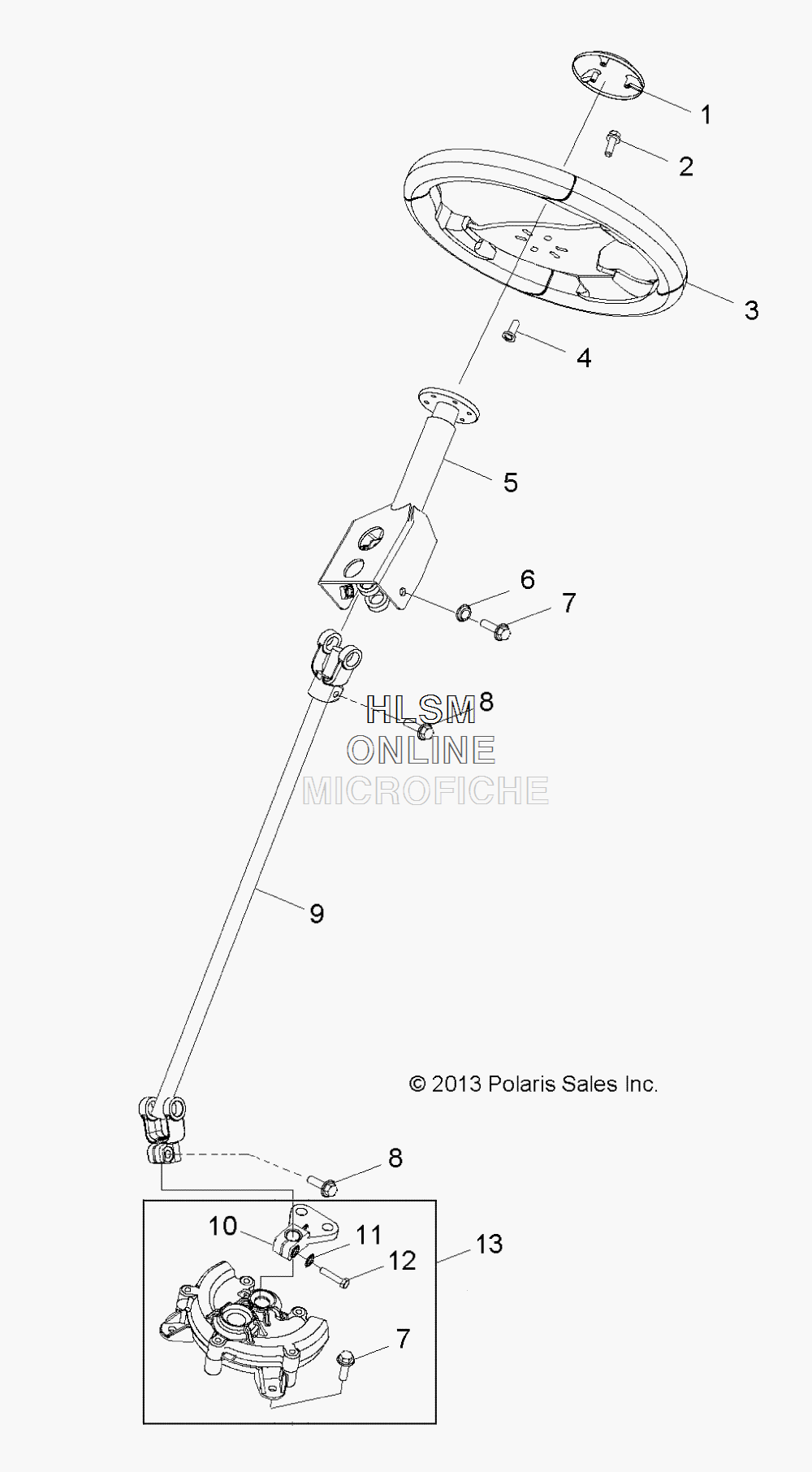

STEERING ASM. для Polaris RZR 170 EFI INDY RED [R15YAV17AA] - 2015 года выпуска
-
№АртикулНазвание
-
10454345 COVER, STEERING WHEELCOVER, STEERING WHEEL
-
20453517 BOLT, FRAMEBOLT, FRAME
-
30454312 WHEEL, STEERINGWHEEL, STEERING
-
40454451 SCREW, TAPPINGSCREW, TAPPING
-
50455047 SHAFT, STEERING, UPPERSHAFT, STEERING, UPPER
-
60454423 WASHERWASHER
-
70454056 BOLT, HITCHBOLT, HITCH
-
80452123 BOLTBOLT
-
90454424 SHAFT, STEERING, LOWERSHAFT, STEERING, LOWER
-
100454872 FROG, STEERINGFROG, STEERING
-
110452325 WASHER, FLATWASHER, FLAT
-
120453355 BOLT, FLANGEBOLT, FLANGE
-
130455048 ASM., GEAR BOX, STEERING (INCL. 7,10-12)ASM., GEAR BOX, STEERING (INCL. 7,10-12)
Все узлы модели:
- AIR INTAKE DUCT
- AIR INTAKE SYSTEM W/CLUTCH
- AXLE - REAR
- BATTERY W/BRACKET
- BRAKE - FRONT CALIPER
- BRAKE - REAR CALIPER
- BRAKE - REAR W/ FOOT PEDAL
- CAB FRAME AND SIDE NETS
- CAM CHAIN TENSIONER
- CLUTCH- PRIMARY
- CLUTCH- SECONDARY
- CONTROL ARMS - FRONT
- COOLING SYSTEM
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD COVER
- CYLINDER HEAD W/ VALVES
- DECALS
- DRIVESHAFT - FRONT
- EXHAUST SYSTEM
- FRAME
- FUEL TANK
- GEAR SELECTOR W/DIFFERENTIAL LOCK
- GEAR SHAFT OUTPUT
- HOOD- BUMPERS- PANELS- FLOOR AND RACK
- MANUAL - OWNERS
- MASTER CYLINDER AND BRAKE LINES
- OIL PUMP
- PARK BRAKE ASM.
- SEATS W/ SEAT BELTS
- SHIFT DRUM
- STARTING MOTOR
- • STEERING ASM.
- SUSPENSION - FRONT SHOCK
- SUSPENSION - REAR SHOCK
- SWING ARM W/DRIVE SHAFT
- THROTTLE BODY
- THROTTLE PEDAL
- TIE RODS
- TRANSMISSION - INTERNALS
- WHEELS - FRONT
- WHEELS - REAR
