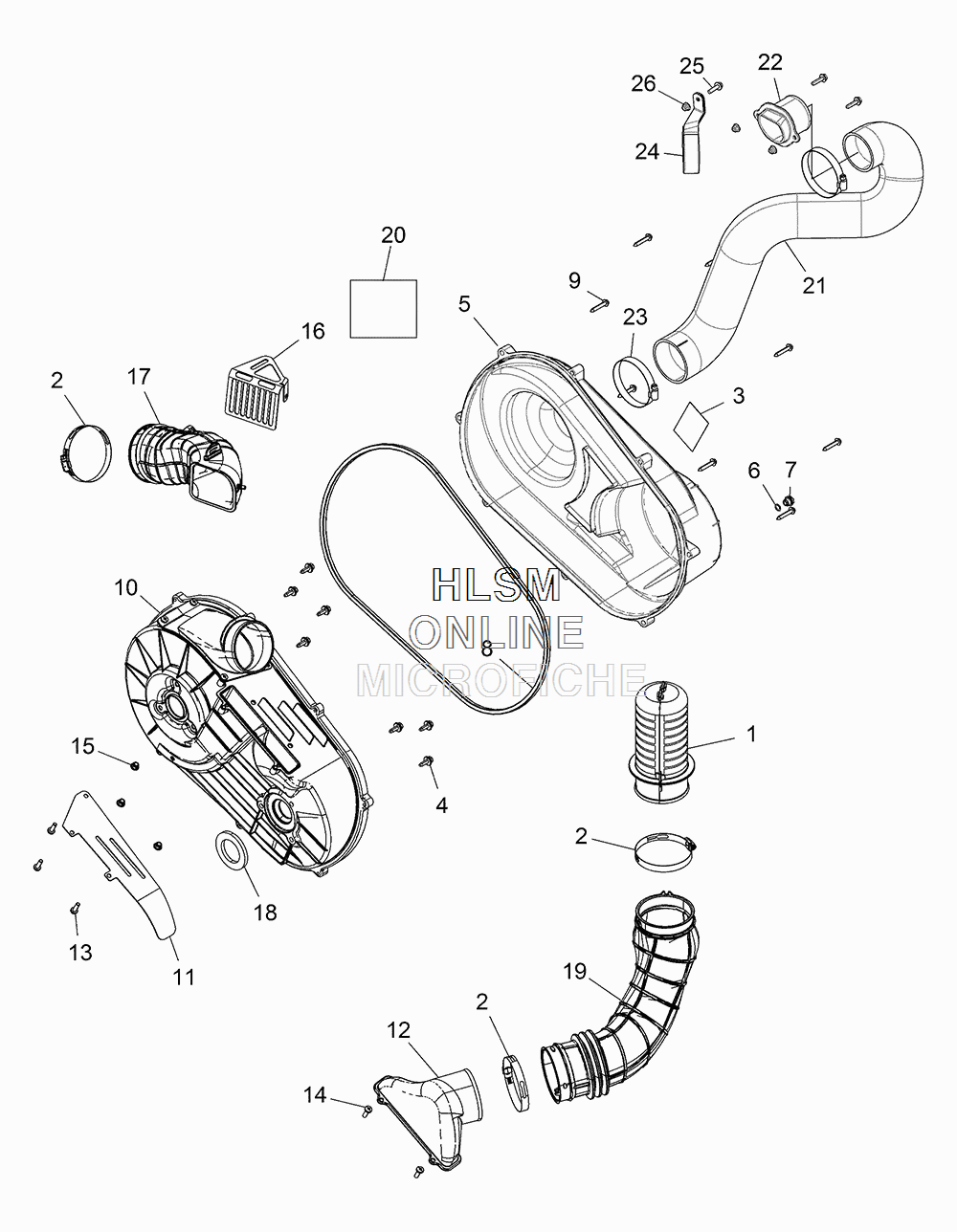

CLUTCH COVER AND DUCTING для Polaris RZR XP 4 900 EPS VOODOO BLUE [Z15VCE87AV] - 2015 года выпуска
-
№АртикулНазвание
-
12635411 ASM., INTAKE, CLUTCH DUCTASM., INTAKE, CLUTCH DUCT
-
27081969 CLAMP, HOSE SLOTTED, 89-100 DIACLAMP, HOSE SLOTTED, 89-100 DIA
-
37177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
47519278 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
52635611 ASM., COVER, CLUTCH, OUTER (INCL. 6,7)ASM., COVER, CLUTCH, OUTER (INCL. 6,7)
-
65410542 O-RINGO-RING
-
75434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
85521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
97519330 SCREWSCREW
-
102634863 ASM., COVER, CLUTCH, INNER (INCL. 11-15)ASM., COVER, CLUTCH, INNER (INCL. 11-15)
-
115256223 BRACKET, GUARD, CLUTCH COVERBRACKET, GUARD, CLUTCH COVER
-
125450051 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
137518546 SCREWSCREW
-
147519205 SCREWSCREW
-
157547453 NUT, NYLOKNUT, NYLOK
-
165256732 BRACKET, SCREEN, BELTBRACKET, SCREEN, BELT
-
175451061 HOSE, CLUTCH, AIR OUTLETHOSE, CLUTCH, AIR OUTLET
-
185813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
195451062 HOSE, CLUTCH, AIR INLETHOSE, CLUTCH, AIR INLET
-
207182087 DECAL, INTAKE DUCTDECAL, INTAKE DUCT
-
215415488 HOSE-CLUTCH INTAKE,SPHOSE-CLUTCH INTAKE,SP
-
225451776 BOOT-PLASTIC,INTAKEBOOT-PLASTIC,INTAKE
-
237080907 CLAMP-HOSE,3.75,SSCLAMP-HOSE,3.75,SS
-
247082088 CLAMP-P,LARGECLAMP-P,LARGE
-
257518533 BOLT-M6X1.0X25,HXHD,FLG, BLACKBOLT-M6X1.0X25,HXHD,FLG, BLACK
-
267547339 NUT-M6X1.0,FLG-NYLOC-OLIVE DNUT-M6X1.0,FLG-NYLOC-OLIVE D
