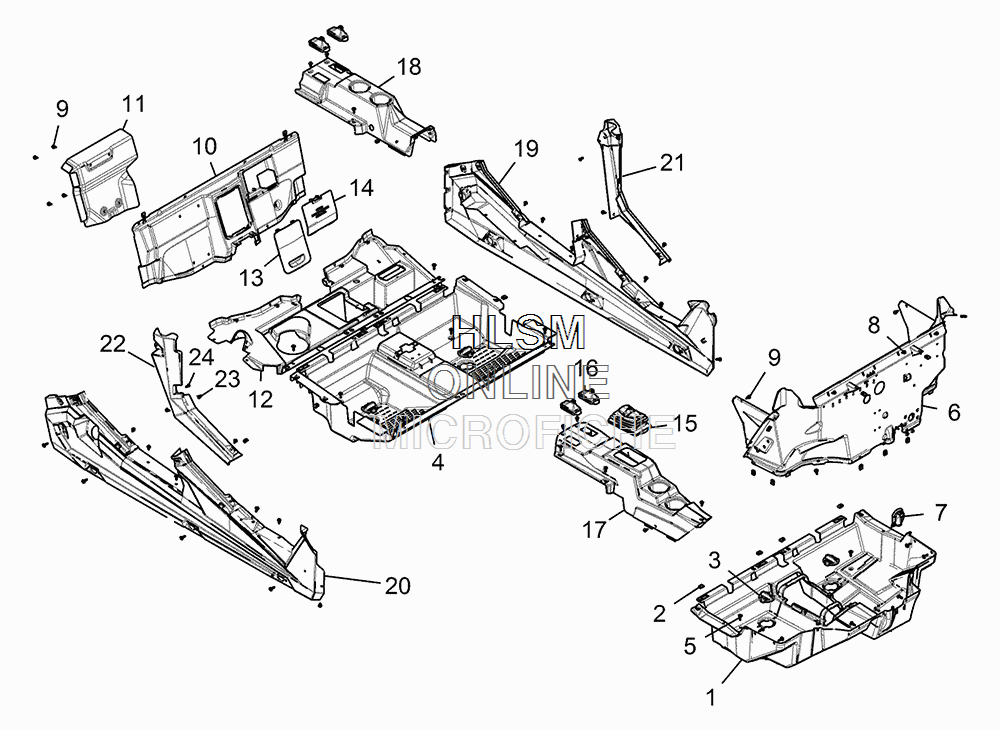

FLOOR AND ROCKER PANELS для Polaris RZR XP 4 900 EPS VOODOO BLUE [Z15VCE87AV] - 2015 года выпуска
-
№АртикулНазвание
-
12635388-070 ASM-FLOOR,MAIN, BLACK (INCL QTY 8 OF 2)ASM-FLOOR,MAIN, BLACK (INCL QTY 8 OF 2)
-
27547674 NUT-M6-1.0,U-TYPE (2.5-3.8)NUT-M6-1.0,U-TYPE (2.5-3.8)
-
35414694 PLUG-DRAIN,FLOORPLUG-DRAIN,FLOOR
-
45450891-070 FLOOR-REAR,MP, BLACKFLOOR-REAR,MP, BLACK
-
57519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
62635358-070 ASM-FIREWALL,MAIN, BLACK (INCL QTY 11 OF 2)ASM-FIREWALL,MAIN, BLACK (INCL QTY 11 OF 2)
-
75415042 BOOT-STEERINGBOOT-STEERING
-
87518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
-
97661855 RIVET-TUFLOK,.315-.325X.787RIVET-TUFLOK,.315-.325X.787
-
102635464-070 ASM-REAR CLOSEOFF,UPR, BLACK (INCL QTY 4 OF 9,11)ASM-REAR CLOSEOFF,UPR, BLACK (INCL QTY 4 OF 9,11)
-
115813955 SHIELD-FOIL,FRONT PANELSHIELD-FOIL,FRONT PANEL
-
125439770-070 PANEL-REAR CLOSEOFF,LWR, BLACKPANEL-REAR CLOSEOFF,LWR, BLACK
-
135439787-070 PANEL-ACCESS,ENGINE, BLACKPANEL-ACCESS,ENGINE, BLACK
-
145450383 COVER-ECUCOVER-ECU
-
155414651 BOOT-SHIFTERBOOT-SHIFTER
-
165450254-070 BOOT-SEAT BELT, BLACKBOOT-SEAT BELT, BLACK
-
175450887-070 CONSOLE-FRT,MP, BLACKCONSOLE-FRT,MP, BLACK
-
185450888-070 CONSOLE-REAR,MP, BLACKCONSOLE-REAR,MP, BLACK
-
195451560-070 ROCKER-LH, BLACKROCKER-LH, BLACK
-
205451561-070 ROCKER-RH, BLACKROCKER-RH, BLACK
-
212635254-649 ASM-CVR-B-PLR,PNT,CLIP,LH,HV.R (VOODOO BLUE) (INCL QTY 2 OF 23)ASM-CVR-B-PLR,PNT,CLIP,LH,HV.R (VOODOO BLUE) (INCL QTY 2 OF 23)
-
222635255-649 ASM-CVR-B-PLR,PNT,CLIP,RH,HV.R (VOODOO BLUE) (INCL QTY 2 OF 23)ASM-CVR-B-PLR,PNT,CLIP,RH,HV.R (VOODOO BLUE) (INCL QTY 2 OF 23)
-
237519806 CLIP-DASH,TRIM, METALCLIP-DASH,TRIM, METAL
-
247519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBKSCR-TX TRUSS-#14X3/4,HI/LO ZBK
