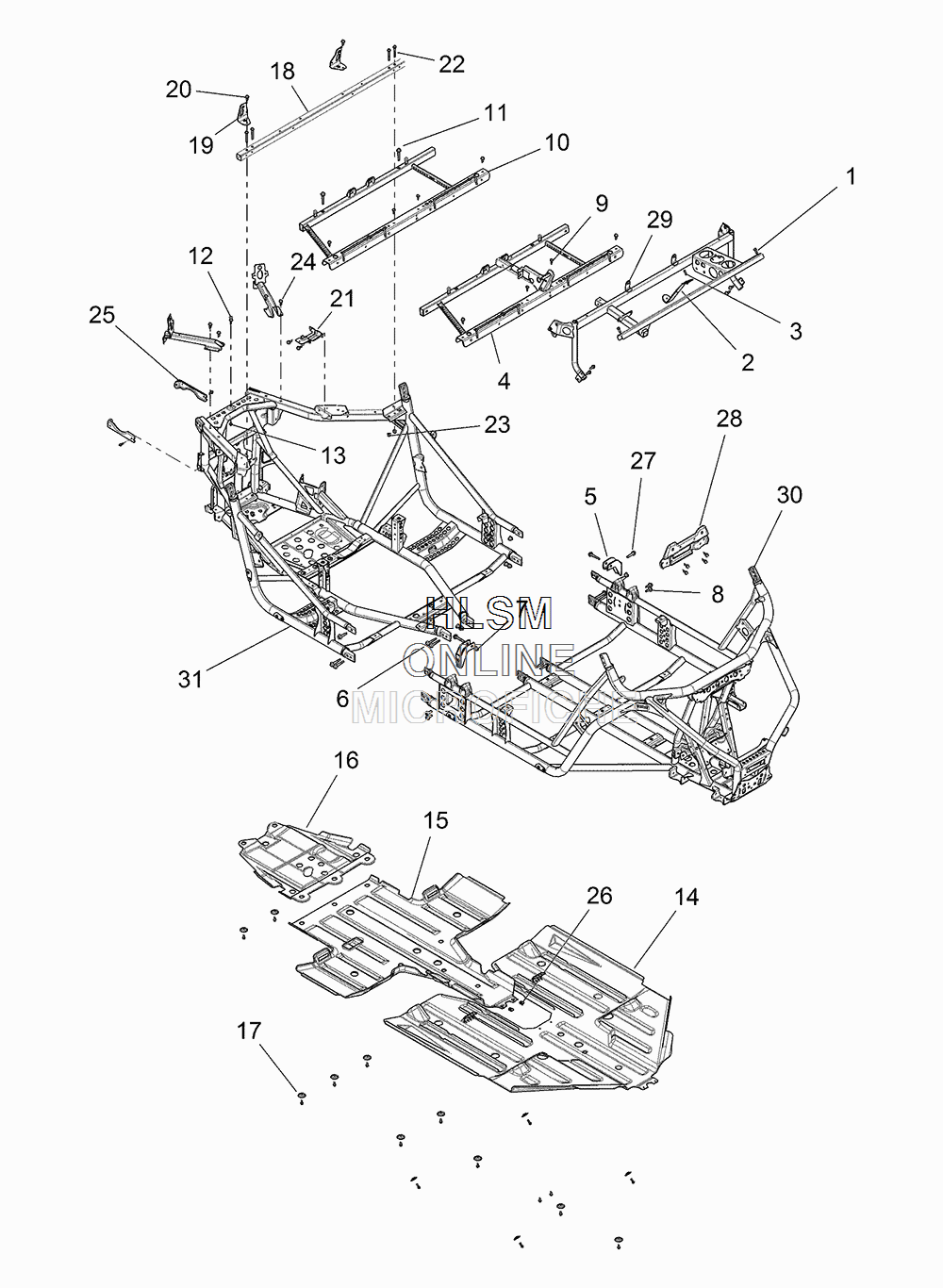

FRAME-MAIN W/ SKID PLATE для Polaris RZR 4 900 EPS BLUE FIRE [Z16VCE87AB] - 2016 года выпуска
-
№АртикулНазвание
-
17518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
-
25257304-329 BRKT-DIN MNT, BLACKBRKT-DIN MNT, BLACK
-
37518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
41020572-329 WELD-SEAT BASE,MP, BLACKWELD-SEAT BASE,MP, BLACK
-
55258097-329 BRKT-SEAT SUPPORT,FRT,MP, BLACKBRKT-SEAT SUPPORT,FRT,MP, BLACK
-
67519285 SCR-HXFL-M10X1.25X55 10.9 ZODSCR-HXFL-M10X1.25X55 10.9 ZOD
-
77547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
-
87518934 SCR-M10X1.5X25-8.8 HFS ZODSCR-M10X1.5X25-8.8 HFS ZOD
-
97519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
101019777-329 WELD-SEAT BASE,REAR, BLACKWELD-SEAT BASE,REAR, BLACK
-
117518474 BOLT-M10X1.5X55,HX HD FLGBOLT-M10X1.5X55,HX HD FLG
-
125139009 PLUNGER-BOX LATCHPLUNGER-BOX LATCH
-
137547339 NUT-M6X1.0,FLG-NYLOC-OLIVE DNUT-M6X1.0,FLG-NYLOC-OLIVE D
-
145451895-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
155439771-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
165450706-070 PLATE-SKID,REAR, BLACKPLATE-SKID,REAR, BLACK
-
177556065 WASHER-SKID PLATEWASHER-SKID PLATE
-
181021506-329 ASM-TUBE,TOP FRAME,E-COATASM-TUBE,TOP FRAME,E-COAT
-
195259103-458 TIEDOWN,FRONT,LH,M.BLACKTIEDOWN,FRONT,LH,M.BLACK
-
205259104-458 TIEDOWN,FRONT,RH,M.BLACKTIEDOWN,FRONT,RH,M.BLACK
-
215259105-329 MOUNT,COIL,E-COATMOUNT,COIL,E-COAT
-
227517281 SCR-M8X1.25X55,HX/FL-YSCR-M8X1.25X55,HX/FL-Y
-
237547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
241020506-458 WELD-MOUNT,BODY,M.BLACKWELD-MOUNT,BODY,M.BLACK
-
255259106 BRKT-FACIABRKT-FACIA
-
267547674 NUT-M6-1.0,U-TYPE (2.5-3.8)NUT-M6-1.0,U-TYPE (2.5-3.8)
-
277519332 SCR-HXFL-M10X1.25X40 8.8 ZODSCR-HXFL-M10X1.25X40 8.8 ZOD
-
285259449-458 BRKT-SUSP MNT,FRT,M.BLACKBRKT-SUSP MNT,FRT,M.BLACK
-
291020984-329 WELD-DASH,E-COAT BLACKWELD-DASH,E-COAT BLACK
-
301021322-458 WELD-MAINFRAME,FRT,MP, BLACKWELD-MAINFRAME,FRT,MP, BLACK
-
311021627-458 WELD-MAINFRAME,REAR, BLACKWELD-MAINFRAME,REAR, BLACK
