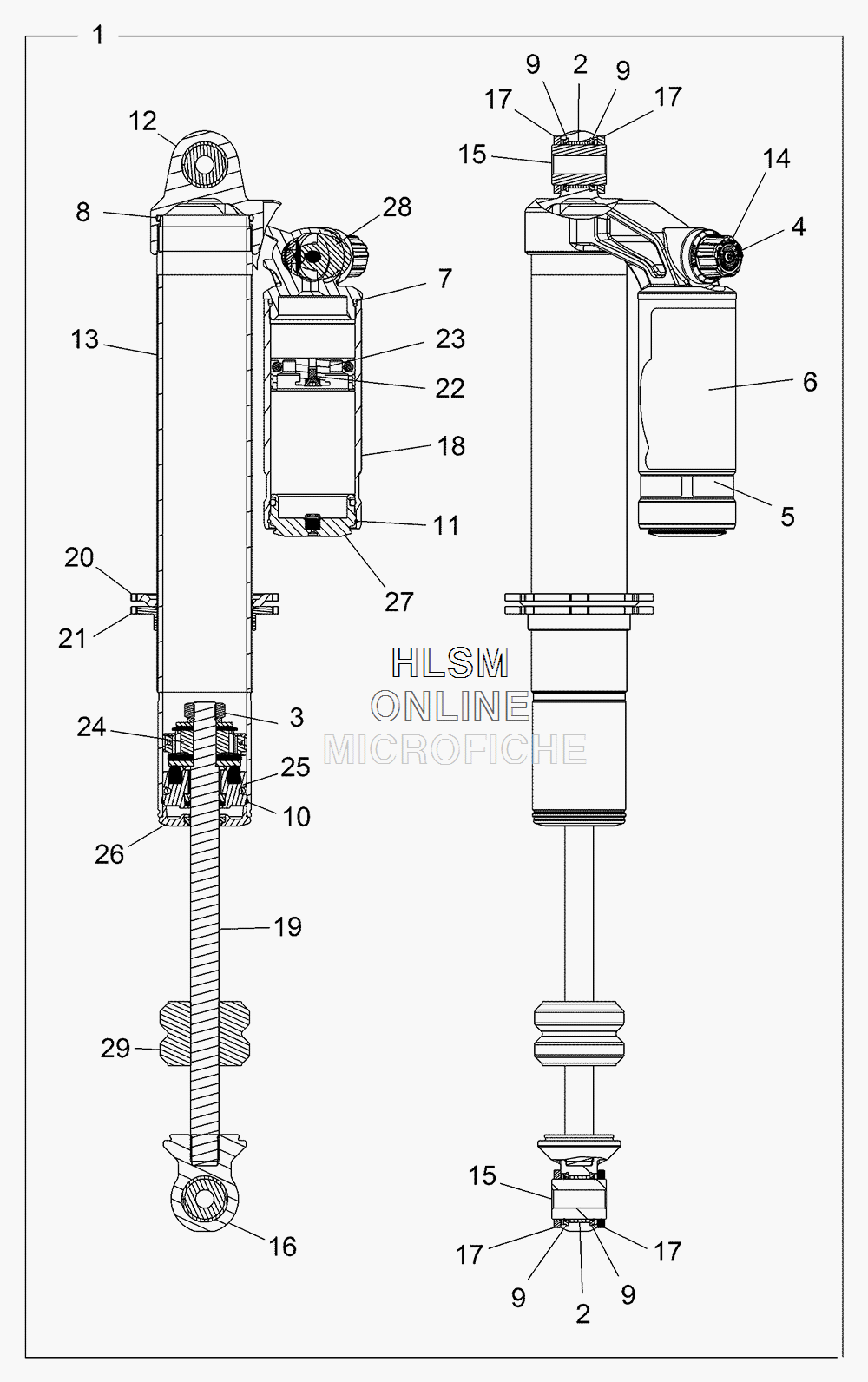

FRONT SHOCK - DISASSEMBLED для Polaris RZR 4 900 EPS BLUE FIRE [Z16VCE87AB] - 2016 года выпуска
-
№АртикулНазвание
-
17043893 SHOCK, FRONT, PIGGYBACK, LEFT HAND (INCL. ALL)SHOCK, FRONT, PIGGYBACK, LEFT HAND (INCL. ALL)
-
17044145 SHOCK, FRONT, PIGGYBACK, RIGHT HAND (INCL. ALL)SHOCK, FRONT, PIGGYBACK, RIGHT HAND (INCL. ALL)
-
11500516 BOTTOM OUTBOTTOM OUT
-
21501010 BUSHING, EYELETBUSHING, EYELET
-
31500871 NUT, CONTROL LOCKNUT, CONTROL LOCK
-
41501011 SCREWSCREW
-
51501012 DECAL, PERFORMANCE SERIESDECAL, PERFORMANCE SERIES
-
61501013 DECAL, RESERVOIRDECAL, RESERVOIR
-
71500623 O-RINGO-RING
-
81500510 O-RINGO-RING
-
91501014 SEAL, WEATHERSEAL, WEATHER
-
101500236 RING, RETAININGRING, RETAINING
-
111501015 RING, RETAININGRING, RETAINING
-
121501029 BODY, CAP, PIGGY BACK (USE WITH 7043893)BODY, CAP, PIGGY BACK (USE WITH 7043893)
-
121501030 BODY, CAP, PIGGY BACK (USE WITH 7044145)BODY, CAP, PIGGY BACK (USE WITH 7044145)
-
131501031 BODYBODY
-
141501019 KNOB, LOW SPEEDKNOB, LOW SPEED
-
151501087 SLEAVESLEAVE
-
161501032 EYELET, SHAFTEYELET, SHAFT
-
171501088 SPACER, EYELETSPACER, EYELET
-
181501023 RESERVOIRRESERVOIR
-
191501033 SHAFTSHAFT
-
201500872 RING, PRELOADED, BACKRING, PRELOADED, BACK
-
211500873 RING, PRELOADRING, PRELOAD
-
221500161 SCREW, W/O-RINGSCREW, W/O-RING
-
231501026 ASM., PISTON, FLOATASM., PISTON, FLOAT
-
241500870 PISTONPISTON
-
251500940 ASM., BEARINGASM., BEARING
-
261500835 ASM., BEARING, CAPASM., BEARING, CAP
-
271501027 ASM., END CAPASM., END CAP
-
281501034 ASM., DAMPING, ADJUSTER LSCASM., DAMPING, ADJUSTER LSC
-
291501028 BUMPER, BLACKBUMPER, BLACK
