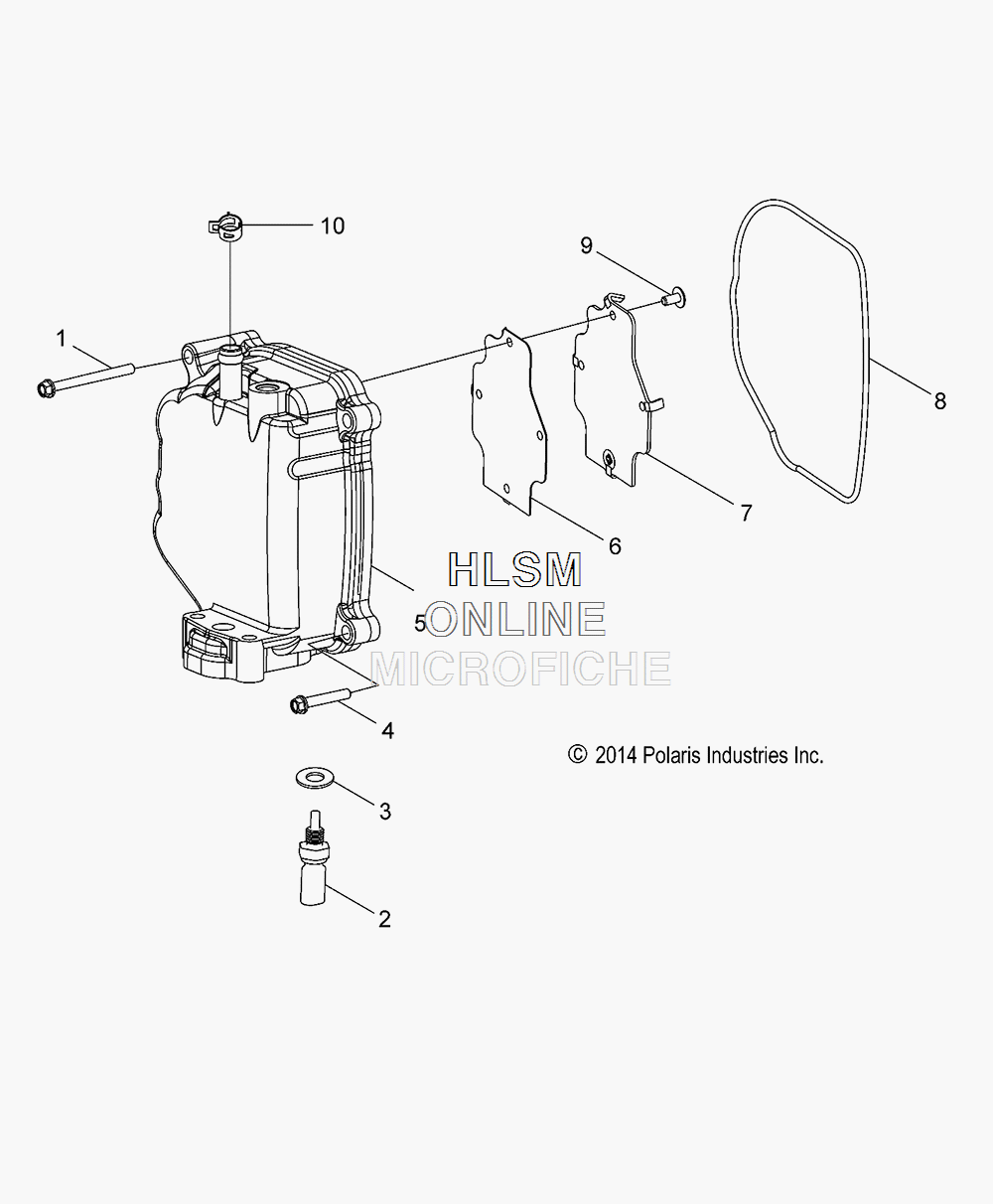

CYLINDER HEAD COVER для Polaris RZR 170 EFI (VOODOO BLUE) [Z17YAV17A5/N5] - 2017 года выпуска
-
№АртикулНазвание
-
10452343 BOLT, FLANGEBOLT, FLANGE
-
20455053 SENSOR, ENGINE COOLANTSENSOR, ENGINE COOLANT
-
30455054 WASHERWASHER
-
40452400 BOLT, FLANGEBOLT, FLANGE
-
50455055 COVER, CYLINER HEADCOVER, CYLINER HEAD
-
60454640 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
70454641 BREATHER, CRANKCASE, LOWERBREATHER, CRANKCASE, LOWER
-
80454363 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
90451766 SCREW, TAPPING, 4MMSCREW, TAPPING, 4MM
-
100453300 CLAMPCLAMP
Все узлы модели:
- AIR DUCTS
- AIR INTAKE SYSTEM
- BRAKE - FOOT
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- CAB FRAME AND SIDE BARS
- CAM CHAIN AND TENSIONER
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- COOLING SYSTEM
- CRANKCASE
- CRANKCASE COVER - LEFT
- CRANKCASE COVER - RIGHT
- CRANKSHAFT W/ CYLINDER
- CYLINDER
- CYLINDER HEAD
- • CYLINDER HEAD COVER
- DECALS
- DRIVE TRAIN - DRIVE SHAFT
- ELECTRICAL COMPONENTS
- EXHAUST SYSTEM
- FRAME
- FUEL TANK W/ RESERVE
- GEAR SELECTOR
- GEAR SHAFT OUTPUT
- GEARSHIFT - DRUM
- HOOD AND FRONT BODY WORK W/ RACK
- MANUAL - OWNERS
- OIL PUMP
- PARK BRAKE ASSY.
- SEAT MOUNTING AND BELTS
- SHOCK ABSORBER - FRONT
- SHOCK ABSORBER - REAR
- STARTING MOTOR
- STEERING POST
- STEERING POST W/ TIE RODS
- SUSPENSION - FRONT CONTROL ARMS
- SWING ARM W/ REAR AXLE
- THROTTLE BODY
- THROTTLE CONTROL ASSY W/ CABLE
- TRANSMISSION - DRIVE CHAIN
- WHEEL - FRONT
- WHEEL - REAR
